INSTALLATION
STEP 3 DRILL HOLES
TOOLS REQUIRED:
1. Cordless or electric drill or screw gun
2. 3/8" drill bit
3. Tape measure
PARTS REQUIRED:
A. None

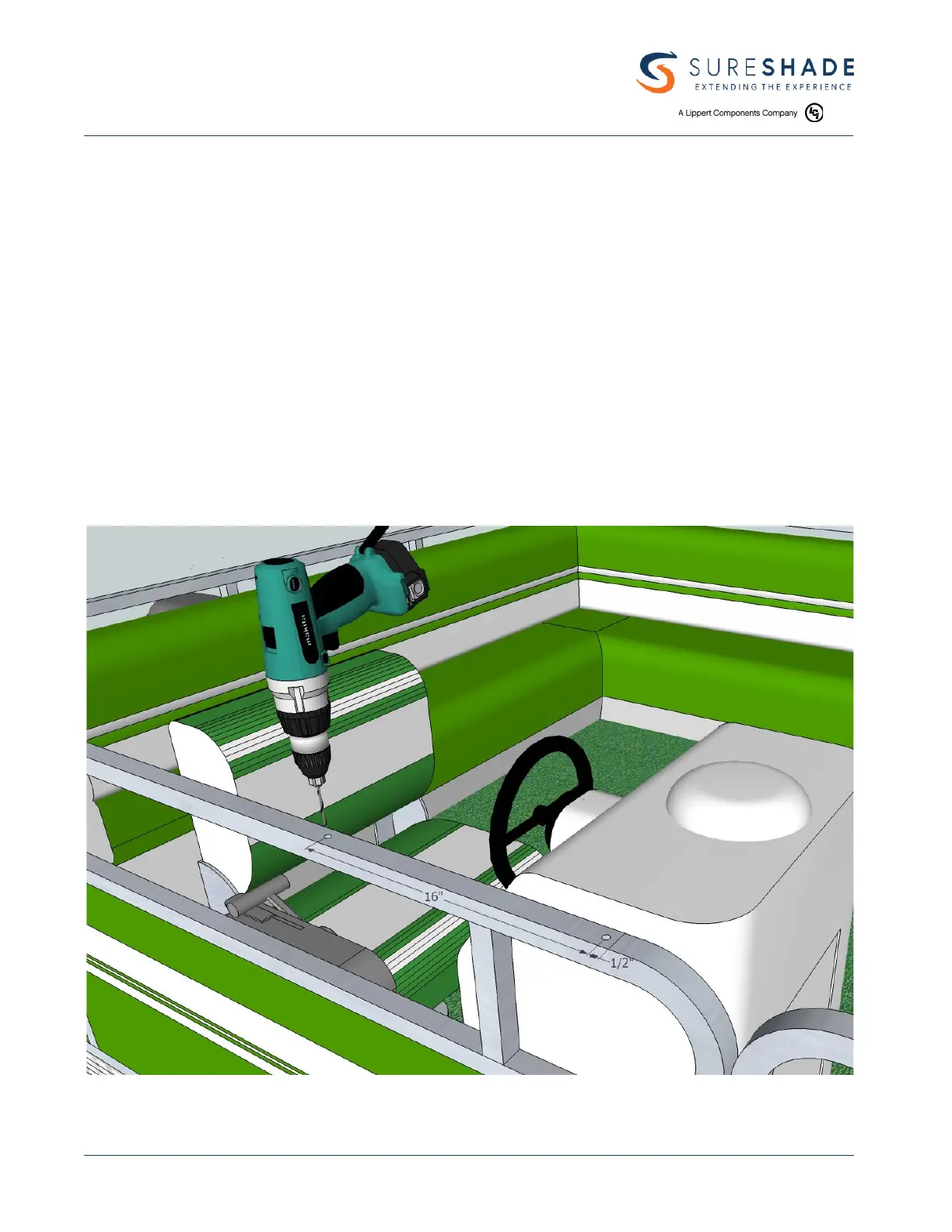

Put a tape measure on the pencil line made in the previous step. Measure back 1/2" and 16-1/2"
and make marks. Use a drill with a 3/8" bit to drill both holes in the center of the frame.
These holes need to go all of the way through the rear frame tube.
Caution: Some boats have wire run through this tube, drill half way and make sure you are clear of any wires.
