INSTALLATION
STEP 10 FINAL STRUT
TOOLS REQUIRED:
1. 5/32" hex wrench
PARTS REQUIRED:
A. Front struts
B. Center bow
C. 1/4" hex cap screws

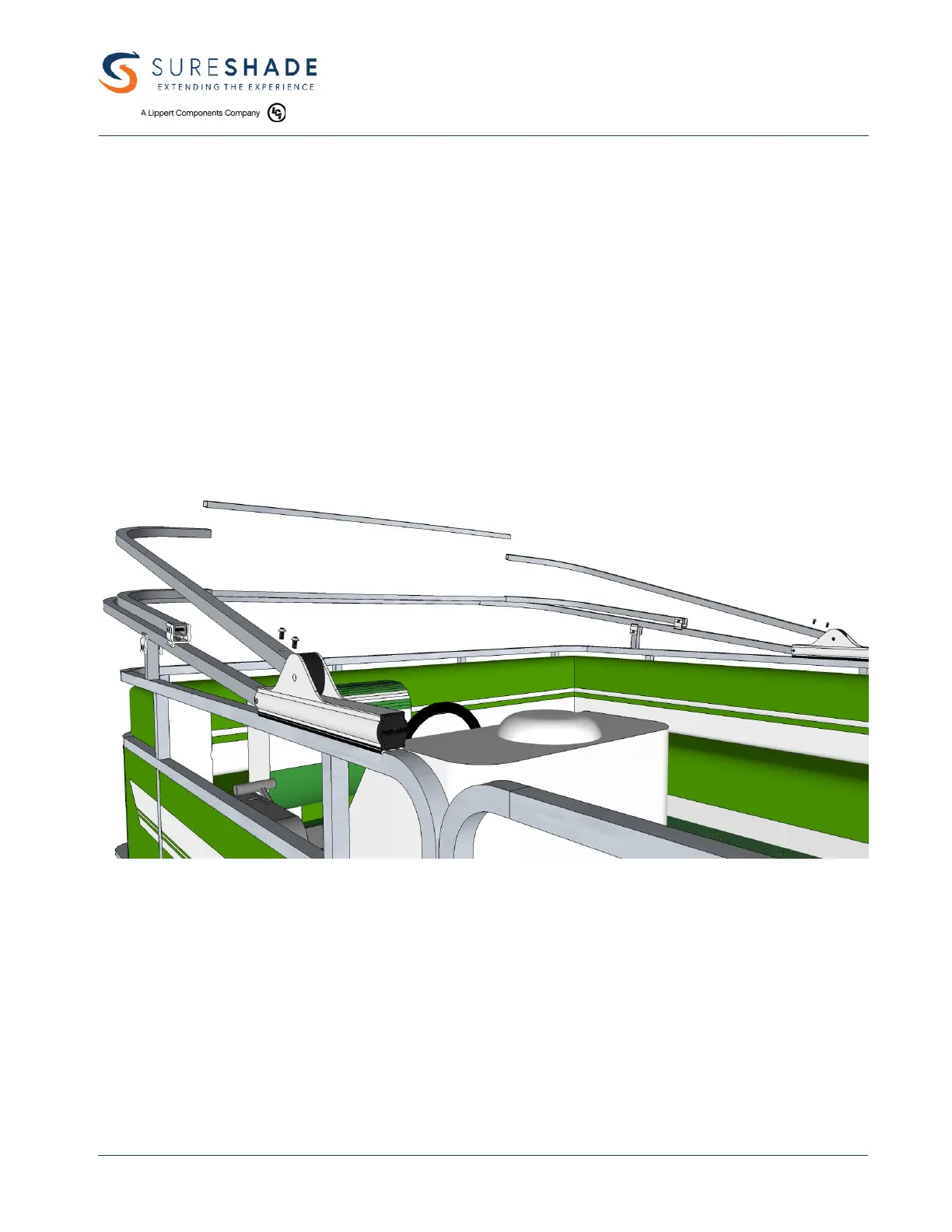

Slide the rst front strut (A1) over actuator receiver handle. Insert center bow (B). Insert second front strut (A2)
over center bow (B) and then over actuator receiver handle. Secure both front struts using 1/4" hex cap screws
(C), tighten with 5/32" hex wrench.
A1
A2
B
C
C
CAUTION: Do not power actuators to the full open position without canvas installed. Damage may occur.
