Suyncll AMD005284 - Assembly Steps (Continued); Step 3 (Continued): Nozzle Attachment; Step 4: High Pressure Hose to Gun Connection; Step 5: High Pressure Hose to Unit Connection

9

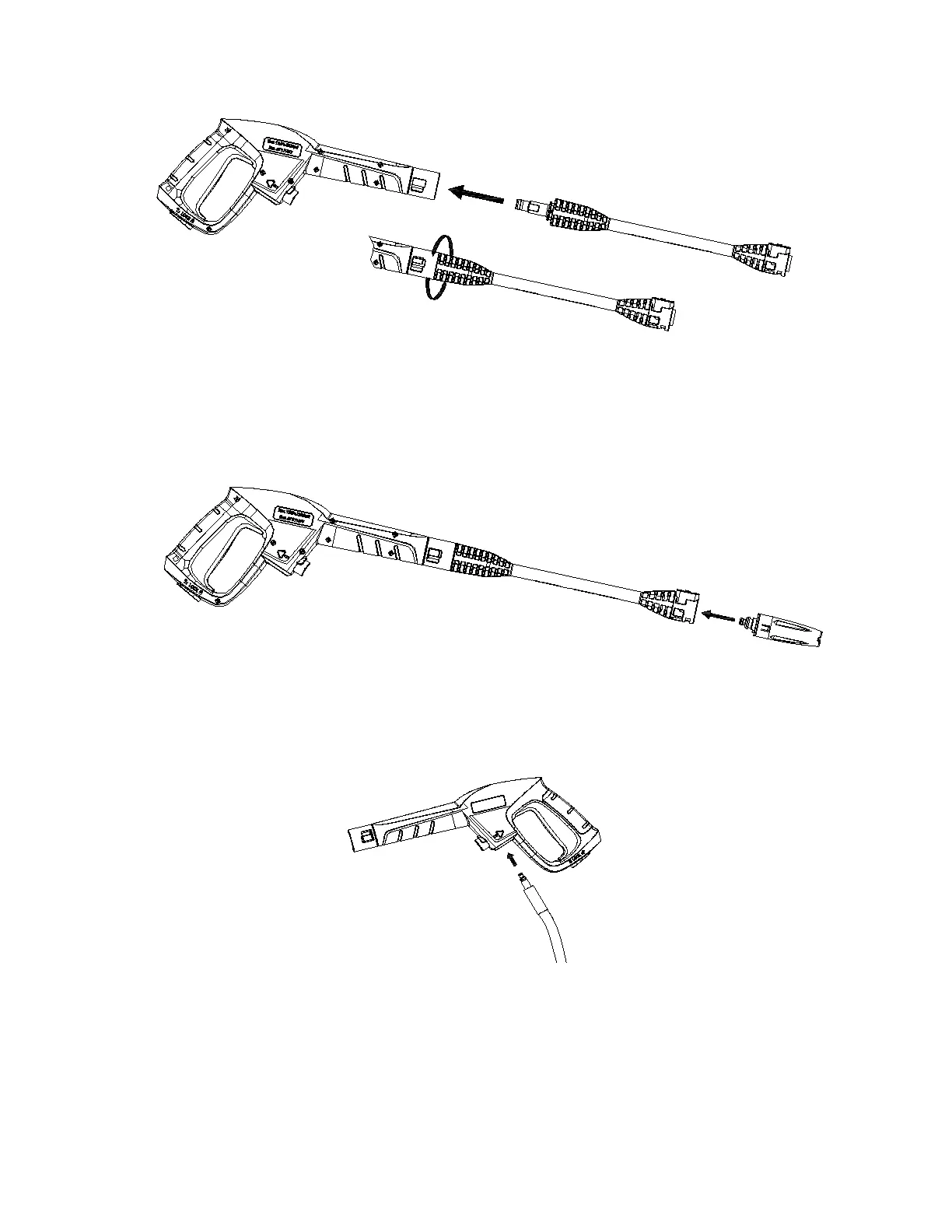

B，Insert the spray adjustable nozzle(D) into the extension wand(K) , as quick-connect type , you
just need push it onto extension wand(K) directly and powerful until hand tight to lock it in place.
When the pieces are joined properly, you cannot separate the two components by pulling straight
out on the extension wand(K) . Insert the Turbo nozzle in the same manner, depending upon
which attachment is best suited to the surface you are cleaning. Only one attachment can be
inserted into the.extension wand(K) at a time. All attachments must be inserted into the
extension wand(K) for proper use.
Step 4
Attach the high pressure hose(C) to the gun(J). Insert and quick-connect it tight to avoid
leakage.When the pieces are joined properly, you cannot separate the two components by pulling
straight out from the gun(J). Push the hose lock button, then you can pull out high pressure
washer.
Step 5
Attach the high pressure hose(C) to the pressure cleaner water outlet. Insert and quick-connect it
tight to avoid leakage.When the pieces are joined properly, you cannot separate the two
components by pulling straight out from the water outlet. Push the “Button” according to the
direction of arrow, then you can pull out the high pressure hose.
