YH4
GRAND
VITARA

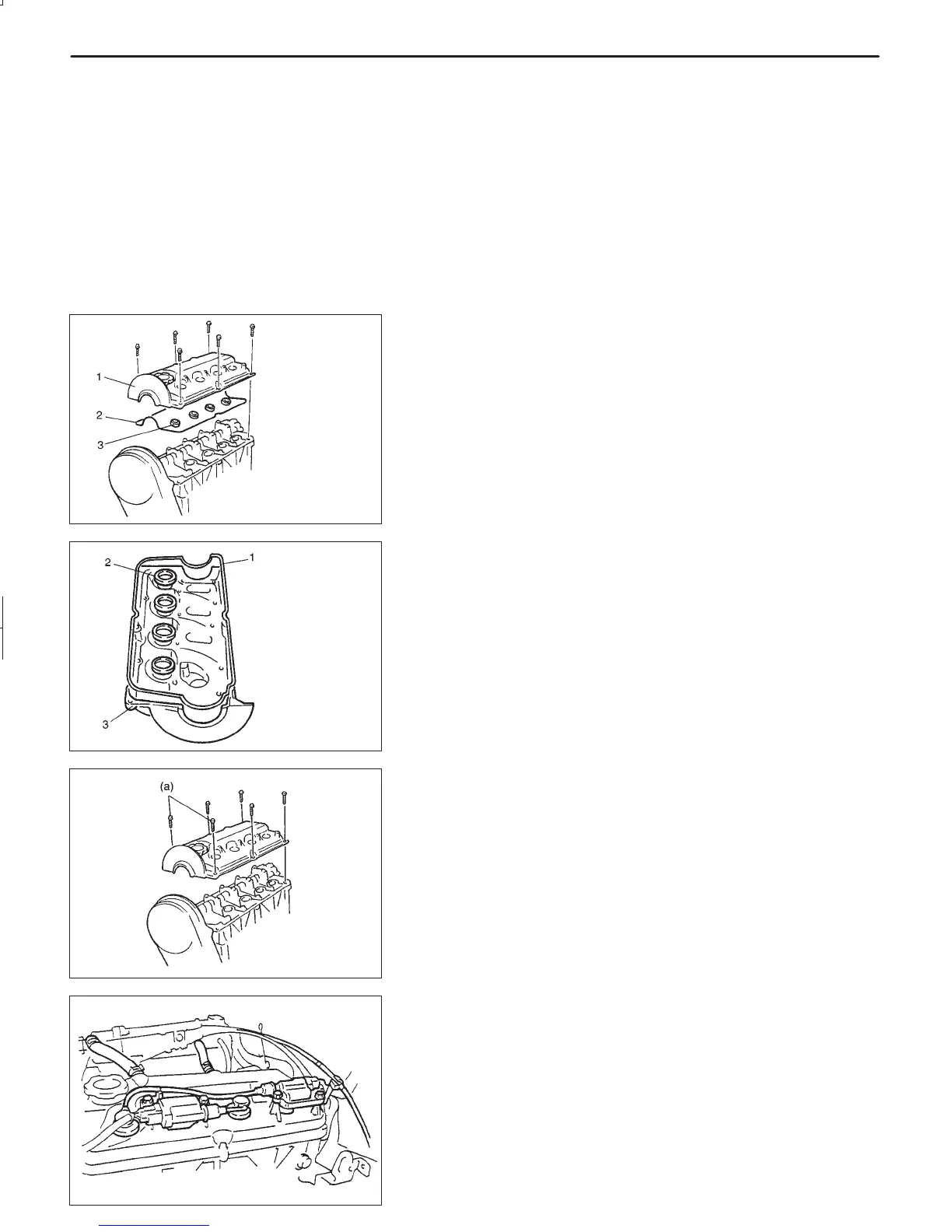

1. Cylinder head
cover
2. Cylinder head
cover gasket
3. O-rings
1 Cylinder head
cover gasket
2. O-rings
3. Cylinder head
cover
6A1-12 ENGINE MECHANICAL (G16 ENGINE)
CYLINDER HEAD COVER
REMOVAL
1) Disconnect negative cable at battery.
2) Remove ignition coil assemblies with high-tension cord.
3) Disconnect PCV valve and breather hose from head cover.
4) Detach accelerator cable from clamp.
5) Remove cylinder head cover with cylinder head cover gasket
and O-rings.
INSTALLATION
1) Install O-rings and cylinder head cover gasket to cylinder head
cover.
NOTE:
Be sure to check each of these parts for deterioration or any
damage before installation and replace if found defective.
2) Install cylinder head cover to cylinder head and tighten cover
bolts to specified torque.
Tightening Torque
(a): 11 N
.
m (1.1 kg-m, 8.0 lb-ft)
NOTE:
When installing cylinder head cover, use care so that cylin-
der head cover gasket or O-rings will not get out of place or
fall off.
3) Fix accelerator cable with clamp.
4) Install ignition coil assemblies with high-tension cord.
5) Connect PCV valve and breather hose to head cover.
6) Connect negative cable at battery.
To Next Page
