YH4
GRAND
VITARA

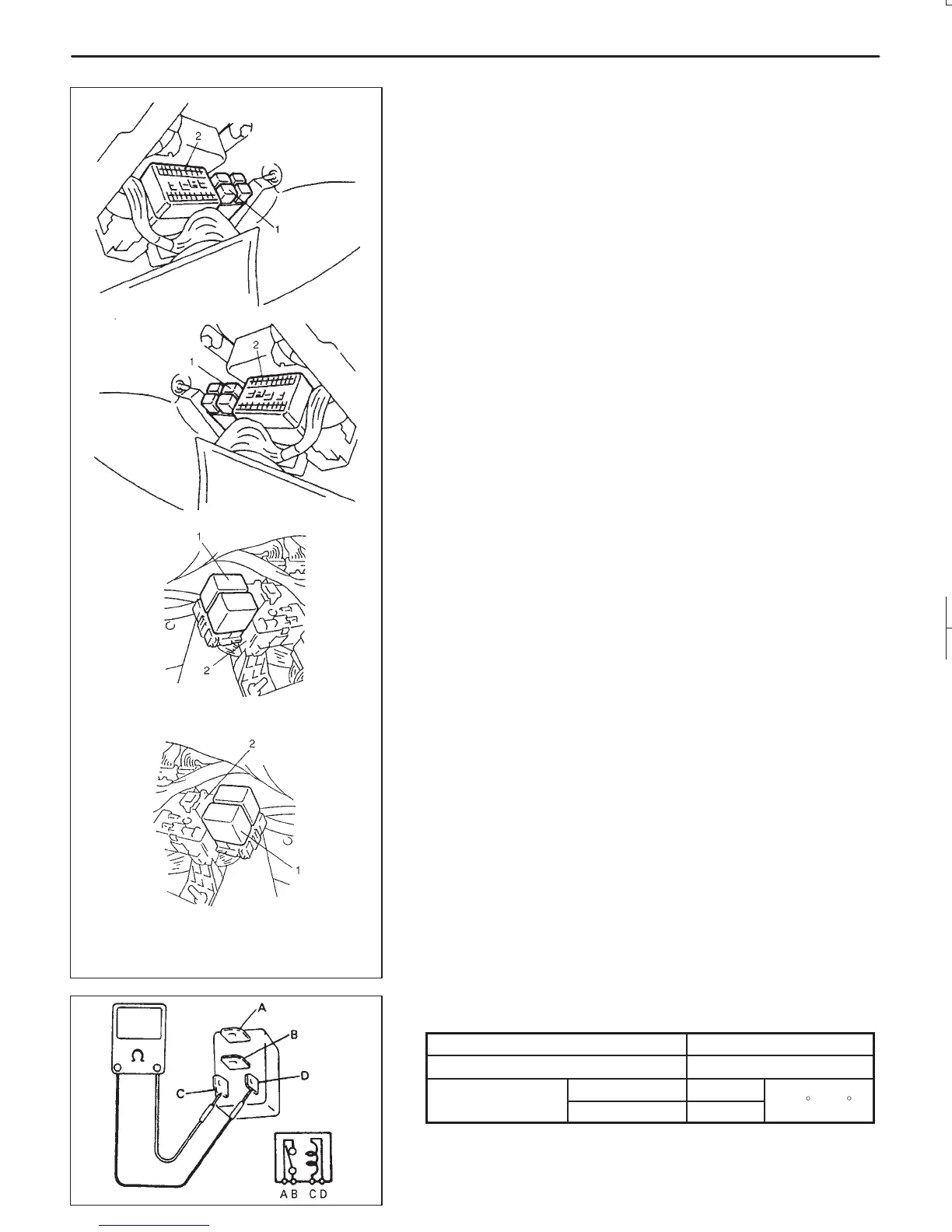

1. Main relay
2. Junction (Fuse) box
[A-1]: Left-hand steering hard top model
[A-2]: Right-hand steering hard top model
[B-1]: Left-hand steering canvas top model
[B-2]: Right-hand steering canvas top model
[A-1]
[A-2]
[B-1]
[B-2]
ENGINE AND EMISSION CONTROL SYSTEM (G16/J20 ENGINE) 6E1-43
MAIN RELAY
Inspection
1) Disconnect negative cable at battery.
2) Remove main relay (1) from connector.
3) Check resistance between each two terminals as in table below.
TERMINALS RESISTANCE
Between A and B 8 (Infinity)
CANVAS TOP 79 – 95
e
ween
an
HARD TOP 70 – 110
a
,
If check results are as specified, proceed to next operation
check. If not, replace.
