YH4
GRAND
VITARA

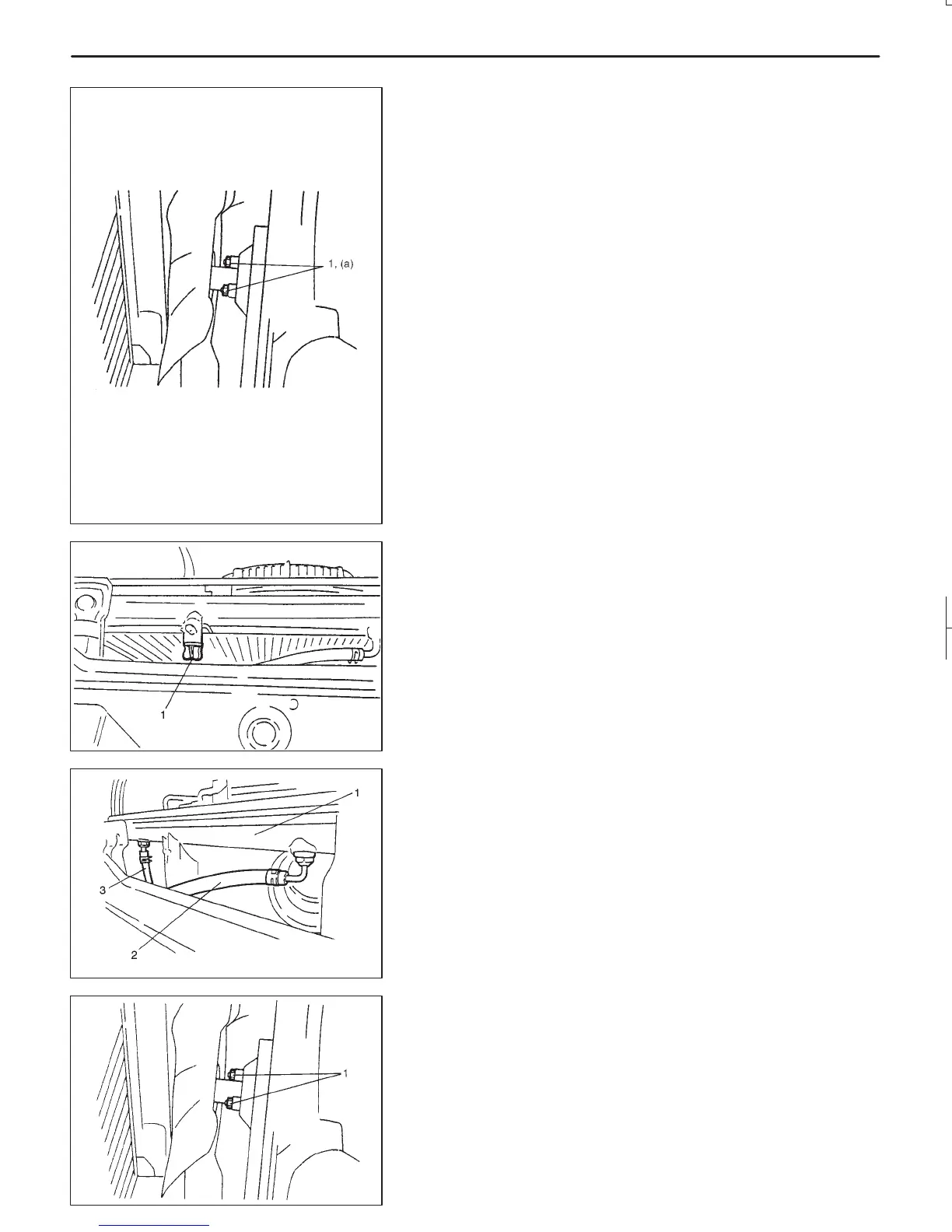

ENGINE COOLING 6B-17
1. Cooling fan/
clutch nut
1. Radiator
2. Inlet hose (Outlet from oil cooler)
3. Outlet hose (Inlet to oil cooler)
INSTALLATION
Install removed parts in reverse order of removal procedure.
After installation, adjust belt tension for specification and tighten
each bolt and nut securely.
Tightening Torque
Cooling fan/dutch nut (G16 engine) (a):
11 N
.
m (1.1 kg-m, 8.0 lb-ft)
Cooling fan/dutch nut (H25 and J20 engines) (a):
25 N
.
m (2.5 kg-m, 18.0 lb-ft)
Refill cooling system with proper coolant referring to “COOLANT”
and steps 8) to 10) of “COOLING SYSTEM FLUSH AND REFILL”
in this section.
After installation, check each joint for leakage.
RADIATOR
REMOVAL
1) Disconnect negative (–) cable at battery.
2) Drain cooling system by loosening drain plug (1) of radiator.
3) When servicing A/T vehicle, place oil pan under radiator (1) and
disconnect A/T fluid hoses (2), (3) from radiator.
4) Loosen cooling fan/clutch nuts (1).
5) Disconnect radiator inlet hose from radiator.
To Next Page
