YH4
GRAND
VITARA

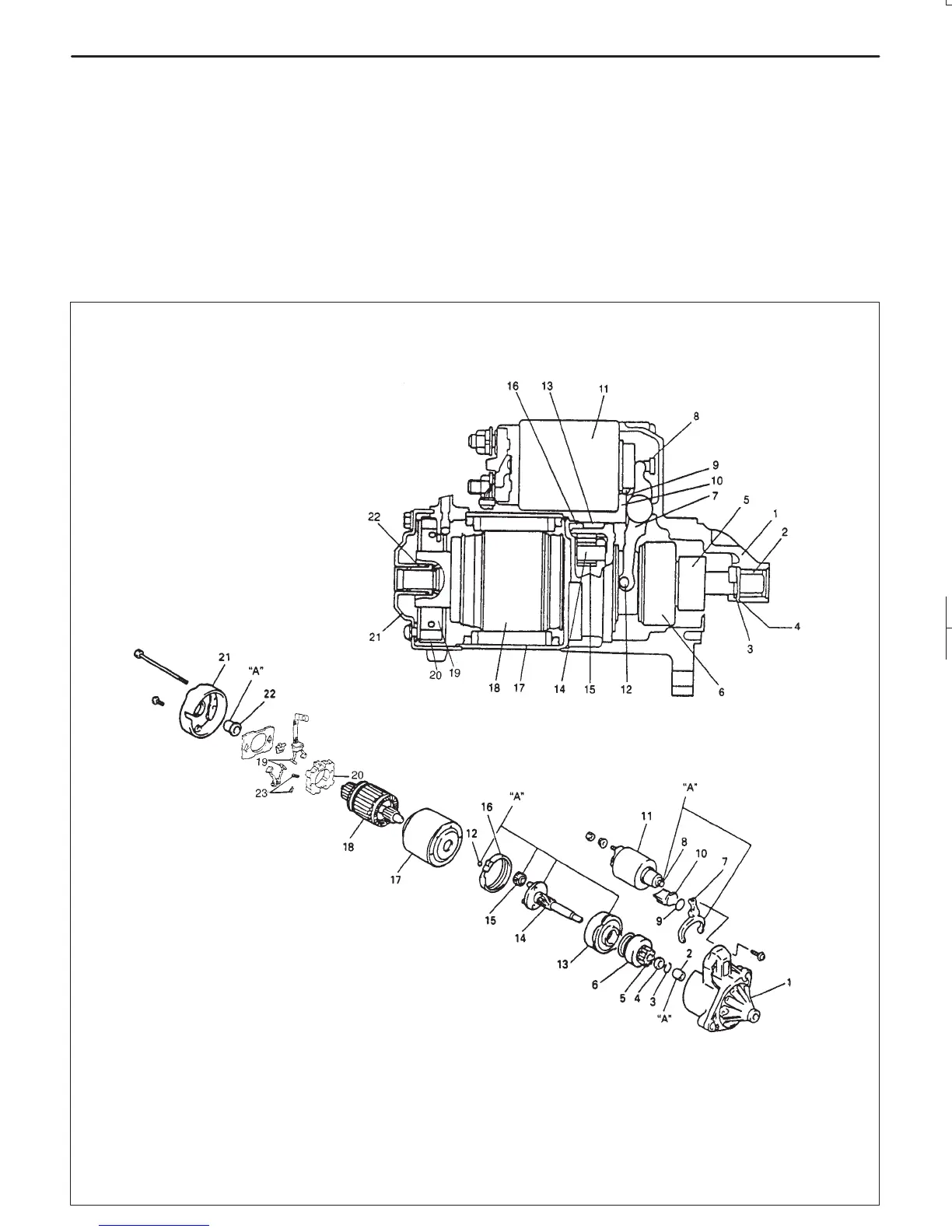

1. Front housing
2. Bush
3. Snap ring
4. Pinion stop ring
5. Pinion gear
6. Over-running clutch
7. Lever
8. Plunger
9. Plate
10. Seal rubber
11. Magnetic switch
12. Ball
13. Internal gear
14. Planetary carrier shaft
15. Planetary gear
16. Packing
17. Yoke
18. Armature
19. Brush
20. Brush holder
21. Rear bracket
22. Rear bush
23. Brush spring
“A”: Apply grease (99000-25010)
CRANKING SYSTEM 6G-3
STARTING MOTOR
The starting motor consists of parts shown in below and has permanent magnets mounted in starting motor yoke
(frame).
The magnetic switch assembly and parts in the starting motor are enclosed in the housings so that they will be
protected against possible dirt and water splash.
NOTE:
Make sure to apply grease before assembly where so indicated “A” in the figure below.
Spare parts have been lubricated.
