IGNITION SYSTEM (FOR J20/H25 ENGINES) 6F2-11
CMP SENSOR
CAUTION:
Disassembly is prohibited. If anything faulty is found, re-
place as an assembly unit.

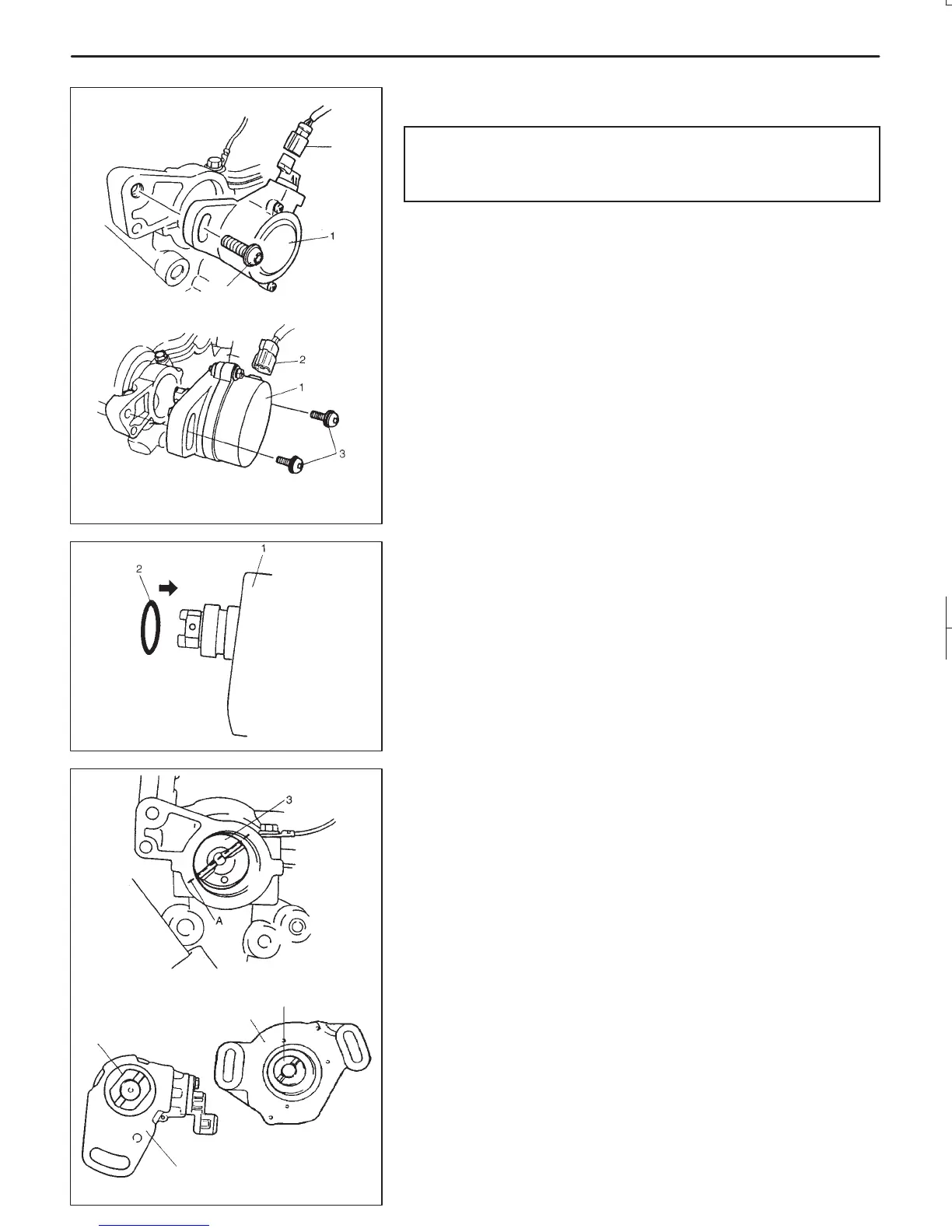

REMOVAL
1) Disconnect CMP sensor coupler.
2) Remove CMP sensor by removing bolt(s).
INSTALLATION
NOTE:
After installing CMP sensor, adjust ignition timing. (Refer to
“Ignition Timing Check And Adjustment” in this section.)
1) Install a new O-ring with engine oil applied to CMP sensor.
2) Install CMP sensor to camshaft.
Fit the dog of CMP sensor coupling into the slots of camshaft,
when installing. The dogs of CMP sensor coupling are offset.
Therefore, if the dogs can not be fitted into the slots, turn the
CMP sensor shaft by 180 degree and try again.
