60
NOTE:
Use the fuse puller at the back of fuse box
cover, when the fuse is pulled off and installed.
4. Inspect the fuse and replace with new fuse if
needed.
NOTE:
If a fuse is blown, try to determine the root
cause and correct it.
If the cause is not corrected, the fuse may be
blown again.
WARNING
If you replace a blown fuse with a fuse
having a different amperage rating or
with a substitute such as aluminum foil or
a wire, extensive electrical system dam-
age and a fire may result.
Always replace a blown fuse with a fuse
of the same type and rating.

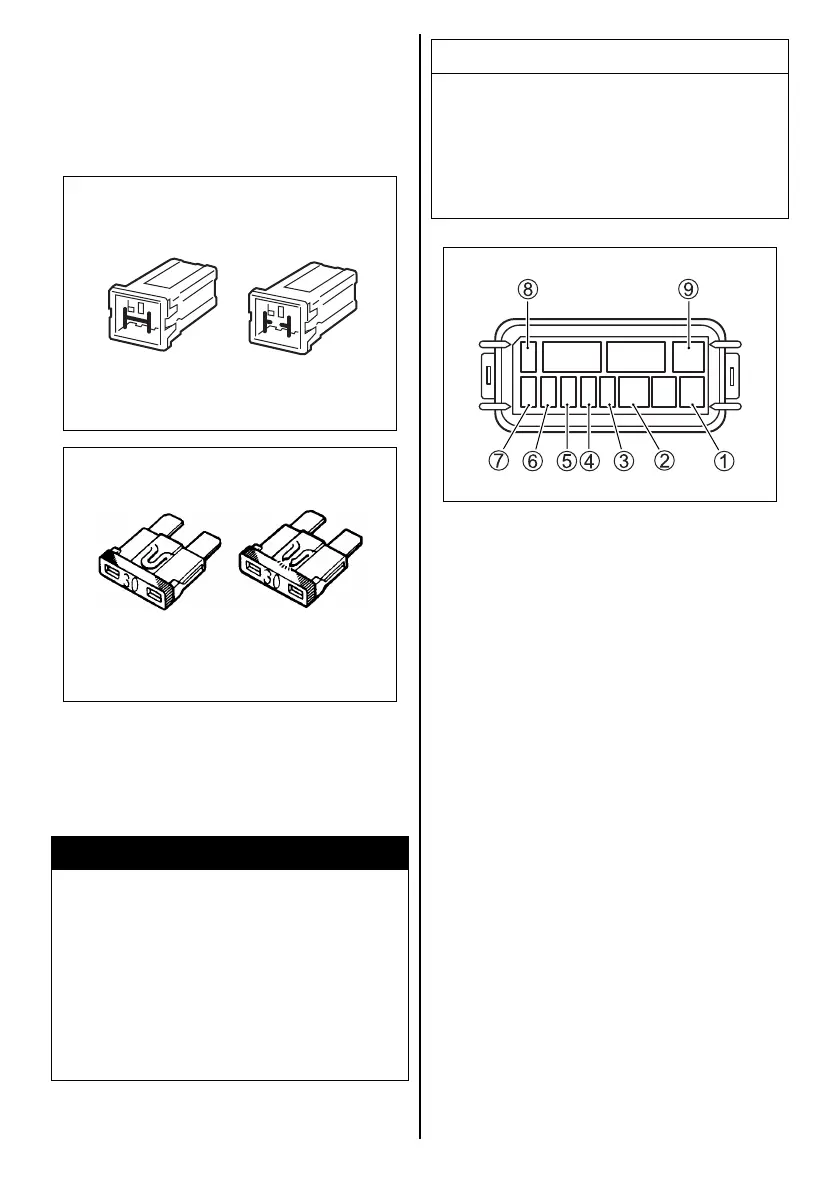

Normal fuse
Main fuse (60A)
Blown fuse
1 Main fuse: 60A
2 Load fuse: 60A
3 Spare fuse: 30A
4 Spare fuse: 15A
5 Starter motor relay fuse: 30A
6 PTT switch fuse: 15A
7 Ignition coil/Injector/ECM/IAC fuse: 30A
8 Fuel pump fuse: 15A
9 Spare fuse: 60A
NOTICE
If a new fuse blows in a short time after
installation, you may have a major electri-
cal system problem.
Consult your SUZUKI marine dealer.
15A
MAIN
RELAY
STARTER
RELAY
SPARE
15A
30A
30A
SPARE
60A
LOAD
PLUG
SPARE
60A
MAIN
