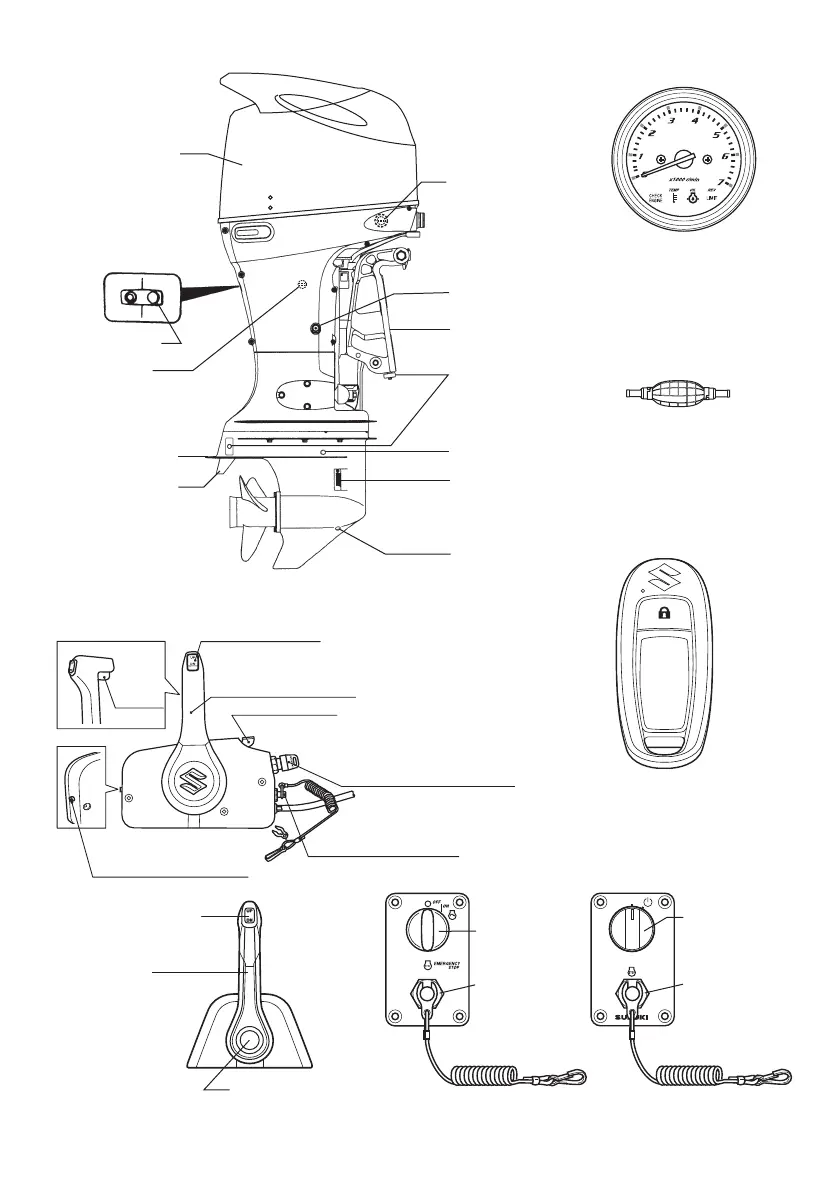

LOCATION OF PARTS
MONITOR-TACHOMETER
SIDE MOUNT TYPE
TOP MOUNT TYPE
REMOTE CONTROL BOX (Option)
Engine oil drain plug
Clamp bracket
Anode
Gear oil level plug
Water intake hole
Gear oil drain plug
Power trim and tilt
(P.T.T.) switch
(Reverse side)
Motor cover
Pilot water hole
Flush plug
(Reverse side)
Anti-cavitation plate
Trim tab
KEY-FOB
(IF EQUIPPED WITH
KEYLESS START SYSTEM)
PRIMING BULB
EMERGENCY
PUSH
START
STOP
START
Ignition key
Emergency
stop switch
Emergency
stop switch
Main switch
If not equipped with
keyless start system
If equipped with
keyless start system
Power trim and tilt
(P.T.T.) switch
Remote control
handle
Free accelerator button
Main switch (If equipped
with Keyless Start System)
Ignition key (If not equipped
with Keyless Start System)
Emergency stop switch
Remote control handle
Warm-up lever
Power trim and tilt
(P.T.T.) switch
Throttle tension adjuster
Lock-out
lever
