Suzuki DF115A - Throttle Tension Adjustment; Idle Speed Adjustment; Setting of Tilt Upper Limit Position

26

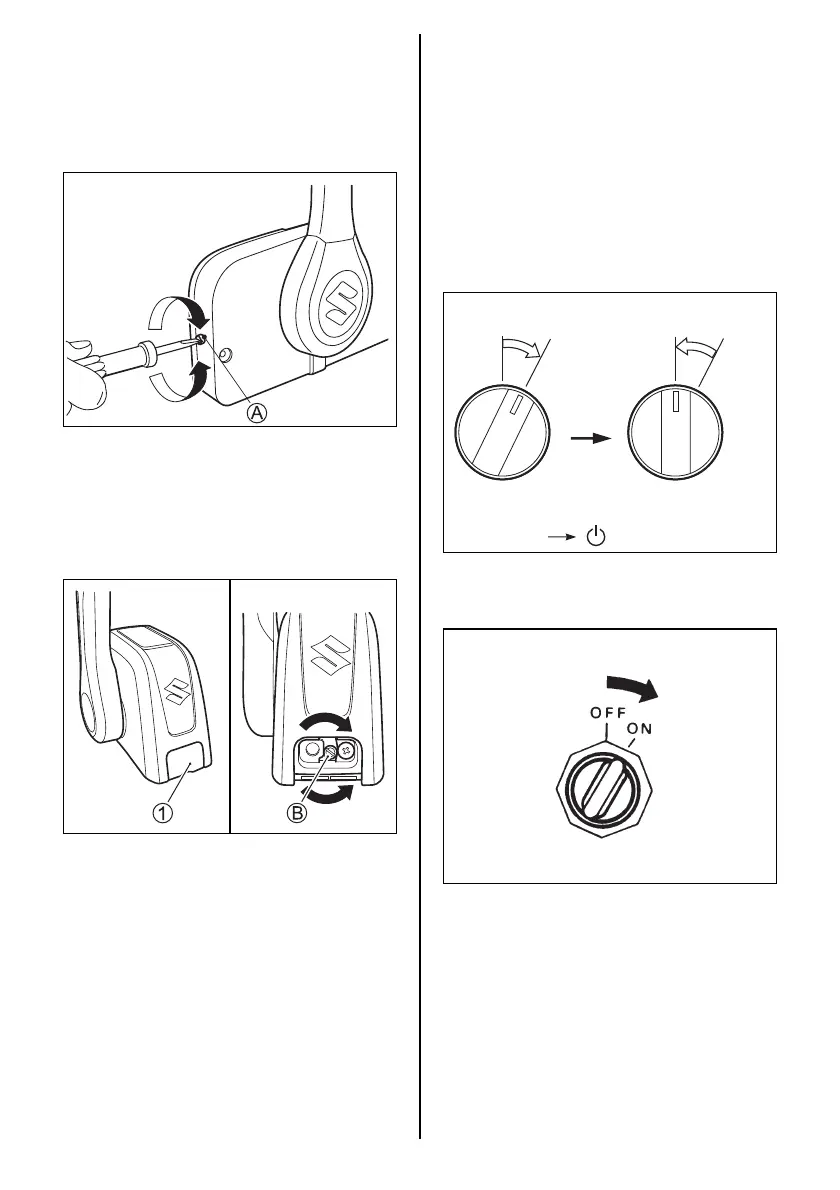

THROTTLE TENSION ADJUSTMENT
The tension of the remote control handle can be
adjusted according to your preference. To
increase the tension, turn the adjuster A clock-
wise. To decrease the tension, turn the adjuster
counterclockwise.
NOTE:
Top mount type
1. Remove the cover 1.
2. To increase the tension, turn the adjuster B
clockwise. To decrease the tension, turn the
adjuster B counterclockwise.
IDLE SPEED ADJUSTMENT
The idle speed has been factory adjusted
between 650 – 750 r/min. in neutral.
NOTE:
If idle speed cannot be set within the specified
range, contact your authorized Suzuki Marine
Dealer.
Side mount
type
SETTING OF TILT UPPER LIMIT POSITION
If the outboard motor contacts the motor well of
the boat during full tilt up operation, the upper
limit setting should be reset.
Perform this set-up after the current position
setting has been canceled, as explained in the
following procedure.
CANCELING THE TILT UPPER POSITION
LIMIT SETTING
1. If equipped with Keyless Start System:
Turn the Keyless Start System ON.
If not equipped with Keyless Start System:
Turn the ignition key to the “ON” position.
ON & OFF ON & OFF
PUSH
START
STOP
PUSH
START
STOP
* If equipped with top mount type
remote control box: (Main switch panel)
“ON & OFF” “ ”
