Suzuki df2.5 - Hose Routing Diagram and Precautions

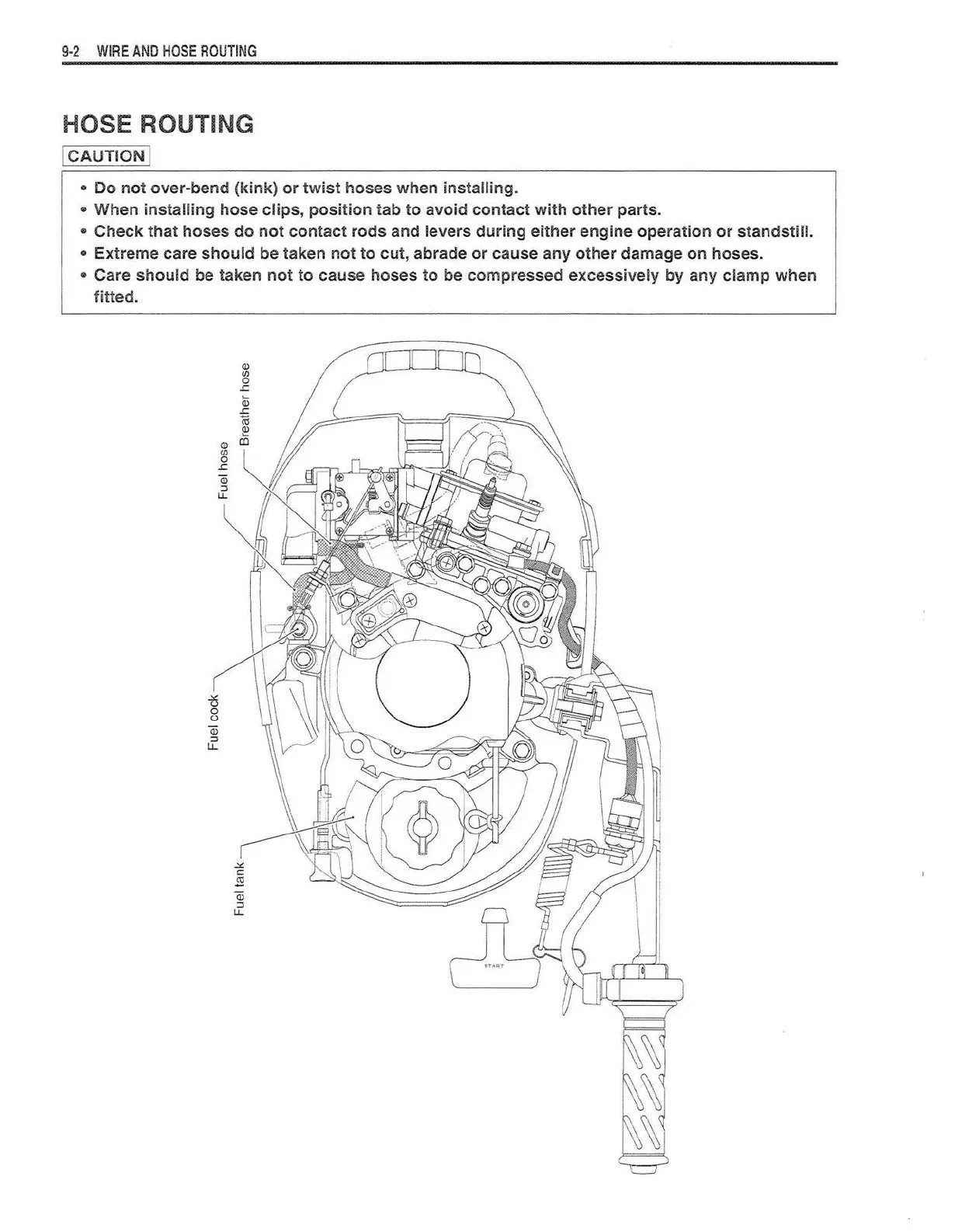

9·2 WIRE AND HOSE ROUTING
HOSE ROUTING
! CAUTION !
•
Do not over-bend {kink) or twist hoses when installing .
.. When installing hose clips, position tab to avoid contact with other parts.
• Check that hoses do not contact rods and levers during either engine operation or standstill.
• Extreme care should be taken not to cut, abrade or cause any other damage on hoses.
• Care should be taken not to cause hoses to be compressed excessively by a ny clamp when
fitted.
(])
(f)
0
J::.
Q)
:::l
LL
"""
(,)
0
(,)
Q)
:::l
LL
