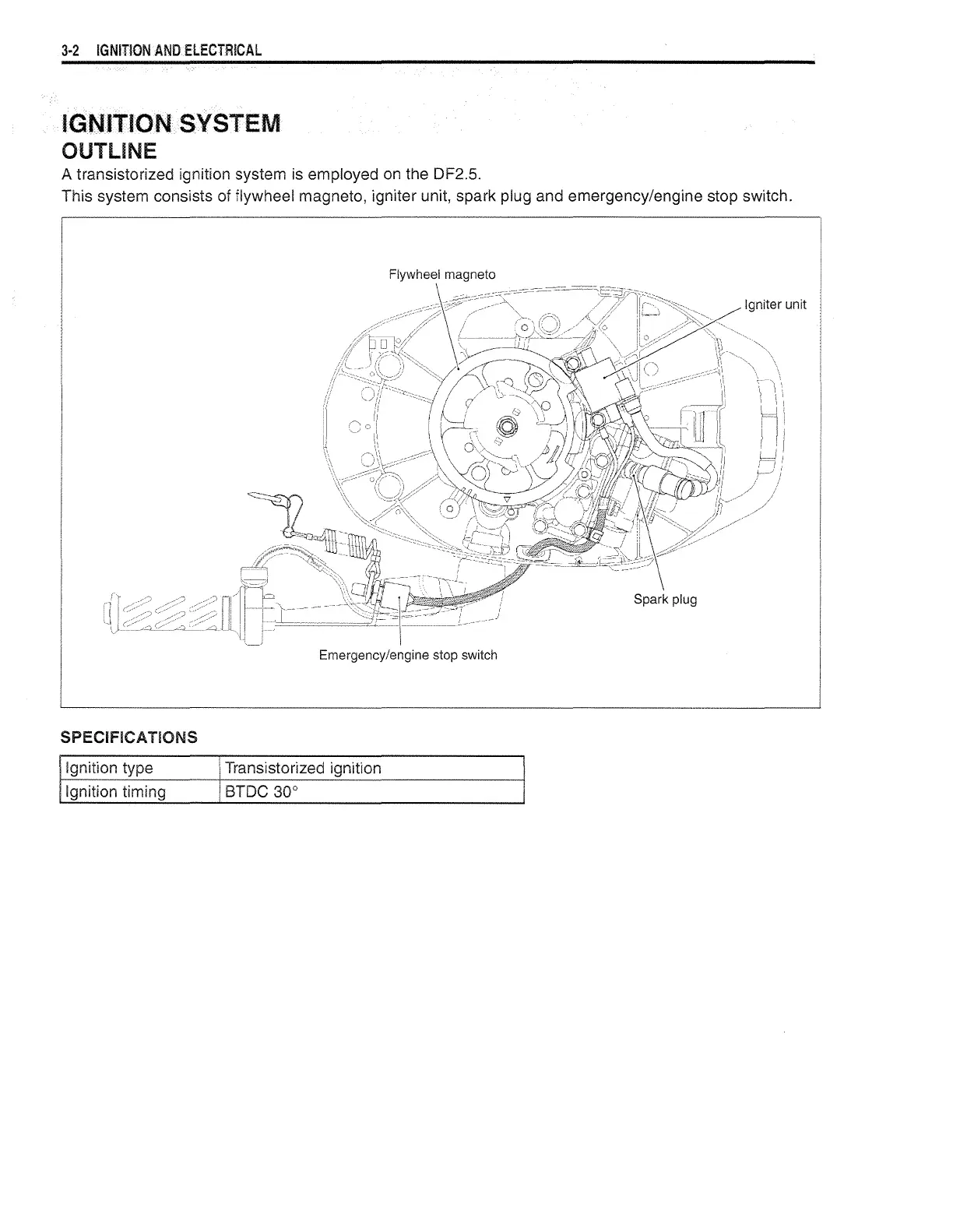

3·2 IGNITION AND ELECTRICAL
IGNITION SYSTEM
OUTUNE
A transistorized ignition system is employed on the DF2.5.
This system consists of
flywheel magneto, igniter unit, spark plug and emergency/engine stop switch.
Flywheel magneto
Igniter unit
Spark
plug
SPECIFICATiONS
Ignition type
'1 Transistorized ignition
Ignition timing
I BTDC 30°
