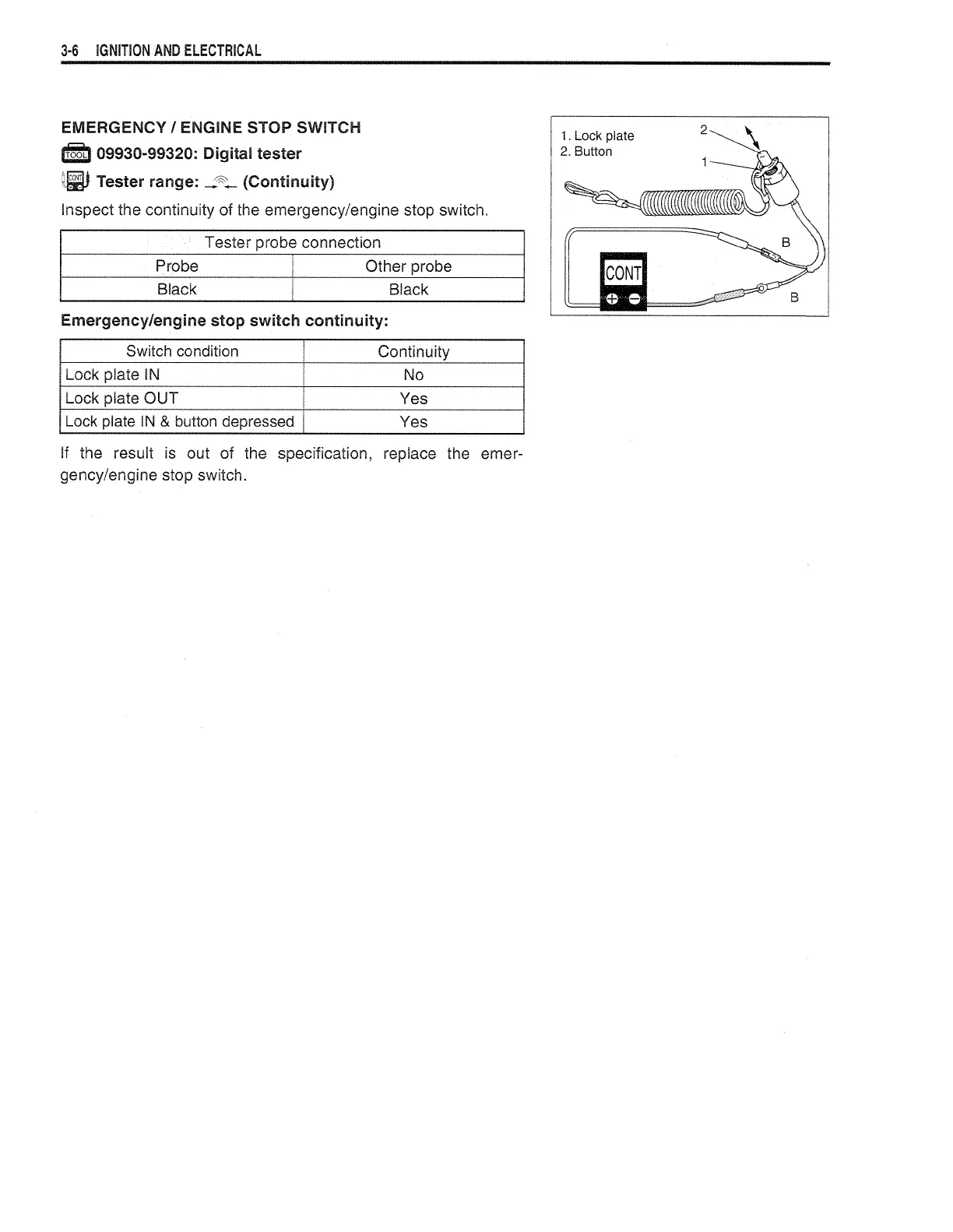

3·6 IGNITION AND ElECTRICAl
EMERGENCY I ENGINE STOP SWITCH
ir'OOtl 09930-99320: Digital tester
Tester range: (Continuity)
Inspect the continuity of the emergency/engine stop switch.
Tester probe connection
Probe
I
Other probe
Black
i
Black
Emergency/engine stop switch continuity:
Switch condition
Continuity
Lock plate IN
I
No
Lock plate OUT
Yes
Lock plate IN & button depressed
Yes
If the result is out of the specification, replace the emer-
gency/engine stop switch.
1 . Lock plate
2.Button
