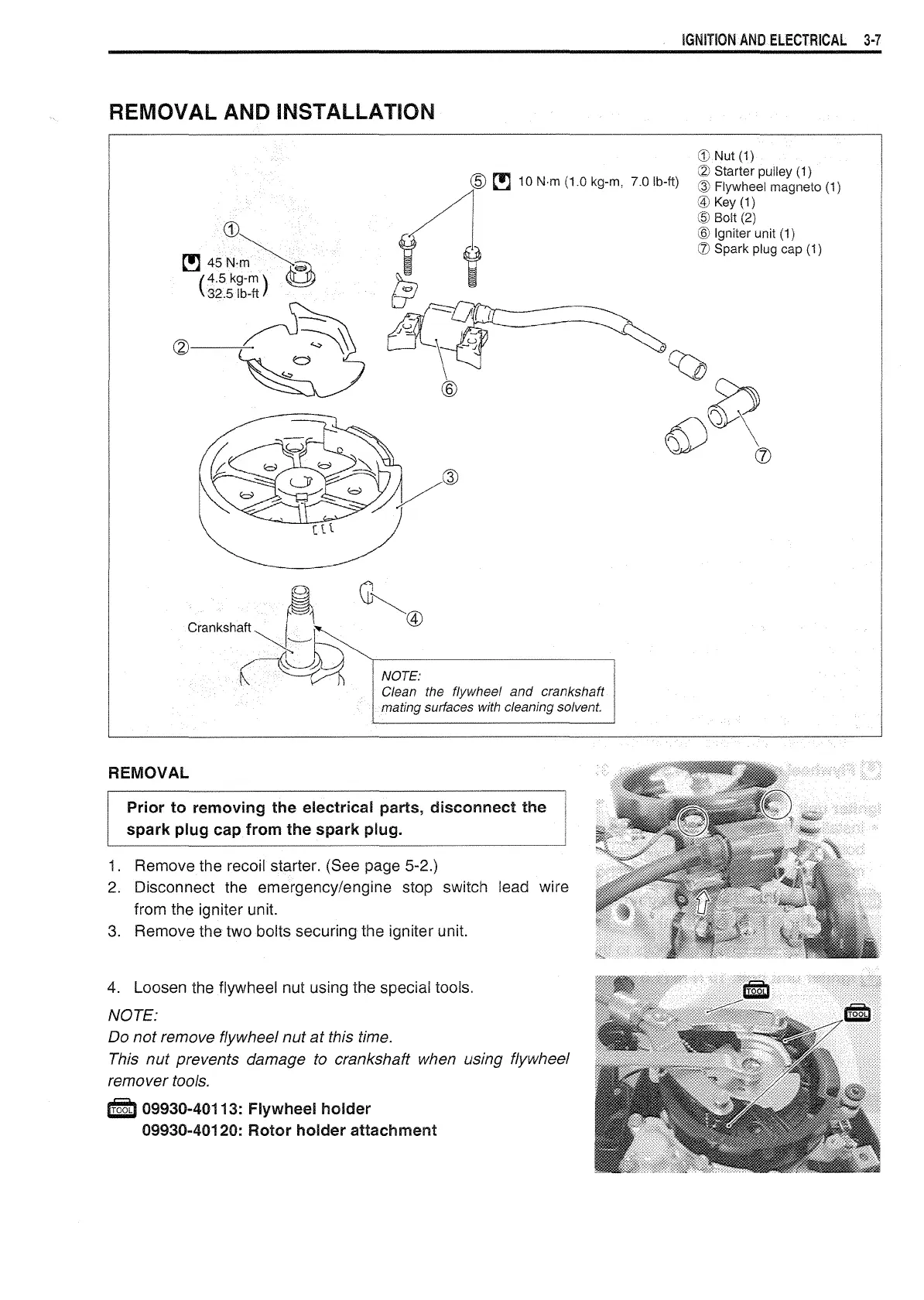

REMOVAL AND INSTALLATION
@ 10 N·m (1.0 kg-m, 7.0 lb-ft)
(1
G)
(
4.5kg-m)
32.5 lb-ft
fj;
'
;--,-._
____
__
NOTE:
Clean the flywheel
and
crankshaft
mating surfaces with cleaning solvent.
REMOVAL
Prior
to
removing
the
electrical
parts,
disconnect
the
spark
plug
cap
from
the
spark
plug.
1.
Remove the recoil starter. (See page 5-2.)
2.
Disconnect the emergency/engine stop switch lead wire
from the igniter unit.
3.
Remove the two bolts securing the igniter unit.
4.
Loosen the flywheel nut using the special tools.
NOTE:
Do not remove flywheel nut
at
this time.
This nut prevents damage
to
crankshaft when using flywheel
remover tools.
1Ri0h
09930-40113: Flywheel
holder
09930-40120:
Rotor
holder
attachment
IGNITION
AND
ELECTRICAL
3-7
Nut (1)
Starter
pulley (1)
@ Flywheel magneto ( 1 )
@Key
(1)
@Bolt
(2)
@ Igniter unit ( 1)
({) Spark plug cap (1)
