Suzuki df2.5 Service Manual

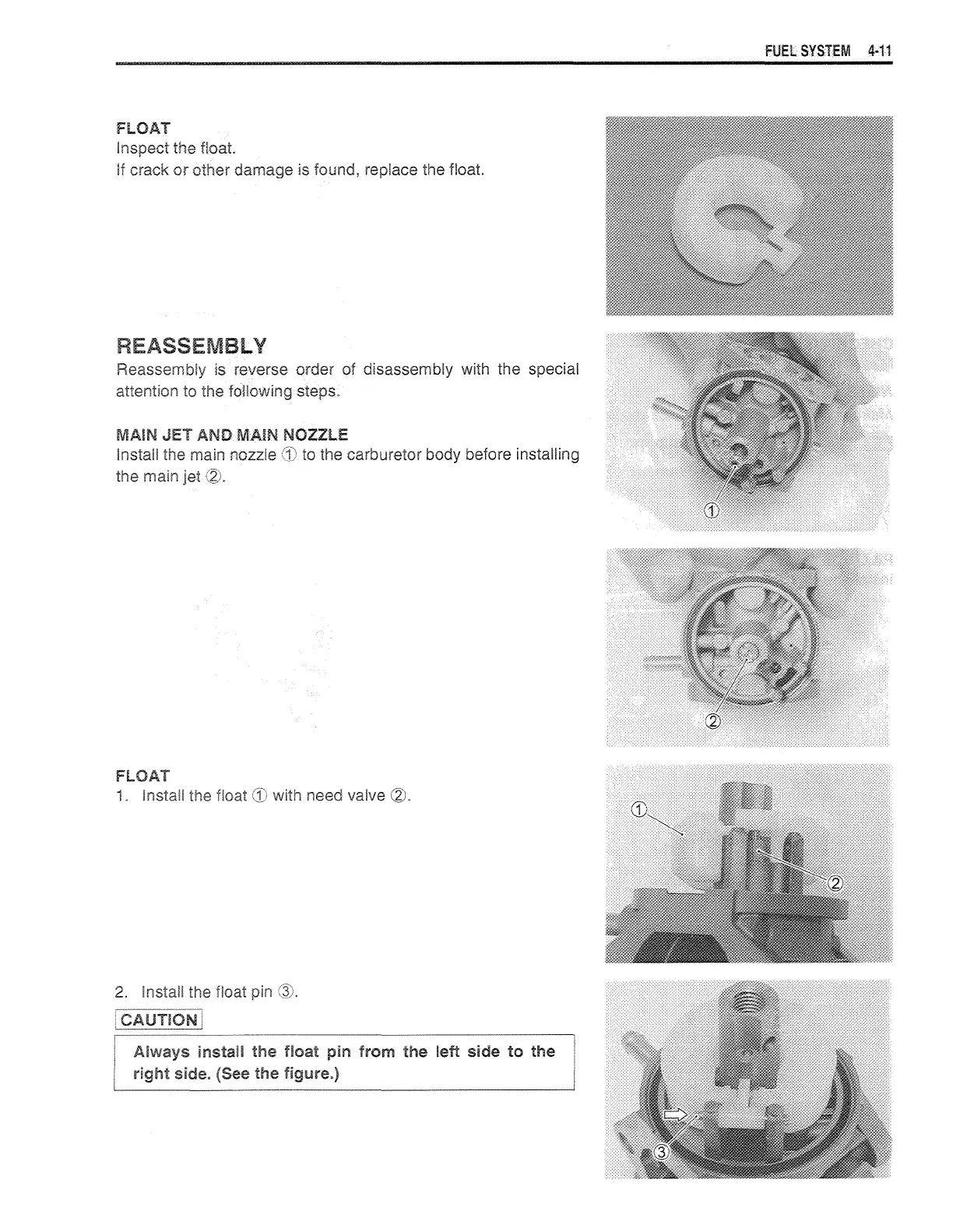

is reverse order disassembly with the special
attention to the steps.
MAIN
JET NOZZLE
Install the main nozzle to the carburetor body before installing
the
FLOAT
1. float
need
valve
FUEl SYSTEM 4·11

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
