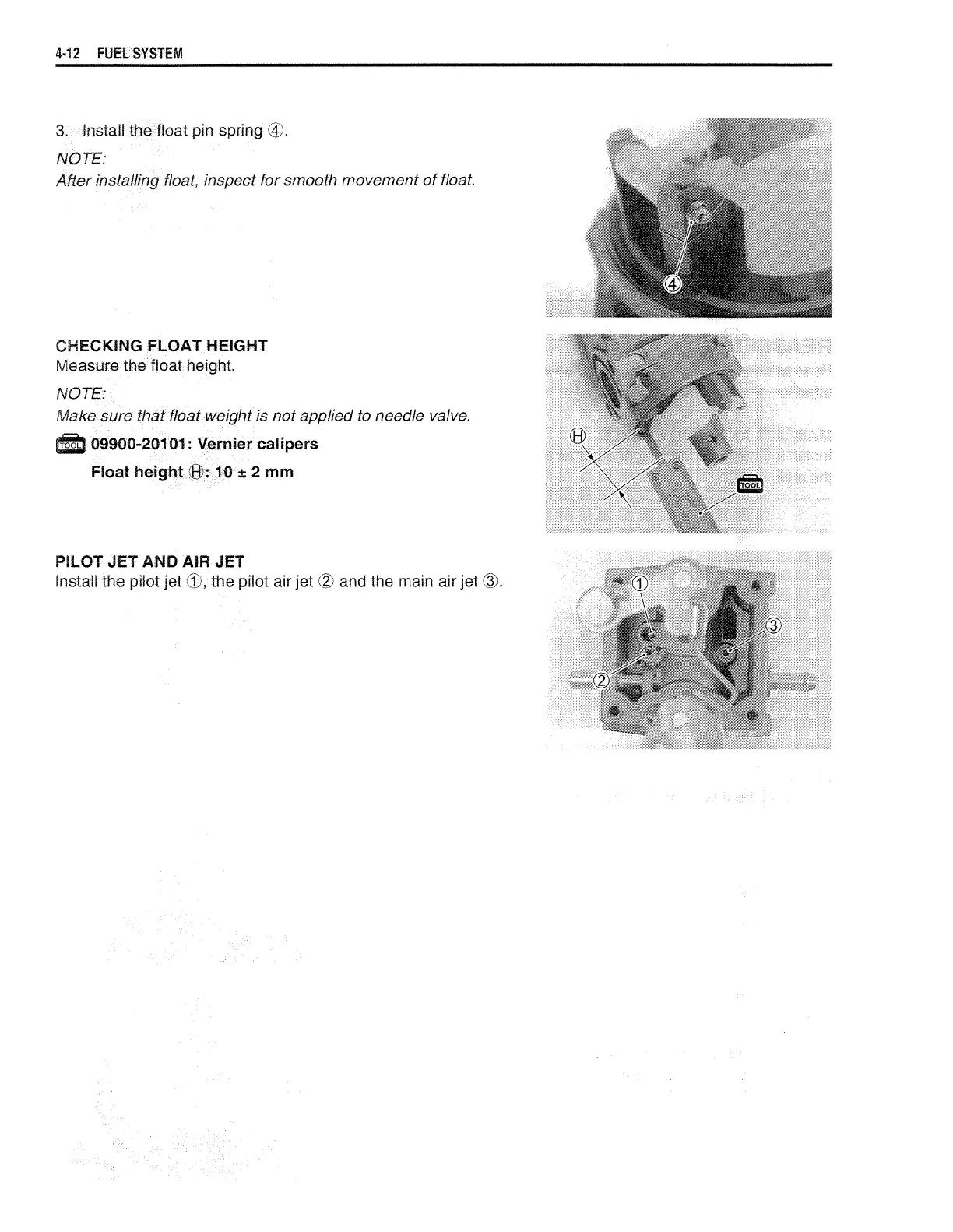

4·12
FUElSYSTEM
3.
Install the float pin spring
NOTE:
After
installing float, inspect for smooth movement
of
float.
CHECKING
FLOAT
HEIGHT
Measure the float height.
NOTE:
Make sure
that
float weight is not applied
to
needle valve.
n'Ohti
09900-20101: Vernier calipers
Float
height
(til: 10
:t
2
mm
PILOT
JET
AND AIR
JET
Install the pilot jet the pilot air jet
(2)
and the main air
jet@.
