WARNING
If you replace a blown fuse with a fuse
having a different amperage rating or
with a substitute such as aluminum foil or
a wire, extensive electrical system dam-
age and a fire may result.
Always replace a blown fuse with a fuse
of the same type and rating.
NOTICE
If a new fuse blows in a short time after
installation, you may have a major electri-
cal system problem.
Consult your SUZUKI marine dealer.

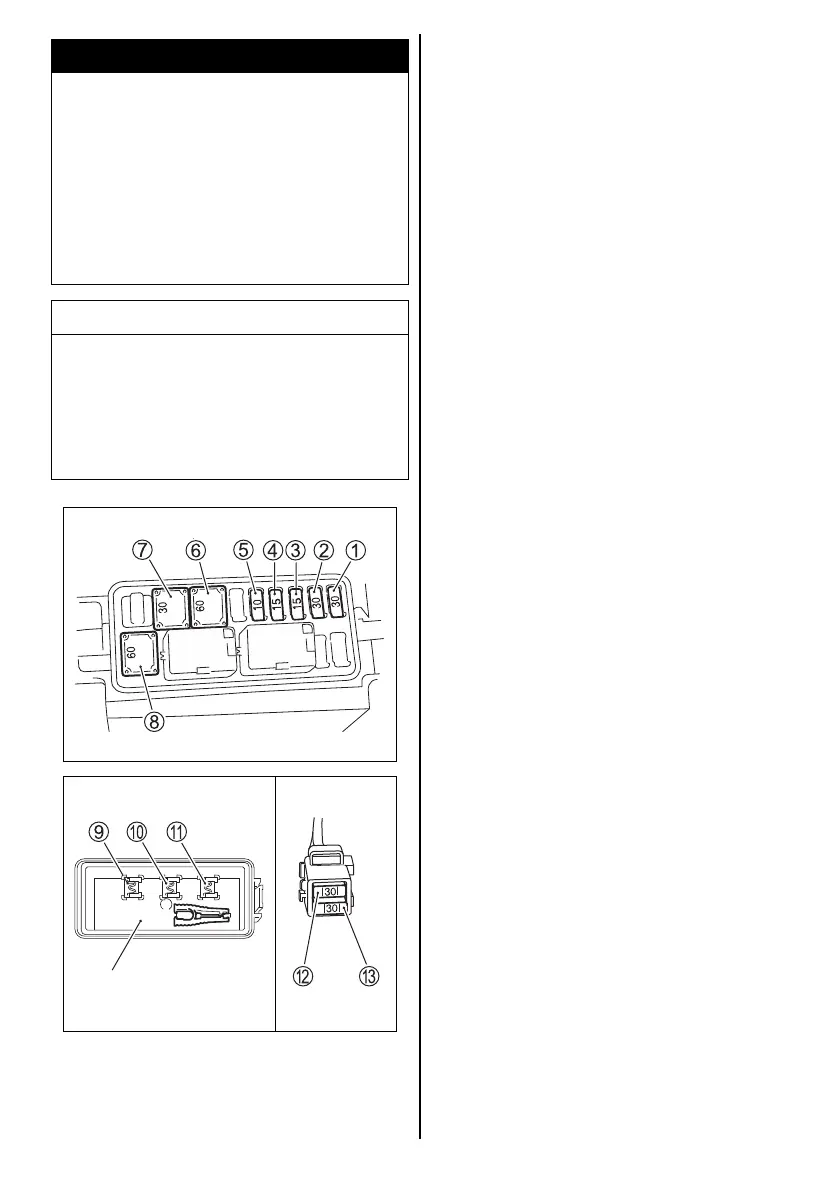

Fuse box cover
1 Starter motor relay fuse: 30 A
2 Ignition coil/Injector/Engine control module/
Fuel pump fuse: 30 A
3 Throttle valve fuse: 15 A
4 Shift actuator fuse: 15 A
5 PTT switch fuse: 10 A
6 Main fuse: 60 A
7 Isolator select fuse: 30 A
8 Spare fuse: 60 A
9 Spare fuse: 30 A
0 Spare fuse: 15 A
A Spare fuse: 10 A
B Spare fuse: 30 A
C Sub battery cable fuse: 30 A
NOTE:
Spare fuses 9, 0 and A are provided for the
back of fuse box cover.
