Suzuki DF250AP - FUSE INSPECTION AND REPLACEMENT DETAILS; Sub battery cable fuse; Fuse Inspection and Replacement

90
4. Remove the sub battery cable fuse.
5. Inspect the fuse and replace with new fuse if
needed.
NOTE:
If a fuse is blown, try to determine the root
cause and correct it.
If the cause is not corrected, the fuse may be
blown again.
8 WARNING
If you replace a blown fuse with a fuse having
a different amperage rating or with a substi-
tute such as aluminum foil or a wire, extensive
electrical system damage and a fire may
result.
Always replace a blown fuse with a fuse of the
same type and rating.

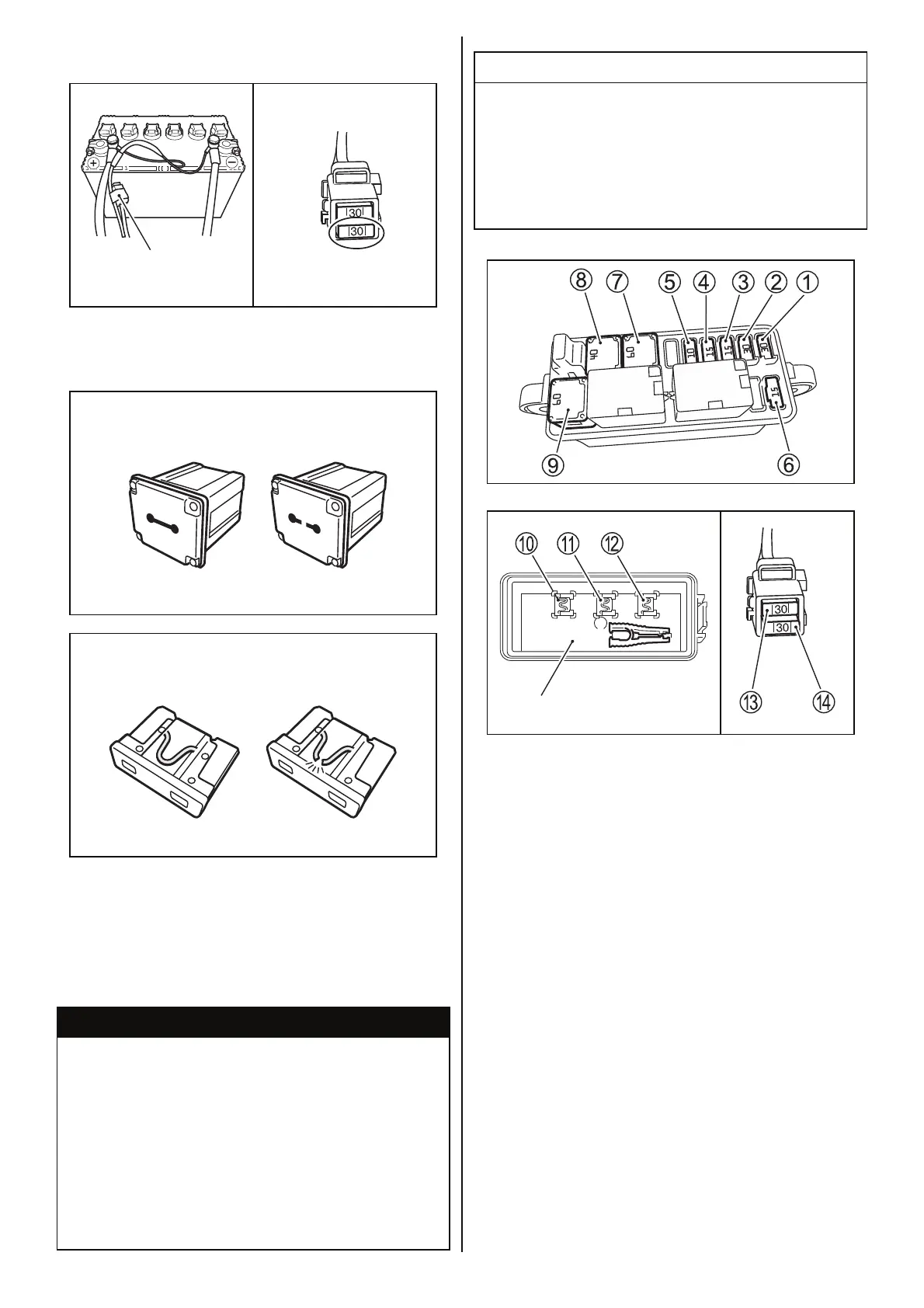

Sub battery cable
fuse case
Normal fuse
Main fuse (60 A)/
Isolator fuse (40 A)
Blown fuse
Normal fuse
Blade type fuse
Blown fuse
1 Starter motor relay fuse: 30 A
2 Ignition coil/Injector/Engine control module/
High pressure fuel pump fuse: 30 A
3 Throttle valve fuse: 15 A
4 Shift actuator fuse: 15 A
5 PTT switch fuse: 10 A
6 Low pressure fuel pump fuse: 15 A
7 Main fuse: 60 A
8 Isolator select fuse: 40 A
9 Spare fuse: 60 A
0 Spare fuse: 30 A
A Spare fuse: 15 A
B Spare fuse: 10 A
C Spare fuse: 30 A
D Sub battery cable fuse: 30 A
NOTE:
Spare fuses
0, A and B are provided for the
back of fuse box cover.
NOTICE
If a new fuse blows in a short time after instal-
lation, you may have a major electrical system
problem.
Consult your SUZUKI marine dealer.
Fuse box cover
