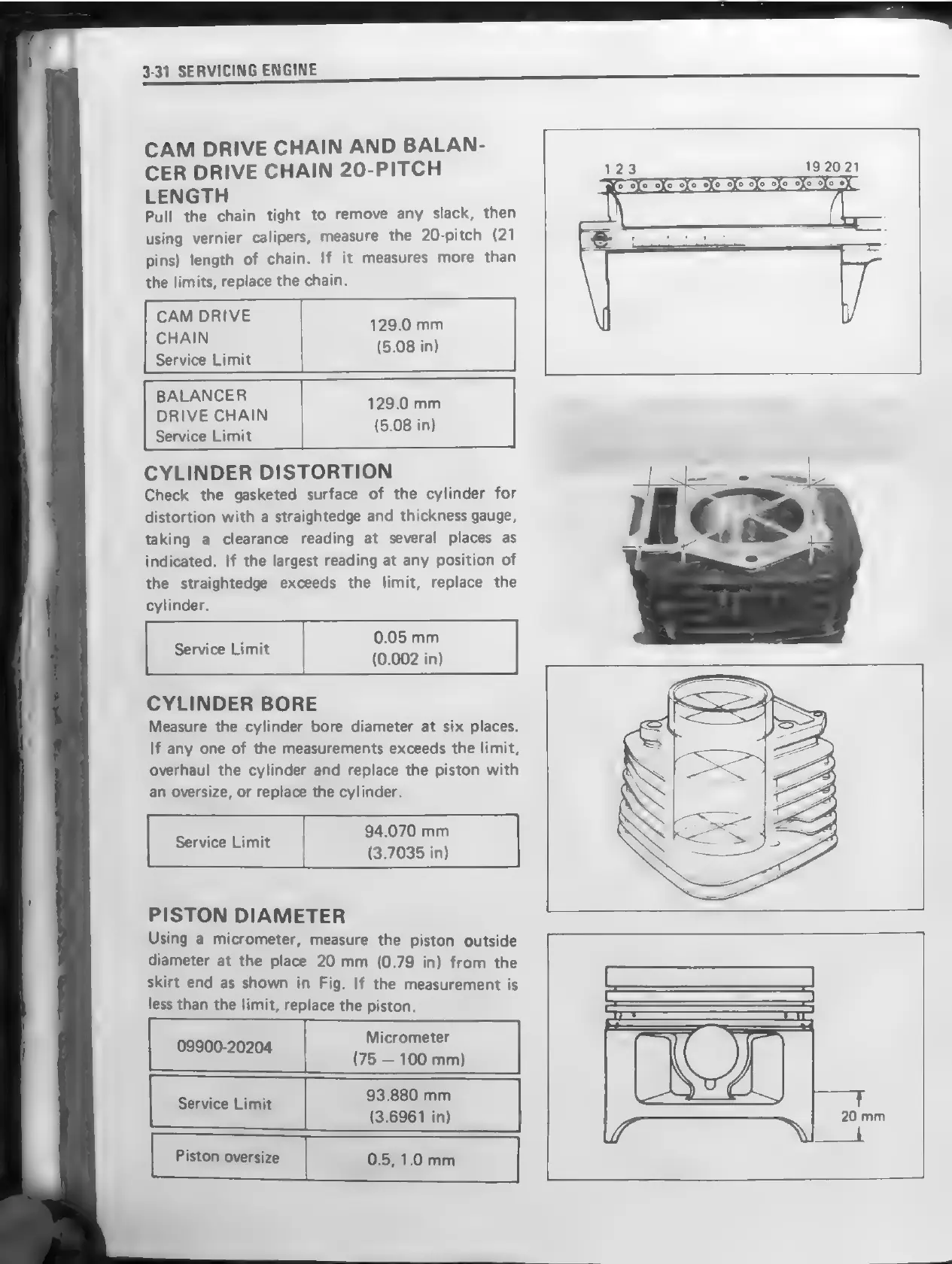

Suzuki DR600S - Cylinder and Piston Inspection

3-31
SERVICING
ENGINE
CAM
DRIVE
CHAIN
AND
BALAN-
CER
DRIVE
CHAIN
20-PITCH
LENGTH
Pull
the
chain
tight
to
remove
any
slack,
then
using
vernier
calipers,
measure
the
20-pitch
(21
pins)
length
of
chain.
If
it
measures
more
than
the
limits,
replace
the
chain.
CAM DRIVE
CHAIN
Service Limit
129.0 mm
(5.08 in)
BALANCER
DRIVE CHAIN
Service Limit
CYLINDER DISTORTION
Check the gasketed surface of the cylinder for
distortion with a straightedge and thickness gauge,
taking a clearance reading at several places as
indicated. If the largest reading at any position of
the straightedge exceeds the limit, replace the
cylinder.
: iP. 0.05 mm
Service
Limit
(0.002
in)
CYLINDER BORE
Measure the cylinder bore diameter at six places.
If any one of the measurements exceeds the limit,
overhaul the cylinder and replace the piston with
an oversize, or replace the cylinder.
129.0 mm
(5.08 in)
94.070 mm
Service Limit (3.7035 in)
PISTON DIAMETER
Using
a
micrometer,
measure
the
piston
outside
diameter
at
the
place
20
mm
(0.79
in)
from
the
skirt
end
as
shown
in
Fig.
If
the
measurement
is
less
than
the
limit,
replace
the
piston.
09900-20204
Micrometer
(75
—
100
mm)
93.880 mm
(3.6961
in)
20
mm
Service Limit
Piston oversize
