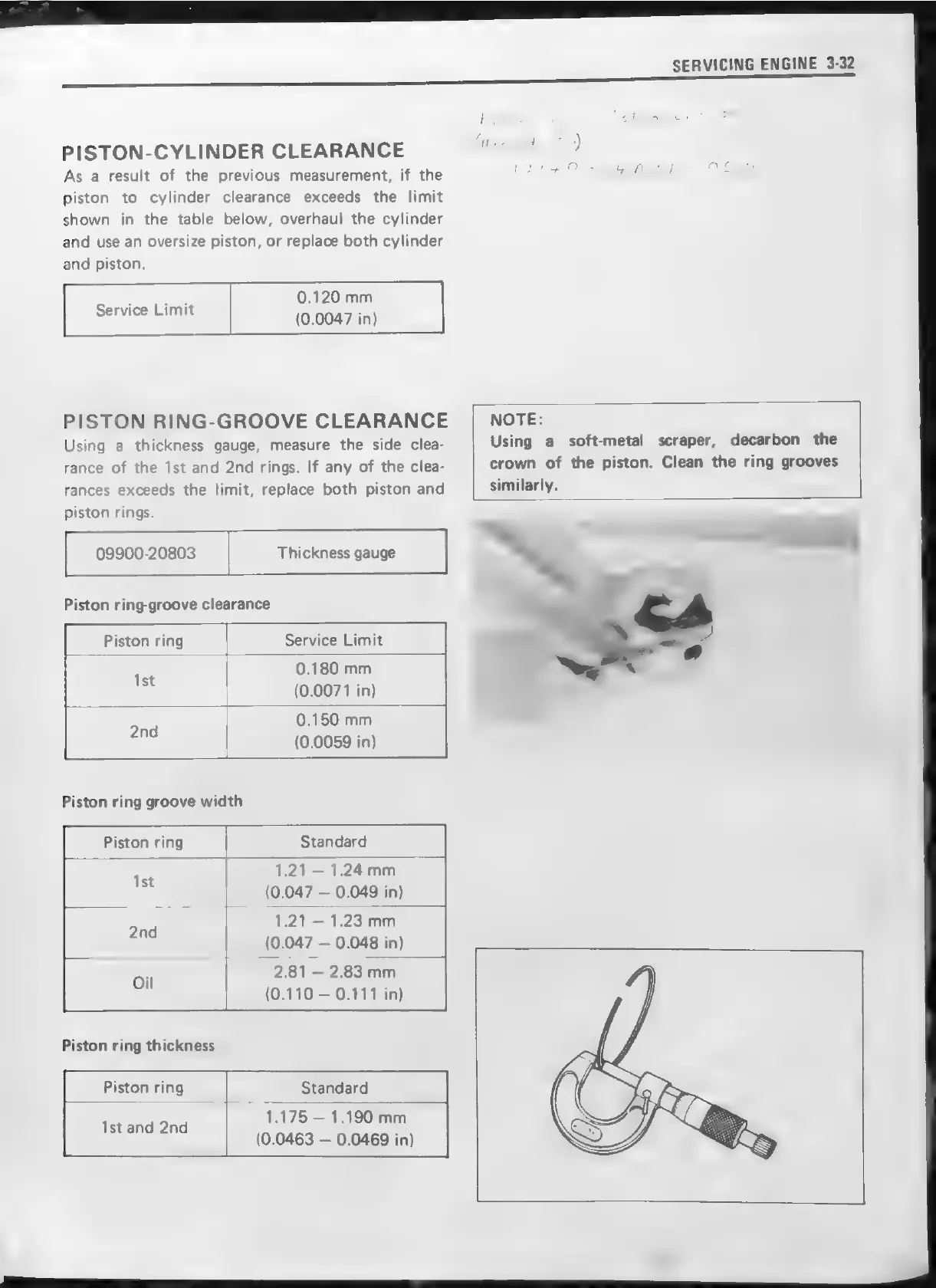

PISTON-CYLINDER
CLEARANCE
As a result of the previous measurement, if the
piston to cylinder clearance exceeds the limit
shown in the table below, overhaul the cylinder
and use an oversize piston, or replace both cylinder
and piston.
| Service Limit
PISTON RING-GROOVE CLEARANCE
Using a thickness gauge, measure the side clea-
rance of the 1st and 2nd rings. If any of the clea-
rances exceeds the limit, replace both piston and
piston rings.
Thickness gauge |
Service Limit
0.120 mm
(0.0047 in)
F 09900-20803
Piston ring-groove clearance
a Piston ring
*
0.180
mm
(0.0071
in)
0.150
mm
are
(0.0059
in)
Piston ring groove width
Piston ring Standard
: by “1.21 —1.24mm
(0.047 — 0.049 in)
1.21 — 1.23 mm
d
an (0.047 — 0.048 in)
Oil 2.81 — 2.83 mm
(0.110 — 0.111 in)
Piston ring thickness
Piston ring
Standard
1.175 — 1.190 mm
(0.0463 — 0.0469 in)
1st and 2nd
SERVICING
ENGINE
3-32
NOTE:
Using a soft-metal scraper, decarbon the
crown of the piston. Clean the ring grooves
similarly.
