9E-17 Glass / Windows / Mirrors:

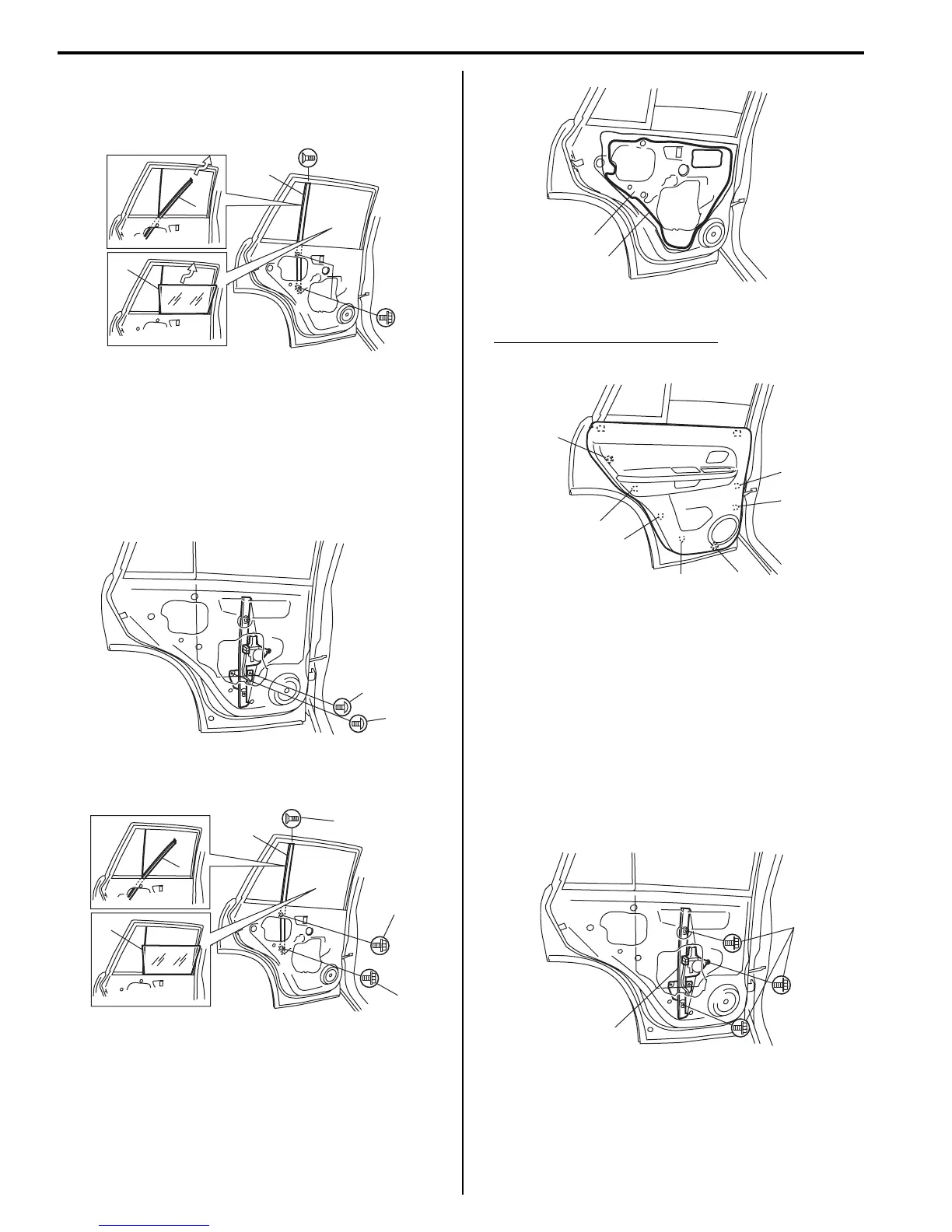

5) Detach rear part of glass run from door sash (1), and
remove door sash (1).
6) Remove door glass (2) as shown.
Installation
Reverse removal procedure noting the following
instructions.
• If there is deformity for glass run, replace it with a new
one.
• Tighten rear door window mounting screw (a) first and
then (b).
• Tighten door sash mounting screw and bolts in order
of (a), (b) and (c).
• Secure door sealing cover (1) with adhesive (2).
• Install rear door trim.
Rear door trim attaching order
(1) → (2) → (3) → (4) → (5) → (6) → (7)
Rear Door Window Regulator Removal and
Installation
S5JB0A9506008
Removal
1) Remove door glass referring to “Rear Door Glass
Removal and Installation: ”.
2) Disconnect power window motor lead wire at coupler
and loosen clamp.
3) Loosen regulator mounting screws (1), and then
remove rear window regulator (2).
1
1
2
I5JB0A950022-01
(a)
(b)
I5JB0A950023-01
1
1
2
(a)
(b)
(c)
I5JB0A950024-02
1
2
I5JB0A950025-01
1
2
3
4
5
6
7
I5JB0A950026-01
1
2
I5JB0A950027-01
