Maintenance and Lubrication: 0B-9

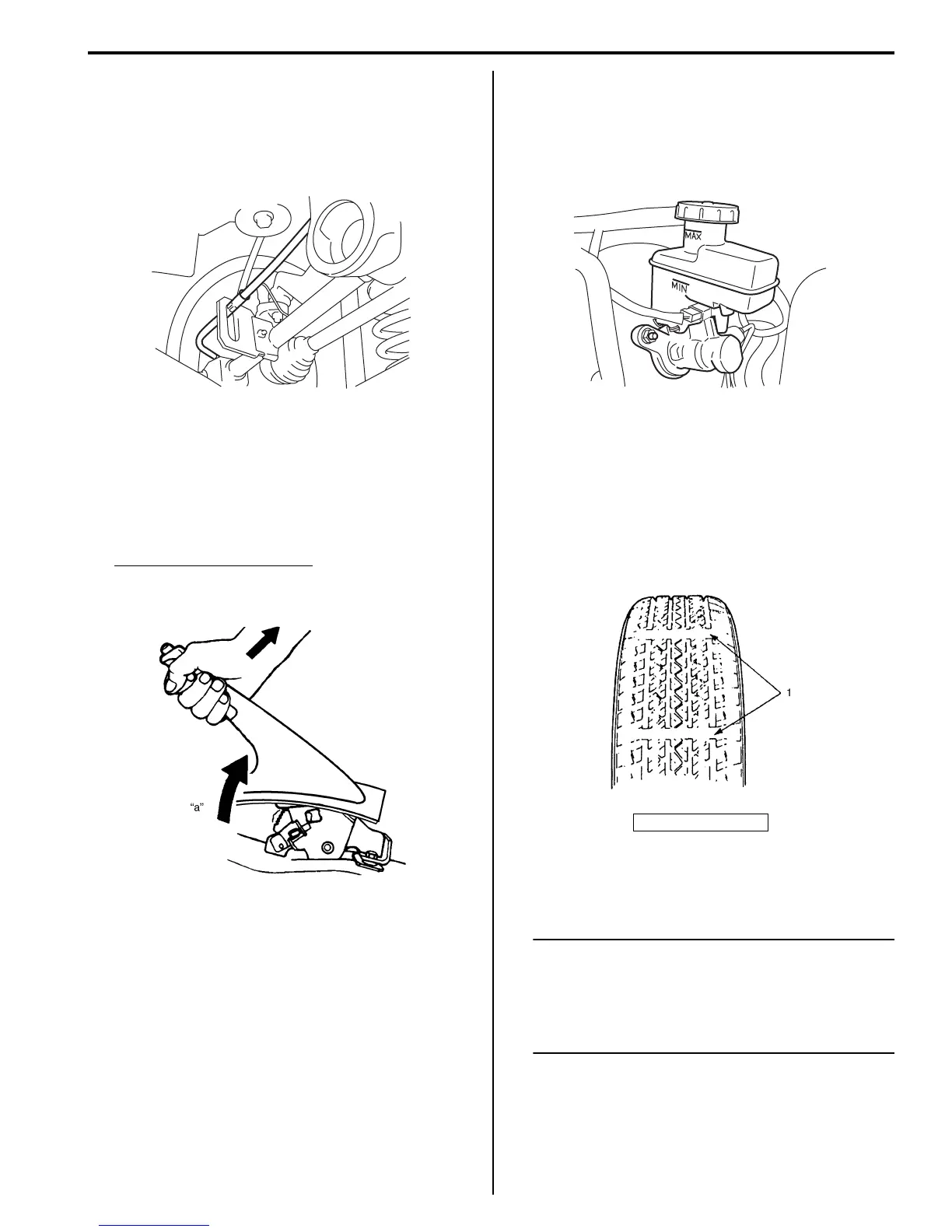

Parking Brake Lever and Cable Inspection
S5JB0A0206024
1) Inspect brake cable for damage and smooth
movement.
Replace cable if it is in deteriorated condition.
2) Check tooth tip of each notch for damage or wear. If
any damage or wear is found, replace parking lever.
3) Check parking brake lever for proper operation and
stroke, and adjust it if necessary.
For checking and adjusting procedures referring to
“Parking Brake Check and Adjustment: in Section
4D”.
Parking brake lever stroke
“a”: 5 – 7 notches (with 200 N (20 kg, 44 lbs) of
pull pressure)
Clutch Fluid Inspection
S5JB0A0206018
1) Check system for evidence of fluid leakage.
Repair leaky point if any.
2) Check reservoir for fluid level referring to “Clutch
Fluid Inspection: in Section 5C”.
Tire / Wheel Inspection and Rotation
S5JB0A0206025
1) Check tires for uneven or excessive wear, or
damage.
If defective, replace. Refer to “Irregular and/or
Premature Wear Description: in Section 2D” and
“Wear Indicators Description: in Section 2D” for
details.
2) Check inflating pressure of each tire and adjust
pressure to specification as necessary. Refer to
“Tires Description: in Section 2D” for details.
NOTE
• Tire inflation pressure should be checked
when tires are cool.
• Specified tire inflation pressure should be
found on tire placard or in owner’s manual
which came with the vehicle.
3) Rotate tires. For details, refer to “Tire Rotation: in
Section 2D”.
I5JB0A020023-01
I5JB0A020024-01
1. Wear indicator
I5JB0A410005-01
I2RH01240005-01
