Suzuki GRAND VITARA User Manual

3C-80 Transfer: Non-Shift Type (Transfer without Shift Actuator)
Transfer Assembly Disassembly and
Reassembly
S5JB0A3326007

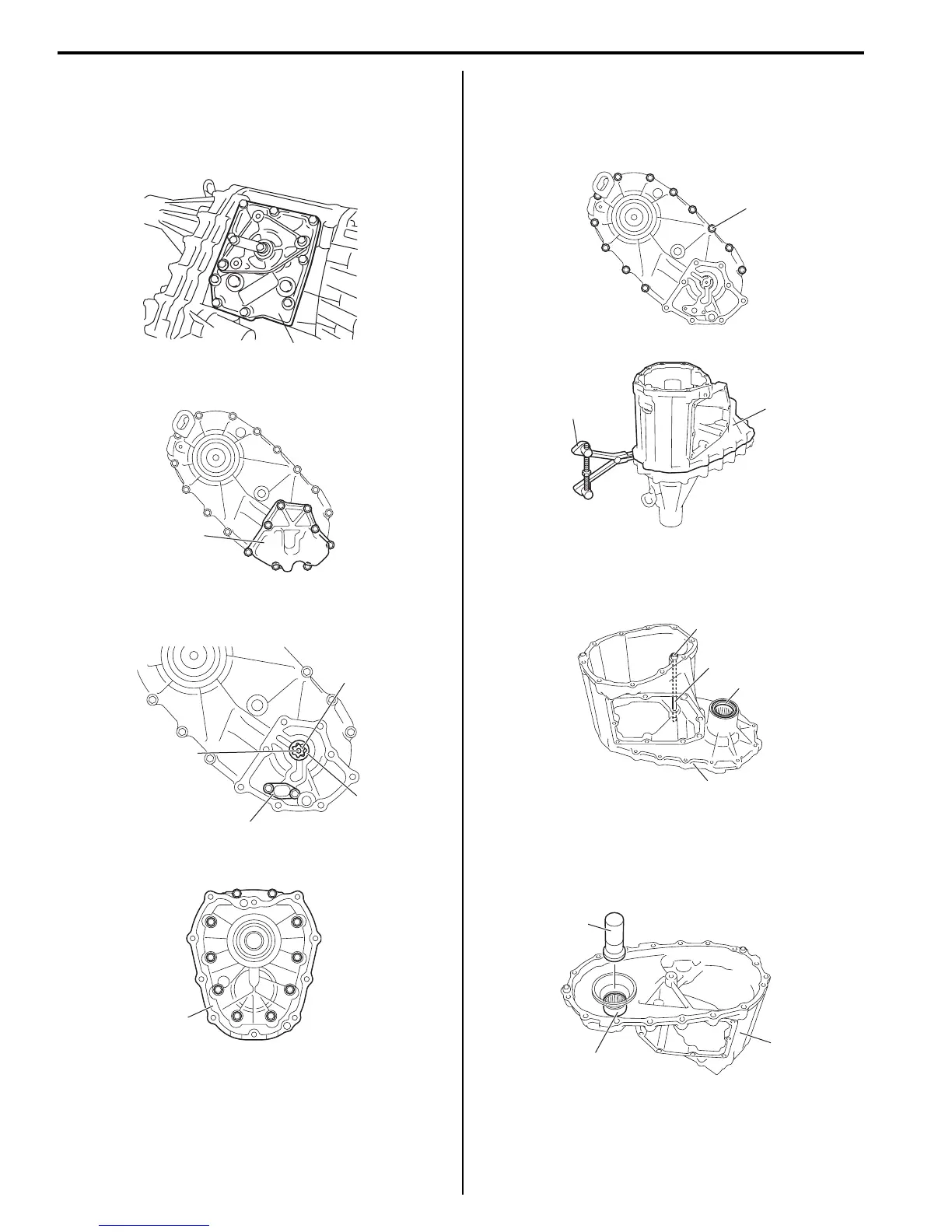

Disassembly
1) Remove differential lock shift lever case (1).
2) Remove oil pump cover (1).
3) Remove oil pump inner rotor (1), outer rotor (2), oil
strainer (4) and drive pin (3).
4) Remove front case (1).
5) Remove rear case bolts (1), and then separate
center case (2) using special tool.
Special tool
(A): 09912–34510
6) Remove knock pin (1) and oil pipe (2) from center
case (4) and remove front oil seal No.1 (3) using flat
end rod or the like, if necessary.
7) Remove needle bearing (1) from center case (2)
using special tool, if necessary.
Special tool
(A): 09913–76010
1
I5JB0A331085-01
1
I5JB0A331086-01
1
2
4
3
I5JB0A331013-01
1
I5JB0A331014-01
1
I5JB0A331087-01
2
(A)
I5JB0A331016-02
1
2
3
4
I5JB0A331017-01
(A)
1
2
I5JB0A331088-01
