9H-1 Interior Trim:
Interior Trim
Repair Instructions

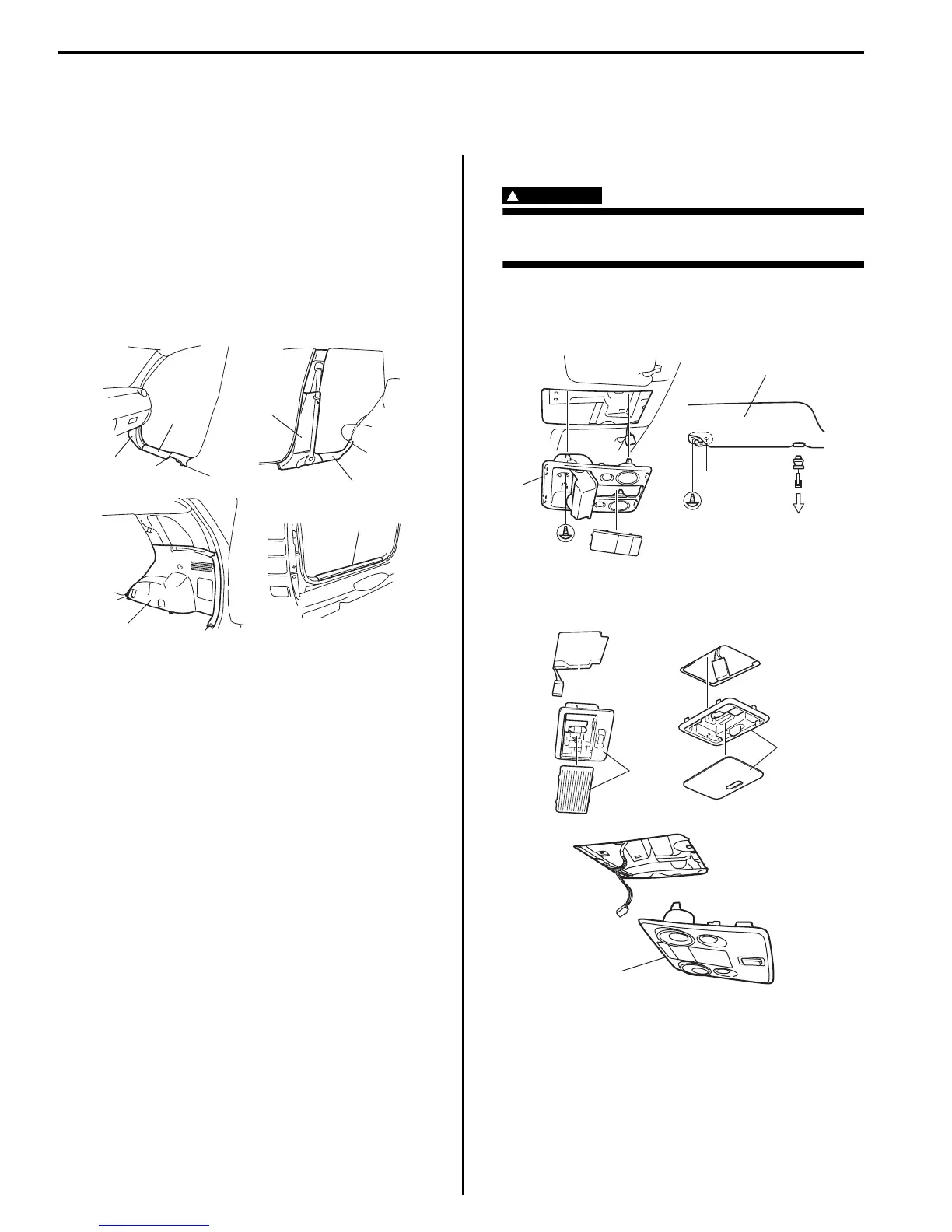

Floor Carpet Removal and Installation
S5JB0A9806001
Removal
1) Remove front seats and rear seats.
2) Remove seat belt lower anchor bolt.
3) Remove side sill scuffs (1) (front and rear for 5 door
model), front pillar lower trims (2), center pillar inner
lower trims (3) (for 5 door model), back panel trim
(4), rear quarter lower trims (5).
4) Remove front and rear console boxes.
5) Remove floor carpet.
Installation
Reverse removal sequence to install front floor carpet,
noting the following instruction.
• For tightening torque of rear seat mounting bolt and
nut, refer to “Rear Seat Components: in Section 9G”.
• For tightening torque of front seat mounting bolt, refer
to “Front Seat Components: in Section 9G”.
• For tightening torque of seat belt lower anchor bolt,
refer to “Front Seat Belt Components: in Section 8A”
and “Rear Seat Belt Components: in Section 8A”.
Head Lining Removal and Installation
S5JB0A9806002
WARNING
!
Refer to “Air Bag Warning: in Section 00”
before starting service work.
Removal
1) Remove overhead console (1) (if equipped) and
sunvisor (2).
2) Remove room lamp (2), luggage lamp (1) and spot
lamp (3) (if equipped).
1
2
1
3
4
5
I5JB0A980001-01
2
1
I5JB0A980002-02
2
1
3
I5JB0A980003-01
