FUEL SYSTEM 4-25

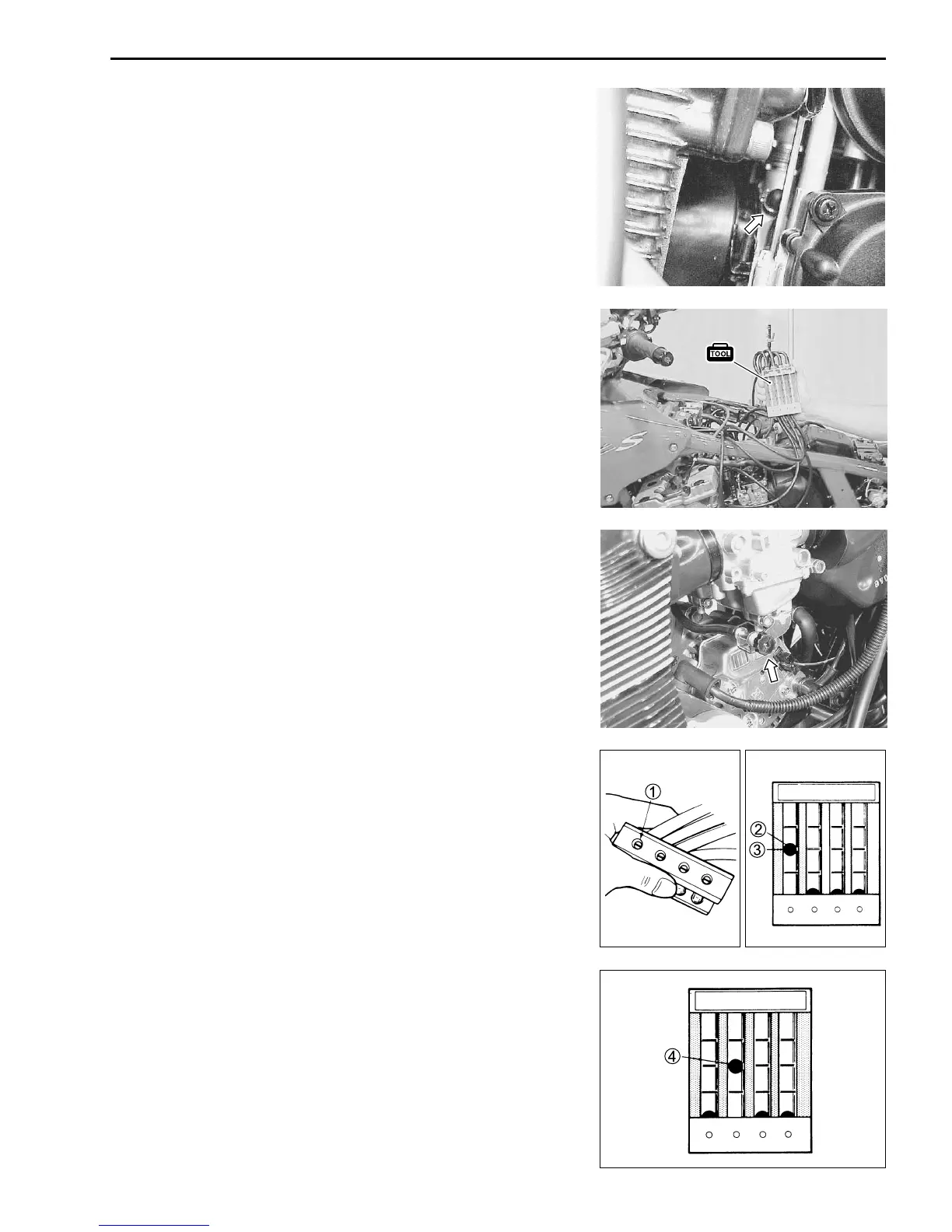

• Remove the vacuum inlet cap from the carburetor (for cylinders
#1 or #4).
• Connect one of the carburetor balancer’s rubber hoses to this
inlet.
$ 09913-13121: Carburetor balancer
NOTE:
If it is difficult to connect the carburetor balancer’s rubber hoses
to the vacuum inlets, slightly move the carburetor assembly back-
ward after loosening the carburetor clamps.
• Start the engine and let it run at 1 750 r/min.
Adjust the engine speed by turning the throttle stop screw.
• Turn the air screw 1 of the carburetor balancer so that the
vacuum pressure causes the steel ball 2 to rise to the center
line 3 of the tube.
• After making sure that the steel ball remains at the center line,
disconnect the hose from the vacuum inlet and connect the
next hose to the vacuum inlet.
• Turn the air screw for this tube until the steel ball 4 is at the
center line of its respective tube.
• Repeat the above procedure on the third and fourth hoses.
The carburetor balancer is now ready to be used to synchronize
the carburetors.

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
