ELECTRICAL SYSTEM 6-21

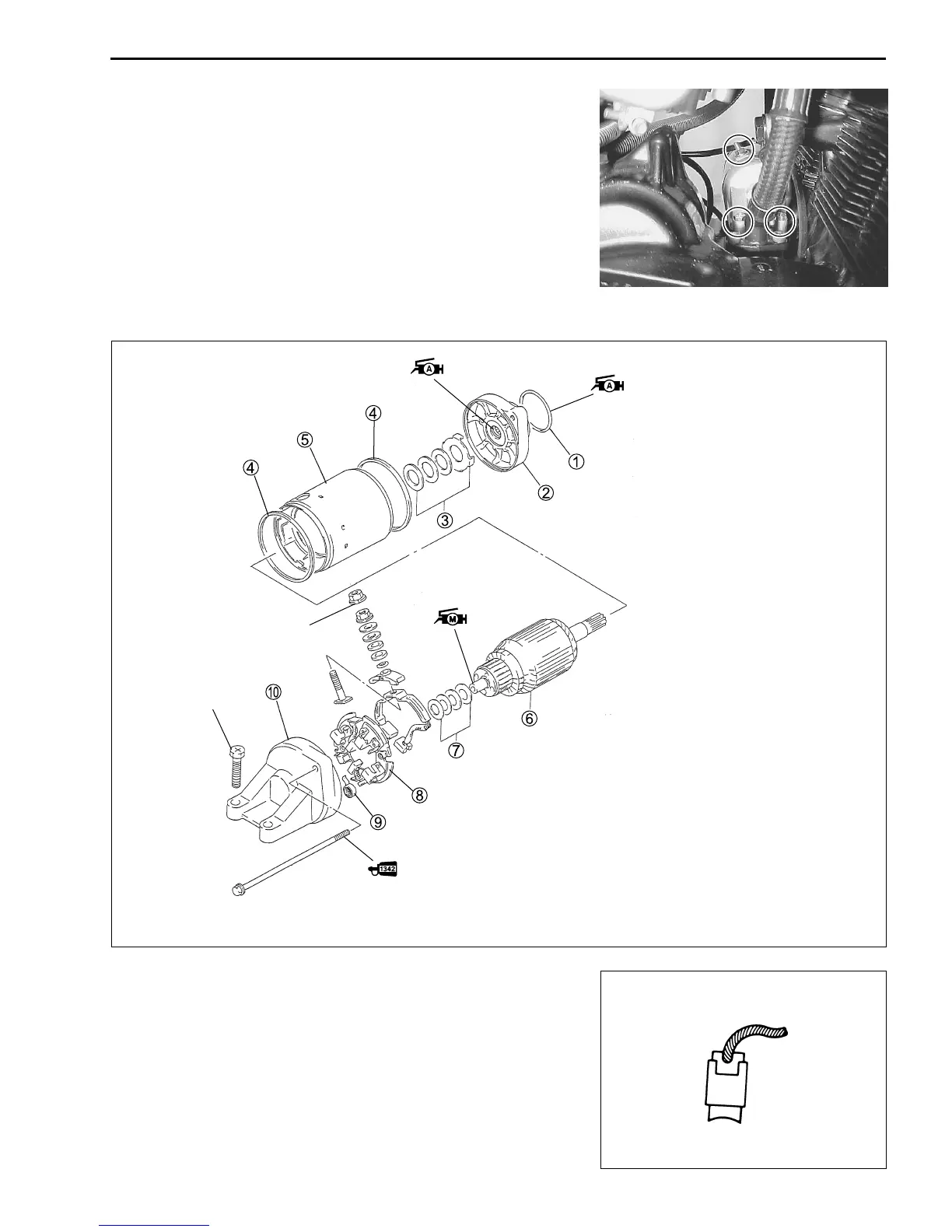

STARTER MOTOR REMOVAL AND
DISASSEMBLY
• Remove the starter motor. (!3-16)
• Disassemble the starter motor, as shown.
STARTER MOTOR INSPECTION
CARBON BRUSHES
Inspect the carbon brushes for abnormal wear, cracks or smooth-
ness in the brush holder.
If either carbon brush is defective, replace the brush assembly.
1 O-ring
2 Housing end (inside)
3 Washer
4 O-ring
5 Starter motor case
6 Armature
7 Washer
8 Brush holder
9 Brush spring
0 Housing end (outside)
( 6 N
.
m
0.6 kgf
.
m
(
4.5lb-ft
)
( 5 N
.
m
0.5 kgf
.
m
(
3.5 lb-ft
)

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
