Suzuki GSF1200S 2001 User Manual

CHASSIS 5-59

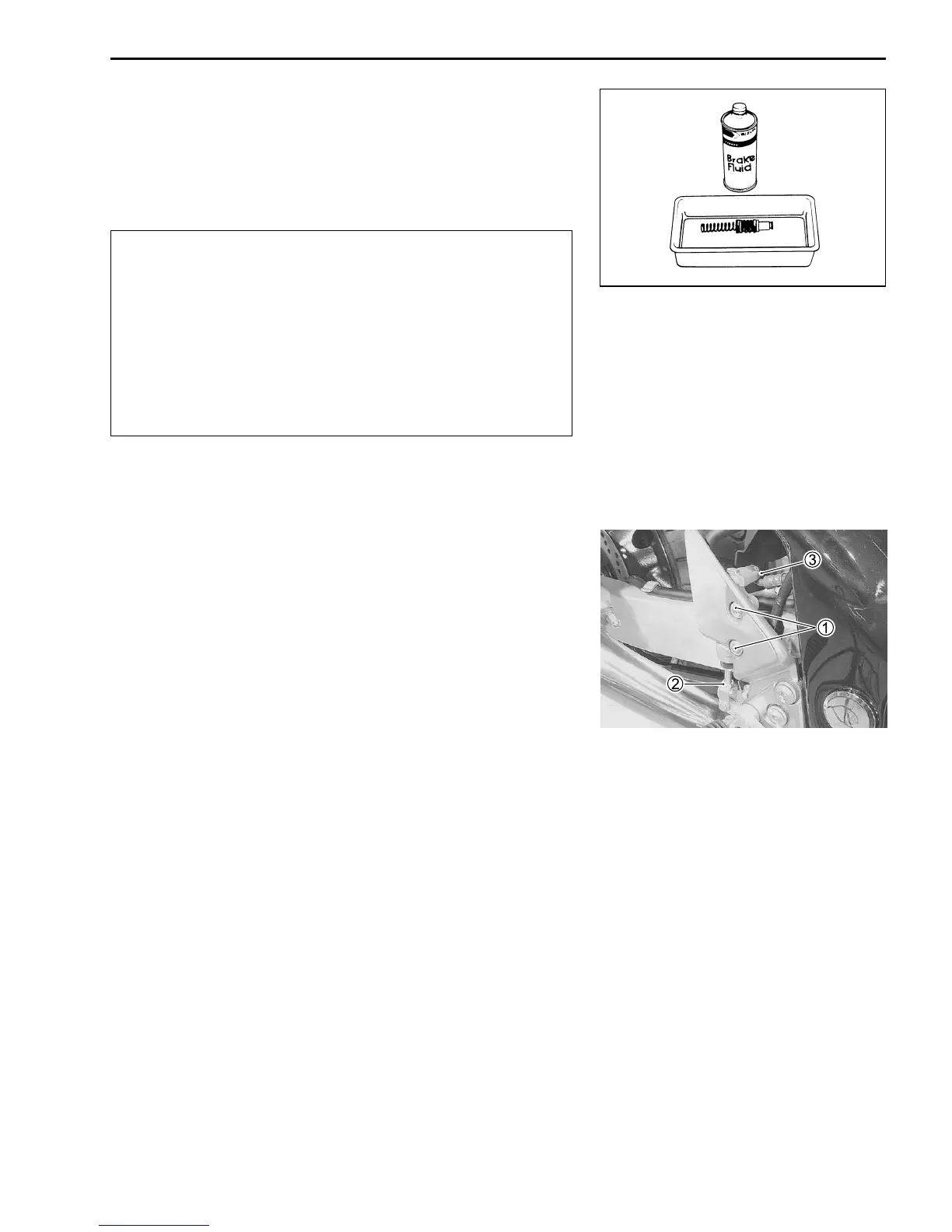

MASTER CYLINDER REASSEMBLY AND
REMOUNTING
Reassemble and remount the master cylinder in the reverse
order of removal and disassembly. Pay attention to the following
points:
#
* Wash the master cylinder components with new brake
fluid before reassembly.
* Do not wipe the brake fluid off after washing the
components.
* When washing the components, use the specified
brake fluid. Never use different types of fluid or
cleaning solvents such as gasoline, kerosine, etc.
* Apply brake fluid to the master cylinder bore and all of
the master cylinder components before reassembly.
+ Specification and Classification: DOT 4
• Tighten each bolt to the specified torque.
" Master cylinder mounting bolt 1:
23 N
.
m (2.3 kgf
.
m, 16.5 lb-ft)
Master cylinder rod locknut 2:
18 N
.
m (1.8 kgf
.
m, 13.0 lb-ft)
Brake hose union bolt 3: 23 N
.
m (2.3 kgf
.
m, 16.5 lb-ft)

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
