ELECTRICAL SYSTEM 6-19

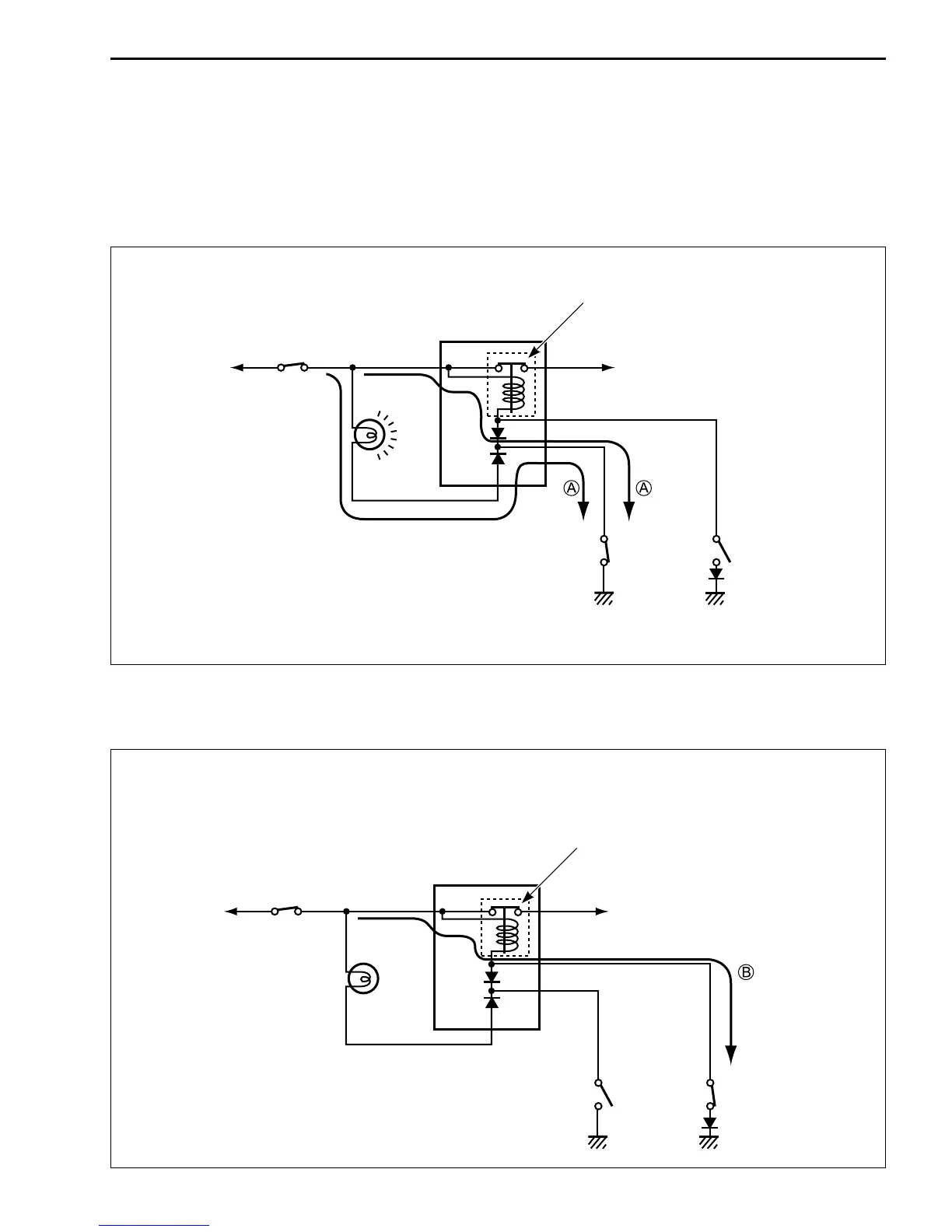

The circuit consists of the turn signal/side-stand relay, neutral indicator light and switches. The ignition coils
will send voltage to the spark plugs dependant on what gear the transmission is in and whether the
side-stand is either up or down. The gear position and side-stand switches work together in this system.
The ignition coils work only in two situations as follows.
1. Transmission: Neutral (ON) Side-stand: Down (OFF)
The current flow A switches “on” the side-stand relay and the ignition coils send voltage to the spark
plugs even when the side-stand is kept down.
2. Side-stand: Up (ON)
The current flow B switches “on” the side-stand relay and the ignition coils send voltage to the spark
plugs. The engine can be started in any gear.
Battery
Ignition switch
“ON”
Turn signal /
side-stand relay
Gear position
switch “ON”
Side-stand switch
“DOWN POSITION”
Ignition coils
Ignition switch
“ON”
Side-stand relay “ON”
Battery
Side-stand switch
“UP POSITION”
Turn signal /
side-stand relay
Ignition coils
Side-stand relay “ON”
Gear position
switch “OFF”

Suzuki GSF1200S 2001 Specifications

General

Displacement	1157 cc
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	790 mm (31.1 inches)
Engine Type	4-stroke, 4-cylinder, DOHC
Cooling System	Air/oil-cooled
Rear Suspension	Swingarm, link type, coil spring, oil damped
Fuel Tank Capacity	20 liters
Bore x Stroke	79.0 mm x 59.0 mm
