Suzuki GSX-R150 User Manual

6-23

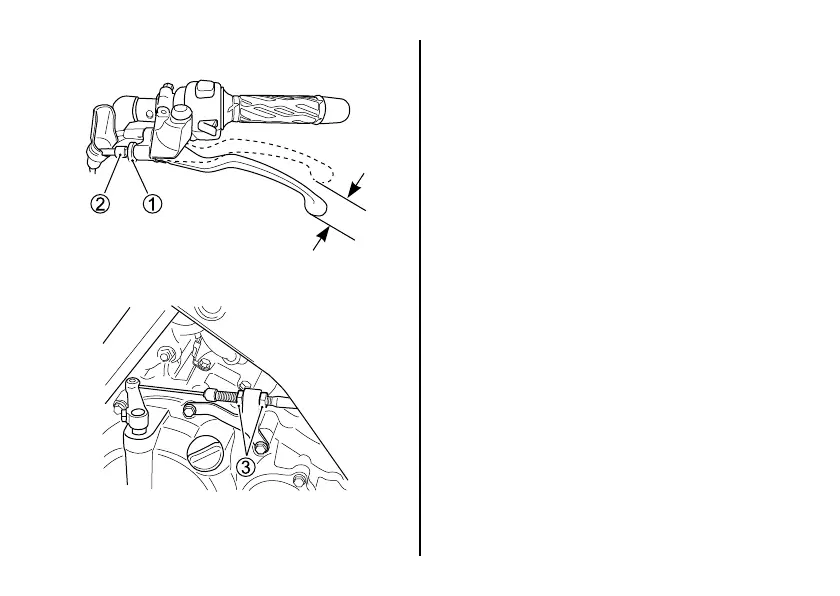

CLUTCH
10 – 15 mm
At each maintenance interval, adjust the
clutch cable play with the clutch cable
adjuster. The cable play should be 10 – 15
mm as measured at the clutch lever end
before the clutch begins to disengage. If you
find that the amount of clutch cable play is
incorrect, adjust it in the following way:
1. Loosen the lock nut 1.
2. Turn the clutch lever adjuster 2 clock-
wise as far as it will go.
3. Loosen the cable adjuster lock nuts 3 to
obtain approximately 10 – 15 mm of free
play at the clutch lever end as indicated.
4. Minor adjustment can now be made with
the adjuster 2.
5. Tighten the lock nuts, 1 and 3, after fin-
ishing adjustment.
NOTE: Any maintenance of the clutch other
than the clutch cable play should be per-
formed by your Suzuki dealer.

Suzuki GSX-R150 Specifications

General

Engine Type	4-Stroke, Liquid-Cooled, DOHC
Displacement	147.3 cc
Bore x Stroke	62.0 mm x 48.8 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	6-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Fuel Tank Capacity	11.0 L
Overall Width	700 mm
Seat Height	785 mm
Curb Weight	131 kg
Final Drive	Chain
Lubrication System	Wet sump
Front Brake	Disc brake
Rear Brake	Disc brake
Front Tire	90/80-17
Rear Tire	130/70-17
Overall Length	2, 020 mm
Overall Height	1075 mm
Ground Clearance	160 mm
Wheelbase	1300 mm
