Suzuki GSX-R150 User Manual

2-46

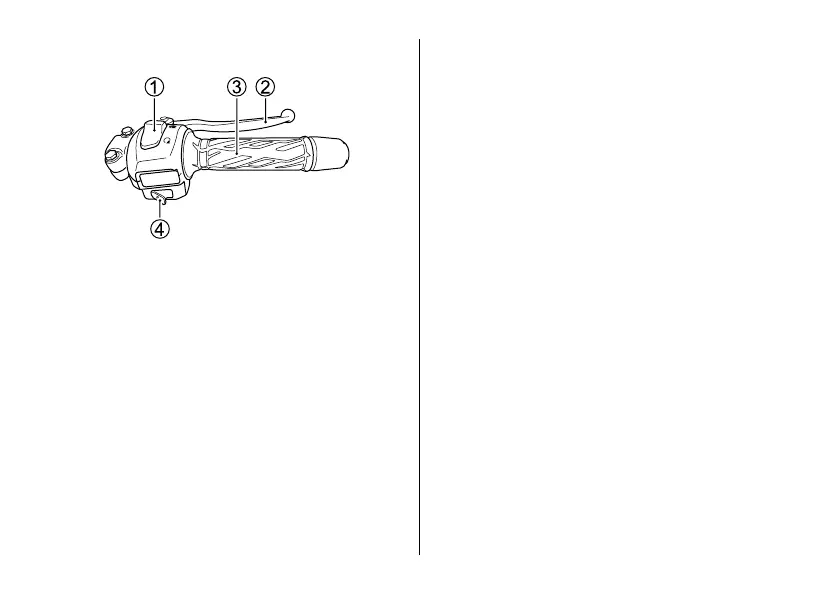

RIGHT HANDLEBAR
ENGINE STOP SWITCH 1
“” position
The ignition circuit is off. The engine cannot
start or run.
“” position
The ignition circuit is on and the engine can
run.
FRONT BRAKE LEVER 2
The front brake is applied by squeezing the
brake lever gently toward the throttle grip.
This motorcycle is equipped with a disk
brake system and excessive pressure is not
required to slow the machine down properly.
The brake light will be lit when the lever is
squeezed inward.
THROTTLE GRIP 3
Engine speed is controlled by the position of
the throttle grip. Turn it towards you to
increase engine speed. Turn it away from
you to decrease engine speed.
ELECTRIC STARTER SWITCH “” 4
Push in the electric starter switch to operate
the starter motor. With the main switch knob
in the “ (ON)” position, the transmission in
neutral and push the electric starter switch
to start the engine.

Suzuki GSX-R150 Specifications

General

Engine Type	4-Stroke, Liquid-Cooled, DOHC
Displacement	147.3 cc
Bore x Stroke	62.0 mm x 48.8 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	6-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Fuel Tank Capacity	11.0 L
Overall Width	700 mm
Seat Height	785 mm
Curb Weight	131 kg
Final Drive	Chain
Lubrication System	Wet sump
Front Brake	Disc brake
Rear Brake	Disc brake
Front Tire	90/80-17
Rear Tire	130/70-17
Overall Length	2, 020 mm
Overall Height	1075 mm
Ground Clearance	160 mm
Wheelbase	1300 mm
