Suzuki GSX-R150 User Manual

2-7
IGNITION SWITCH/MAIN SWITCH
(Ignition Switch Model)

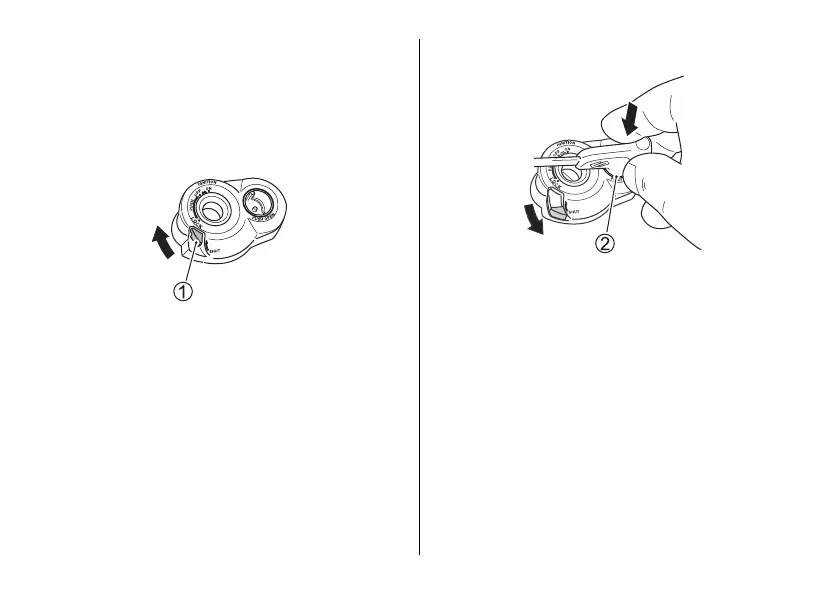

To close the ignition key-hole shutter:
Push the key-hole shutter knob 1 to close
the key-hole shutter.
To open the ignition key-hole shutter:
1. Match the ignition key head to the hole at
the right of the ignition switch.
2. Push the key to the bottom of the key-
hole shutter opener 2.
NOTE:
• Apply anti-freeze chemicals when atmo-
spheric temperature becomes less than
freezing point to avoid ignition key-hole
shutter freezing.
• Spray anti-corrosion chemicals to the
key-hole shutter to avoid shutter corrosion
trouble

Suzuki GSX-R150 Specifications

General

Engine Type	4-Stroke, Liquid-Cooled, DOHC
Displacement	147.3 cc
Bore x Stroke	62.0 mm x 48.8 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	6-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Fuel Tank Capacity	11.0 L
Overall Width	700 mm
Seat Height	785 mm
Curb Weight	131 kg
Final Drive	Chain
Lubrication System	Wet sump
Front Brake	Disc brake
Rear Brake	Disc brake
Front Tire	90/80-17
Rear Tire	130/70-17
Overall Length	2, 020 mm
Overall Height	1075 mm
Ground Clearance	160 mm
Wheelbase	1300 mm
