Suzuki GSX-R600 2007 User Manual

CHASSIS 8-71

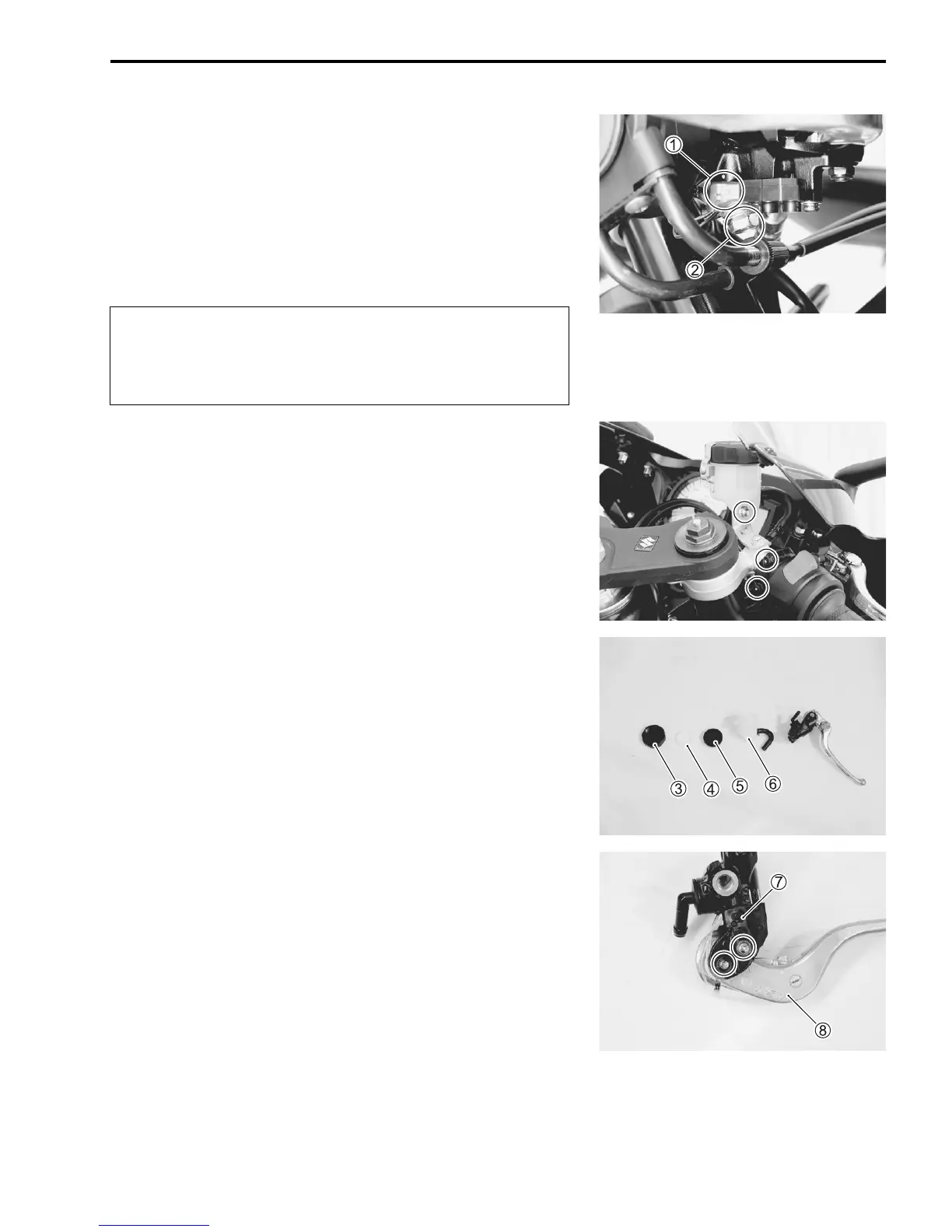

MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Drain the brake fluid. (8-66)
• Disconnect the front brake light switch lead wires 1.
• Place a rag underneath the union bolt 2 on the master cylin-
der to catch any split brake fluid. Remove the union bolt and
disconnect the brake hose.

• Remove the master cylinder by removing the master cylinder
bolts.
• Remove the reservoir cap 3, insulator 4, diaphragm 5 and
reservoir tank 6.
• Remove the brake switch 7 and brake lever 8.
Immediately and completely wipe off any brake fluid
contacting any part of the motorcycle. The fluid reacts
chemically with paint, plastics and rubber materials,
etc. and will damage them severely.

Suzuki GSX-R600 2007 Specifications

General

Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	180/55ZR17M/C (73W), tubeless
Curb Weight	187 kg (412 lbs)
Lubrication	Wet sump
Final Drive	Chain
Starter	Electric
Engine Type	4-stroke, liquid-cooled, DOHC
Rear Suspension	Link type, coil spring, oil damped
Overall Length	2040 mm
Overall Width	715 mm
Seat Height	810 mm
Ground Clearance	130 mm
Wheelbase	1400 mm
Fuel Tank Capacity	17.0 L (4.5 US gallons)
