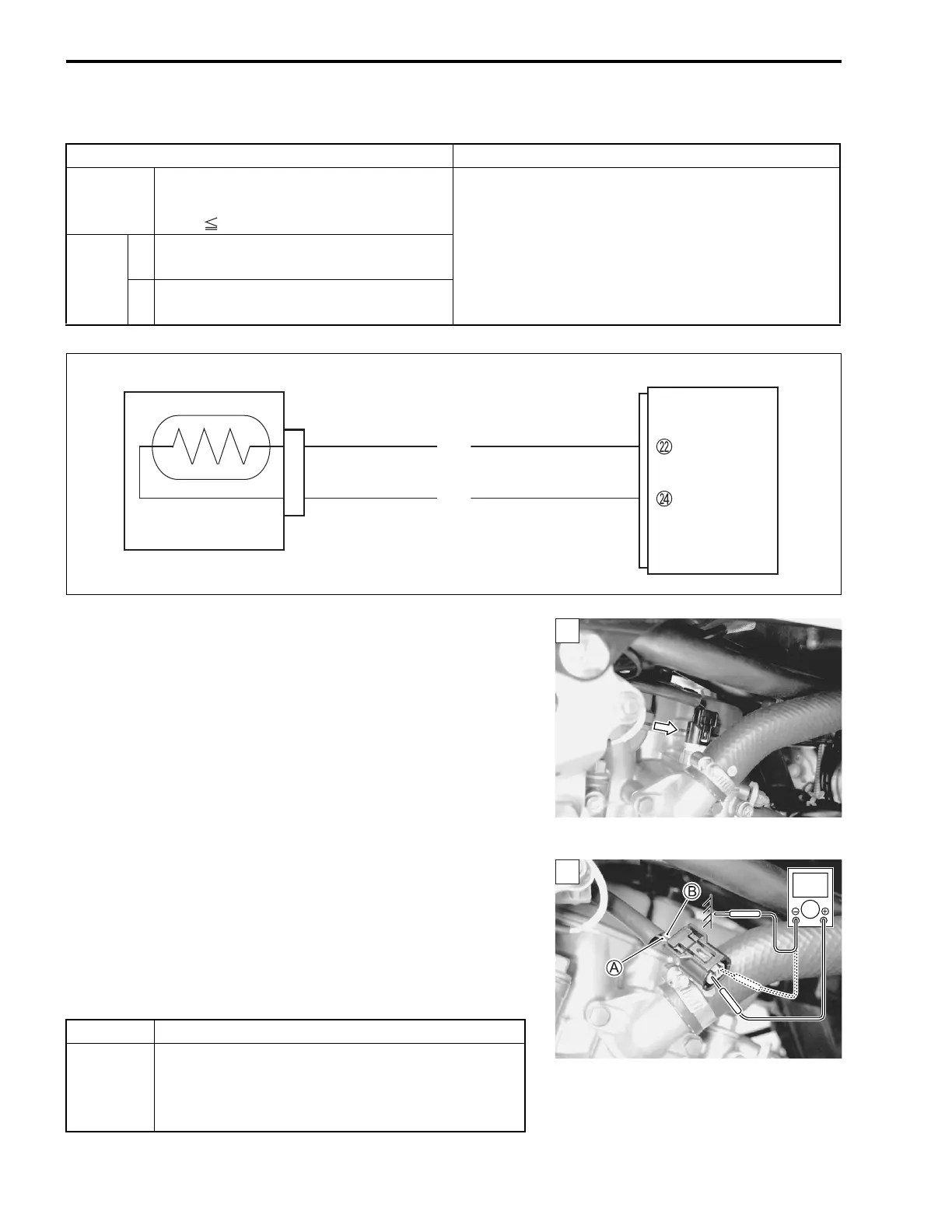

4-42 FI SYSTEM DIAGNOSIS
C15 (P0115-H/L) ECT SENSOR CIRCUIT MALFUNCTION
INSPECTION
Step 1 (When indicating C15:)
1) Turn the ignition switch OFF.
2) Check the ECT sensor coupler for loose or poor contacts.
If OK, then measure the ECT sensor voltage at the wire side
coupler.
3) Disconnect the coupler and turn the ignition switch ON.
4) Measure the voltage between B/Bl wire terminal
A and
ground.
5) If OK, then measure the voltage between B/Bl wire terminal
A and B/Br wire terminal
B.
' ECT sensor voltage: 4.5 5.5 V
(
+ B/Bl
- Ground)
(
+ B/Bl
- B/Br)
& 09900-25008: Multi-circuit tester set
1 Tester knob indication: Voltage (2)
Is the voltage OK?
DETECTED CONDITION POSSIBLE CAUSE
C15 Output voltage is not within the following
range.
0.1 V Sensor voltage < 4.8 V
ECT sensor circuit open or short
ECT sensor malfunction
ECM malfunction
P0115
H
Sensor voltage is higher than specified
value.
ECT sensor circuit open or ground circuit open
ECT sensor circuit shorted to ground
L
Sensor voltage is lower than specified
value.
YES Go to Step 2.
NO
Loose or poor contacts on the ECM coupler
(terminal
L or
N).
Open or short circuit in the B/Bl wire or B/Br
wire
ECM
E2
ECT
B/Br
ECT sensor
B/BI
1
V
1
