CHASSIS 7-75

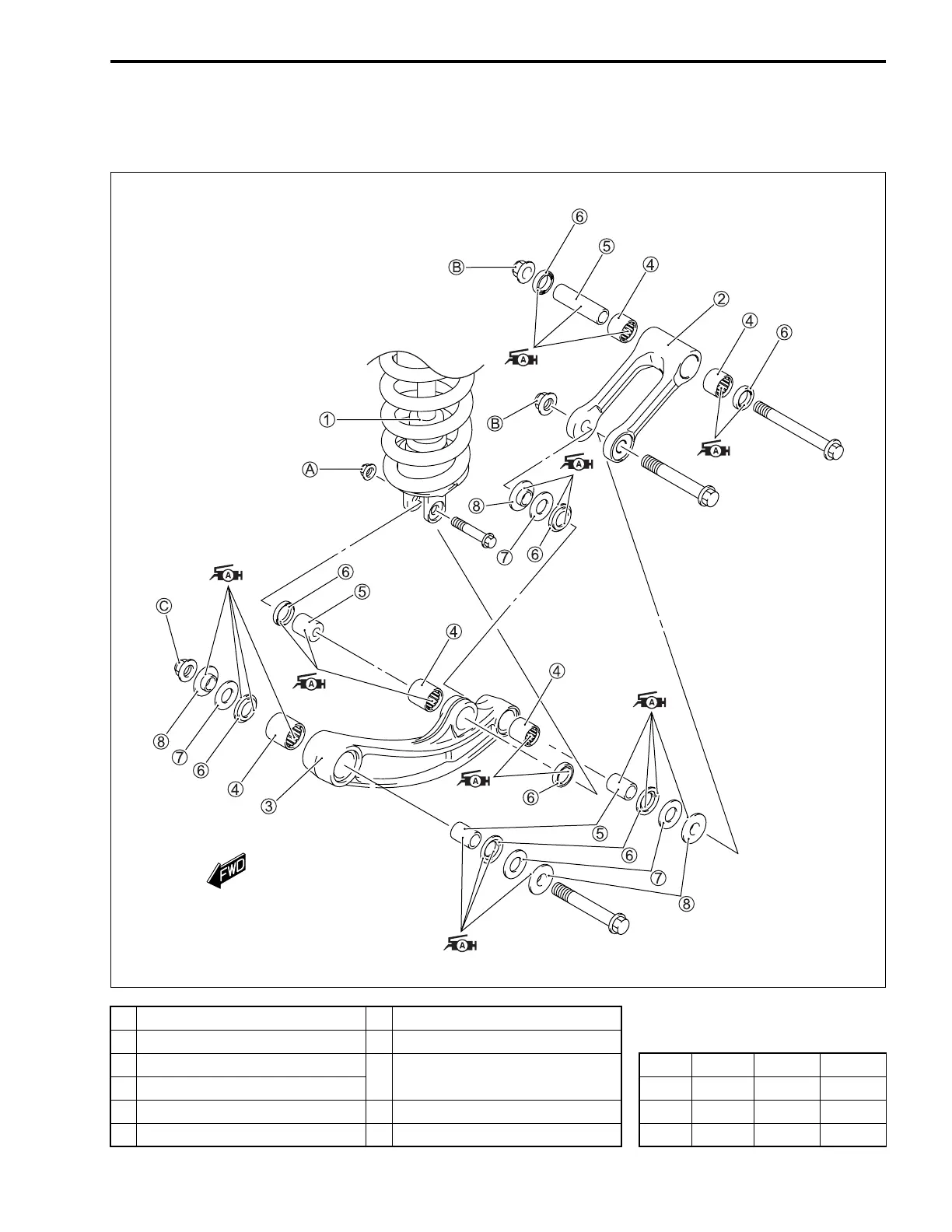

CUSHION ROD AND CUSHION LEVER
CONSTRUCTION
1 Rear shock absorber
7 Washer
2 Cushion rod
8 Collar "
3 Cushion lever
A
Rear shock absorber mount-
ing nut
ITEM N·mkgf-mlb-ft
4 Bearing
A 60 6.0 43.5
5 Spacer
B Cushion rod nut
B 78 7.8 56.5
6 Dust seal
C Cushion lever nut
C 78 7.8 56.5
