7-75
INSPECTION AND MAINTENANCE
80SS5-01E
52RM70250

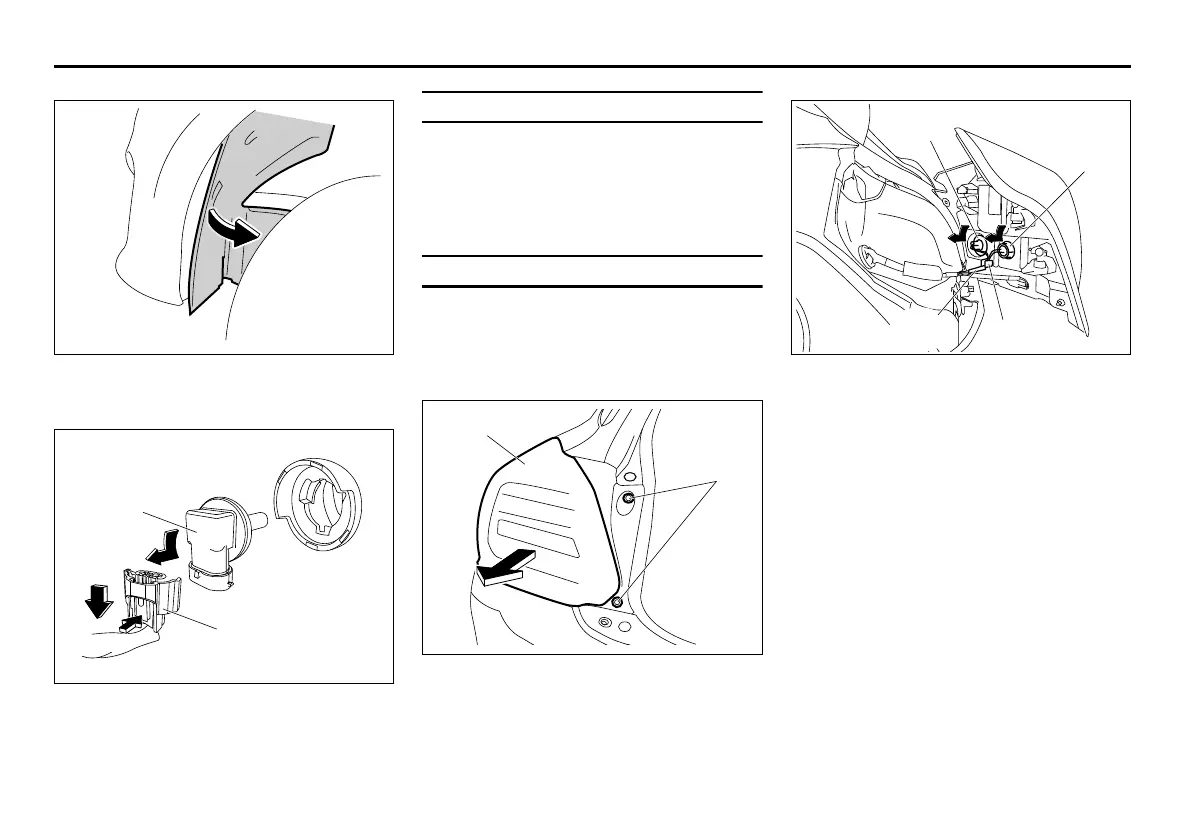

3) Open the end of the cover inside the
fender.
52R70140
4) Disconnect the coupler (3) by pushing
the lock release. Turn the bulb holder
(4) counterclockwise and remove it.
Daytime running light (if equipped)
LED type
Since special procedures are required, it is
recommended that you take your vehicle
to an authorized SUZUKI dealer for light
replacement.
Rear combination light
For LED tail / brake light, it is recom-
mended that you take your vehicle to an
authorized SUZUKI dealer for light
replacement since special procedures are
required.
52RM70160
1) With the tailgate opened, remove the
bolts (1) and pull the light housing (2)
firmly to the rearward.
52RS70030
2) Remove the wire (3) from a clamp (4).
3) To remove the bulb holder of the rear
turn signal light (5) or the reversing light
(6) from the light housing, turn the
holder counterclockwise and pull it out.
(4)
(3)
(1)
(2)
(4)
(6)
(5)
(3)
