INSPECTION AND MAINTENANCE
69TB-01E
52RM70510.

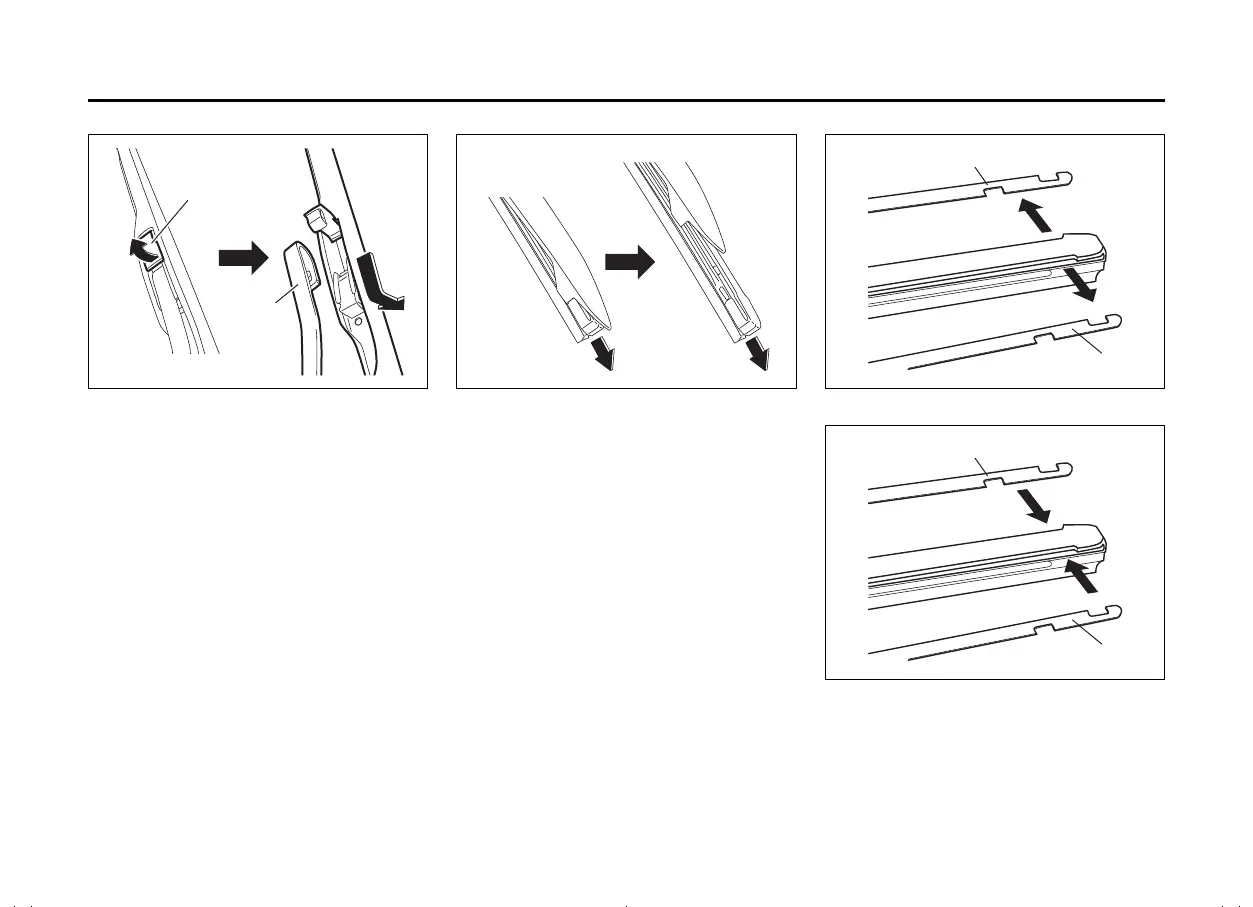

2) Open the lock (1), slide the wiper frame
and remove it from the arm (2) as
shown.
61MM0A211
3) Pull the locked end of the wiper blade
firmly to unlock the blade and slide the
blade out as shown.
52RM70520
61MM0B098
(3) Retainer
4) If the new blade is provided without the
two metal retainers (3), move them
from the old blade to the new one.
(1)
(2)
(3)
(3)
