INSPECTION AND MAINTENANCE
69TB-01E
61MM0A212
(A) Up
(B) Down
NOTE:
When you install the metal retainers (3),
make sure the direction of metal retainers
as shown in the above illustrations.
69T090430
(4) Locked end

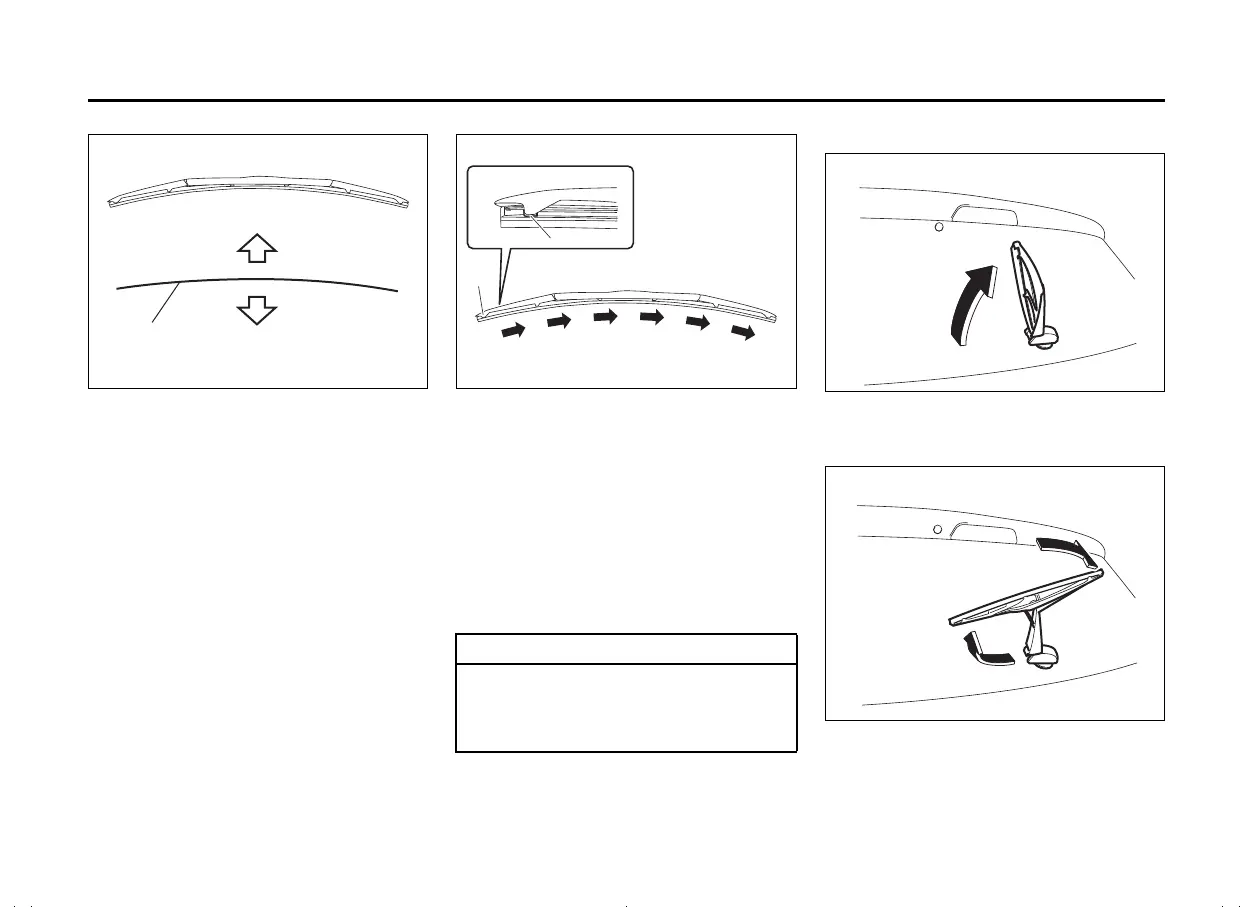

5) Install the new blade in the reverse
order of removal, with the locked end
(4) positioned toward the wiper arm.
Make sure the blade is properly
retained by all the hooks. Lock the
blade end into place.
6) Reinstall wiper frame to arm, making
sure that the lock lever is snapped
securely into the arm.
For rear wiper:
52RM70460
1) Hold the wiper arm away from the win-
dow.
52RM70490
2) Remove the wiper frame from the wiper
arm after rotating the wiper frame clock-
wise.
NOTICE
Fit the stopper side (5) of the wiper
blade in the driver’s seat side. Other-
wise, the wiper blade may be mis-
aligned while the wiper operates.
(4)
(4)
(5)
