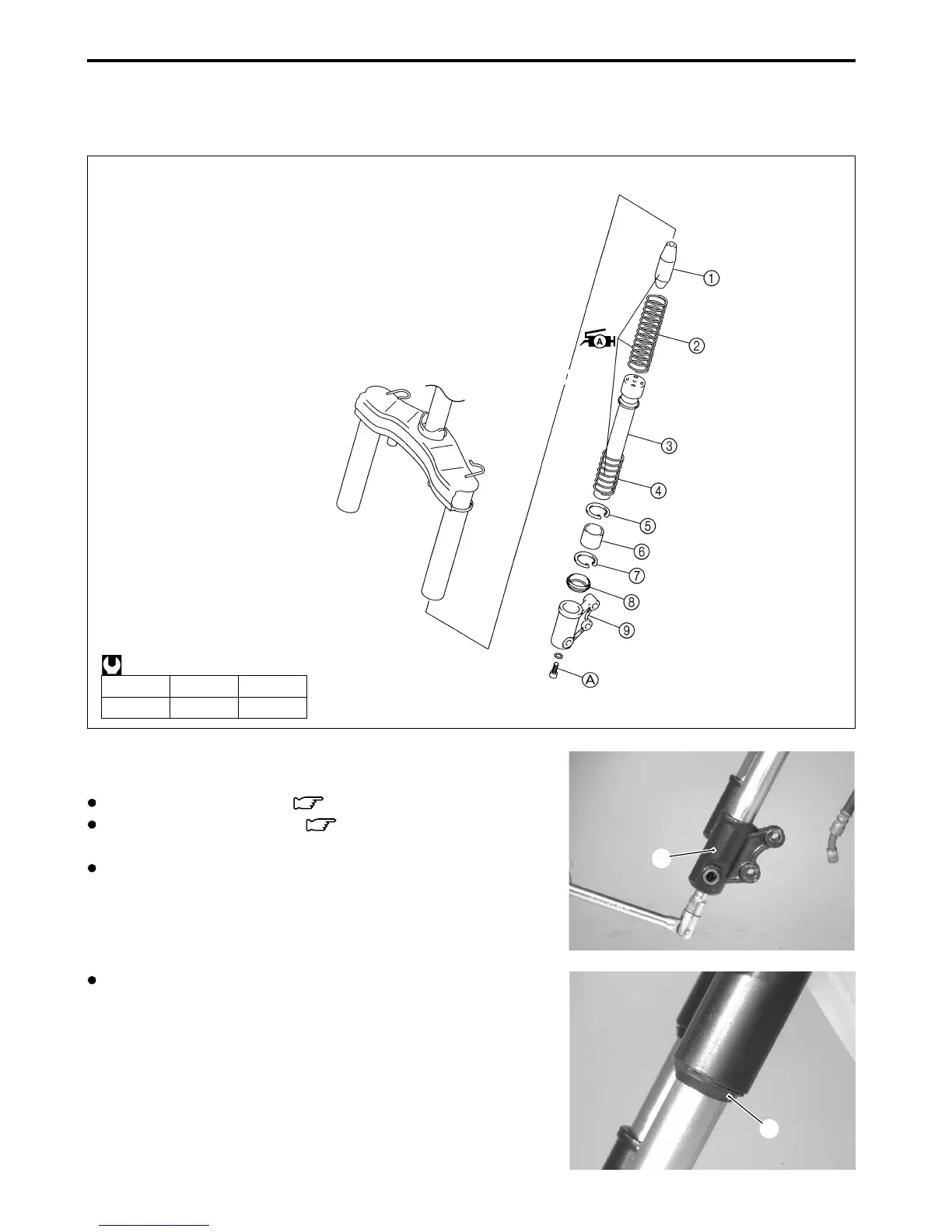

5-18 CHASSIS
FRONT SUSPENSION
CONSTRUCTION
1 Damper
2 Upper spring
3 Inner tube
4 Lower spring
5 Upper circlip
6 Bushing
7 Lower circlip
8 Dust seal
9 Brake caliper bracket
A Brake caliper bracket mounting bolt
ITEM N·m kgf-m
A 20 2.0
REMOVAL AND DISASSEMBLY
Remove the front wheel. ( 5-6)
Remove the brake caliper. ( 5-12)
Repeat following steps for each fork leg.
Remove the brake caliper bracket 1.
Remove the dust seal 2.
1
2
