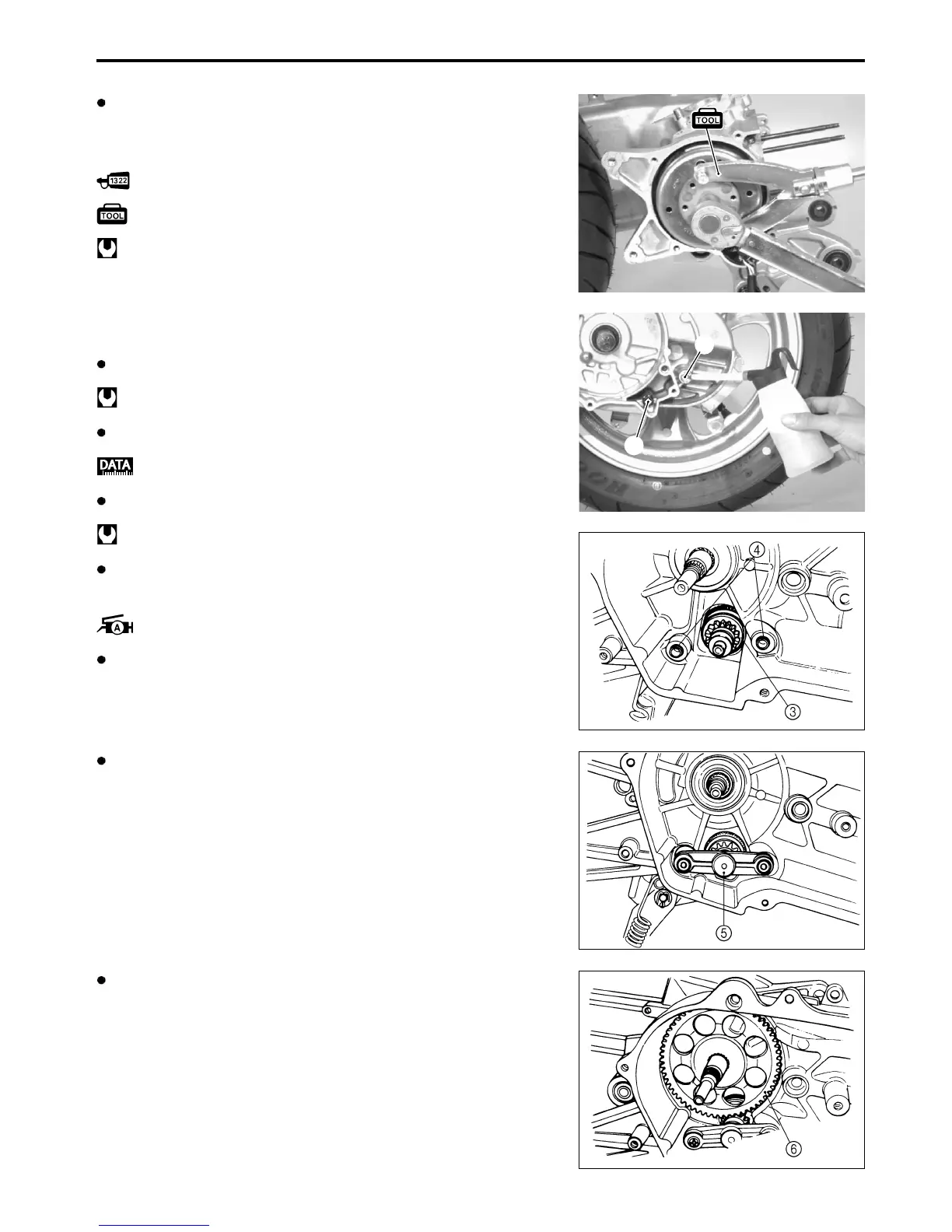

ENGINE 3-37
Apply THREAD LOCK SUPER “1322” to the generator rotor
nut and then tighten it to the specified torque using the spe-
cial tool.
99000-32110: THREAD LOCK SUPER “1322”
09930-40113: Rotor holder
Generator rotor nut: 40 N·m (4.0 kgf-m)
STARTER PINION AND STARTER GEAR
Tighten the final gear oil drain bolt 1 to the specified torque.
Final gear oil drain bolt: 5.5 N·m (0.55 kgf-m)
Add final gear oil until it flows from the final gear oil level hole 2.
Final gear oil quantity: 130 ml
Tighten the final gear oil level bolt to the specified torque.
Oil level bolt: 12 N·m (1.2 kgf-m)
Apply SUZUKI SUPER GREASE “A” onto the starter pinion
shaft and install the starter pinion gear assembly 3.
99000-25010: SUZUKI SUPER GREASE “A”
Insert the dowel pins 4.
Install the starter idle gear cap 5.
Install the starter driven gear 6 onto the left crankshaft.
NOTE:
The convex side of the starter driven gear should face out.
1
2

Suzuki UF50 Specifications

General

Starter	Electric and kick
Brakes Rear	Drum
Displacement	49 cc
Transmission	Automatic
Suspension Front	Telescopic
Suspension Rear	Swingarm
