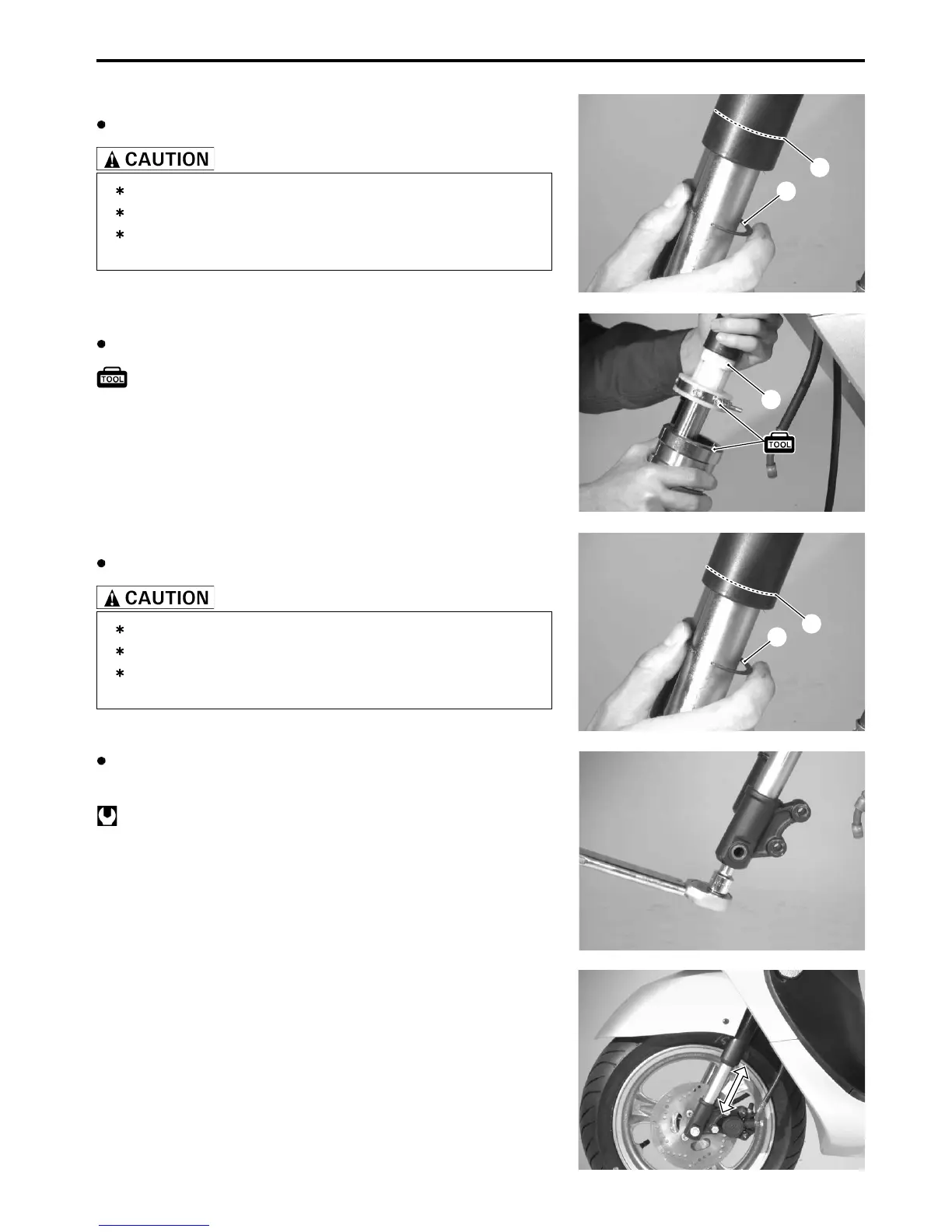

CHASSIS 5-21
UPPER CIRCLIP
Install the circlip 1 into the groove 2.
Replace the upper circlip with a new one.
The rounded side on the circlip must face upward.
After installing the upper circlip, make sure that it is
properly seated in the groove.
BUSHING
Install the lower bushing 3 using the special tool.
09940-52860: Front fork oil seal installer
LOWER CIRCLIP
Install the lower circlip 4 into the ring groove 5.
Replace the lower circlip with a new one.
The rounded side on the circlip must face upward.
After installing the lower circlip, make sure that it is
properly seated in the groove.
Tighten the brake caliper bracket mounting bolt to the speci-
fied torque.
Brake caliper bracket mounting bolt: 20 N·m (2.0 kgf-m)
NOTE:
Before tightening the front axle nut, move the front fork up and
down four or five times.
