5-10 CHASSIS

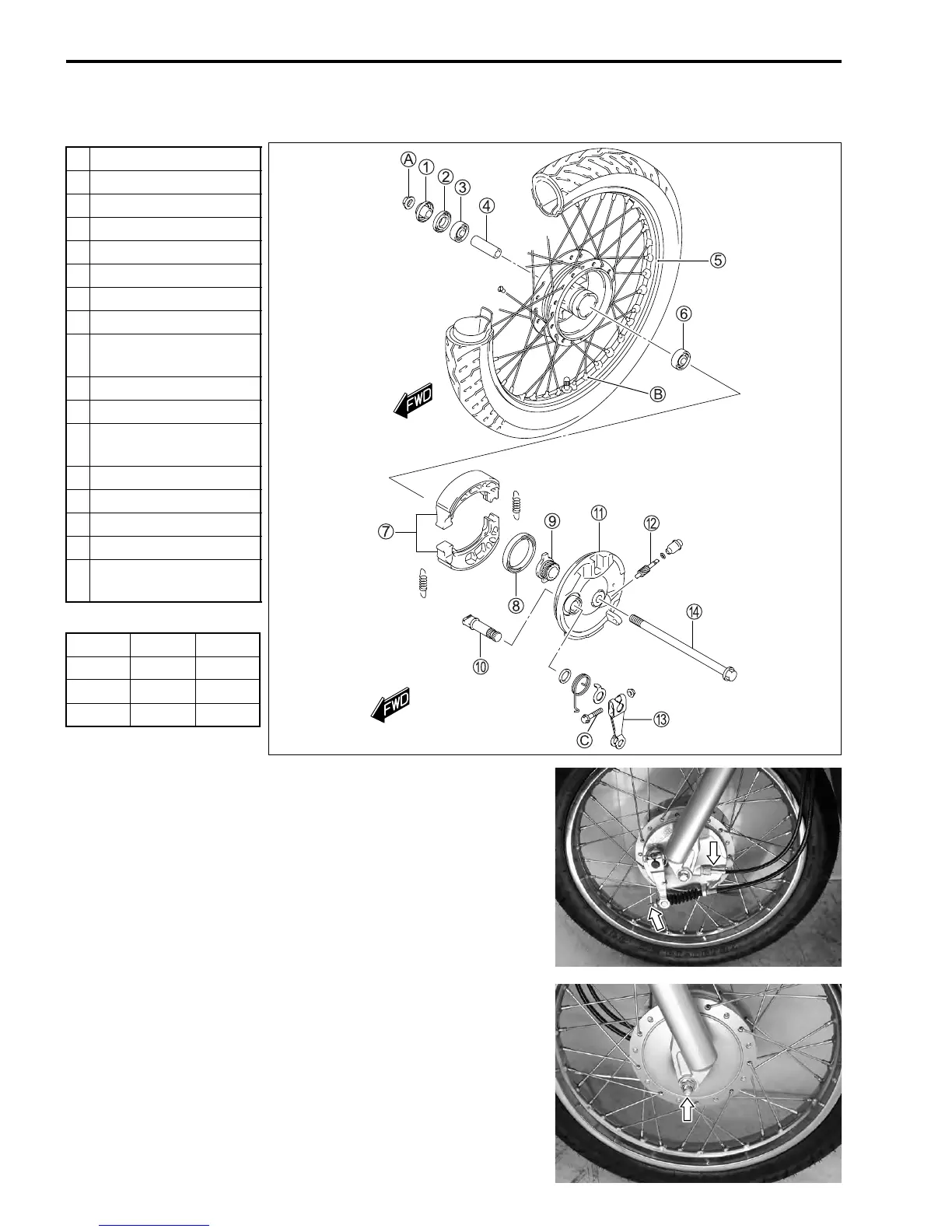

FRONT WHEEL AND FRONT BRAKE (UY125)
#
REMOVAL
• Remove the speedometer cable and front brake cable.
• Remove the axle nut.
• Support the motorcycle with the jack or wooden block.
• Remove the front axle and front wheel with front brake.
1 Collar
2 Dust seal
3 Bearing
4 Front wheel spacer
5 Front wheel
6 Bearing
7 Front brake shoe
8 Dust seal
9
Speedometer drive
gear
0 Front brake camshaft
A Front brake panel
B
Speedometer driven
gear
C Front brake cam lever
D Front axle
A Front axle nut
B Spoke nipple
C
Front brake cam lever
bolt
ITEM N·m kgf-m
A 42 4.2
B 4.5 0.45
C 80.8
