5-12 CHASSIS

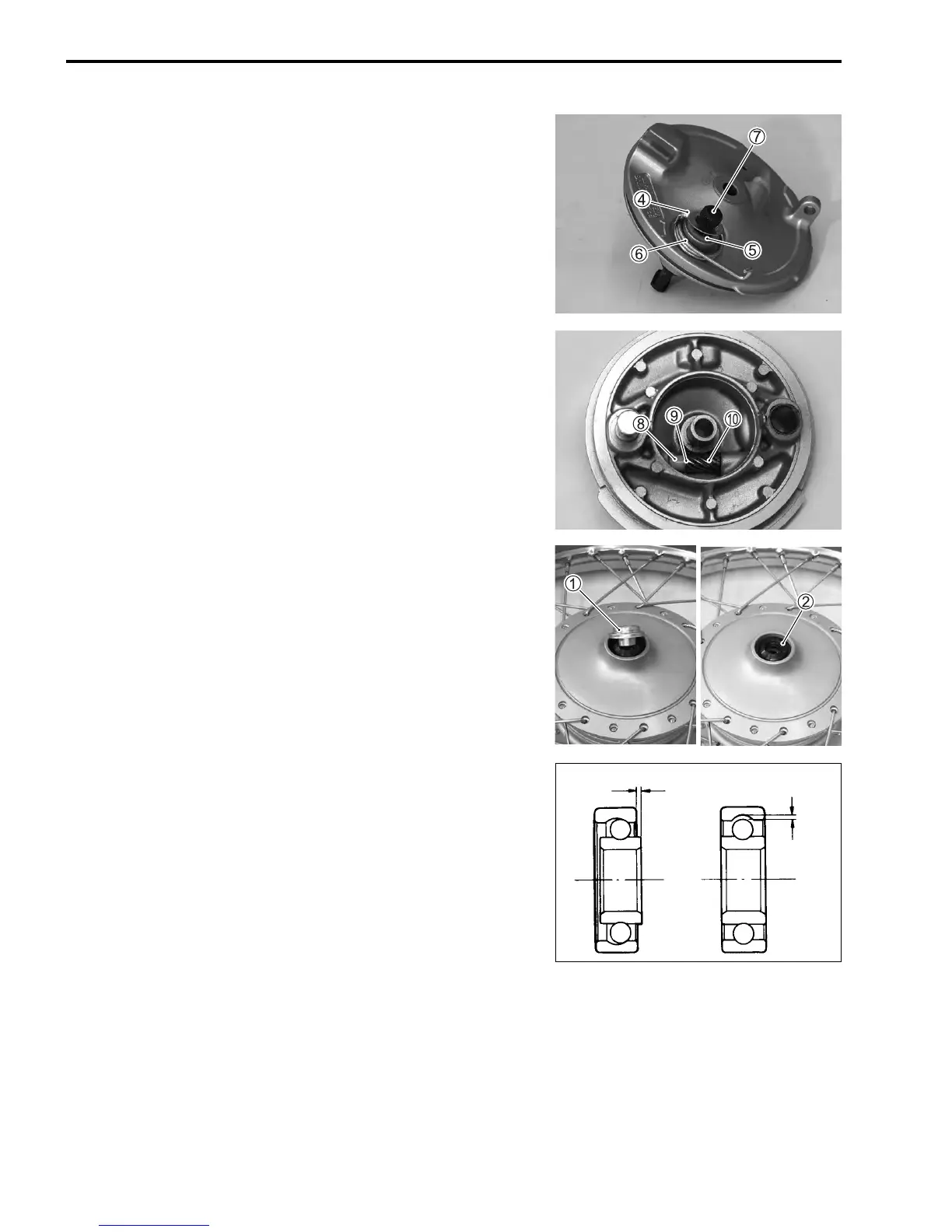

• Replace the indicator plate 4, dust seal 5, spring 6 and
brake camshaft 7.
• Pull out the pinion outer bush 8.
• Remove the washer 9 and pinion gear 0.
INSPECTION AND DISASSEMBLY
DUST SEAL
• Remove the spacer 1.
• Inspect the dust seal 2 for damage. If any defects are found,
replace the dust seal with a new one.
WHEEL BEARING
Inspect the play of wheel bearings by hand while they are in the
wheel.
Rotate the inner race by hand to inspect for abnormal noise and
smooth rotation. If any abnormal noise occurs, or rough move-
ment is noted, replace the wheel bearings with new ones.
Play
Play
