CHASSIS 5-47
REAR WHEEL AND REAR BRAKE

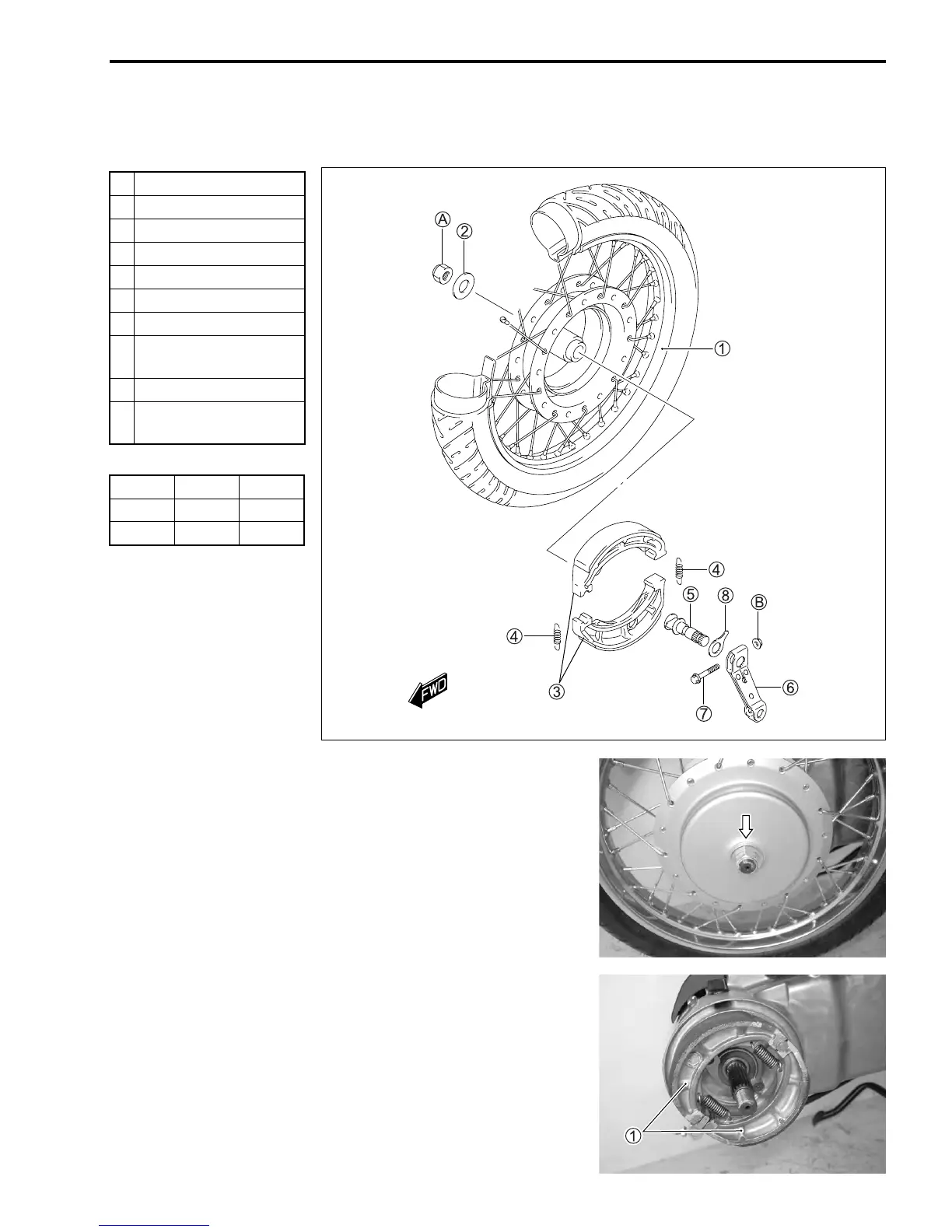

CONSTRUCTION
#
REMOVAL AND DISASSEMBLY
REAR WHEEL AND REAR BRAKE
• Support the motorcycle with the center stand.
• Remove the muffler. ("3-6)
• Remove the rear wheel.
• Remove the rear brake shoes 1.
1 Rear wheel
2 Washer
3 Brake shoe
4 Spring
5 Brake camshaft
6 Brake cam lever
7 Brake cam lever bolt
8
Brake lining wear indi-
cator
A Rear axle nut
B
Rear brake cam lever
nut
ITEM N·m kgf-m
A 120 12.0
B 11 1.1
