Suzuki VLR1800 Service Manual

Emission Control Devices: 1B-10
Heated Oxygen Sensor (O2S) Inspection
B822H11206002
Refer to “DTC “C44” (P0156) or “C64” (P0130): O2
Sensor (O2S) Circuit Malfunction (For E-02, 19, 24, 33)
in Section 1A (Page 1A-87)”.

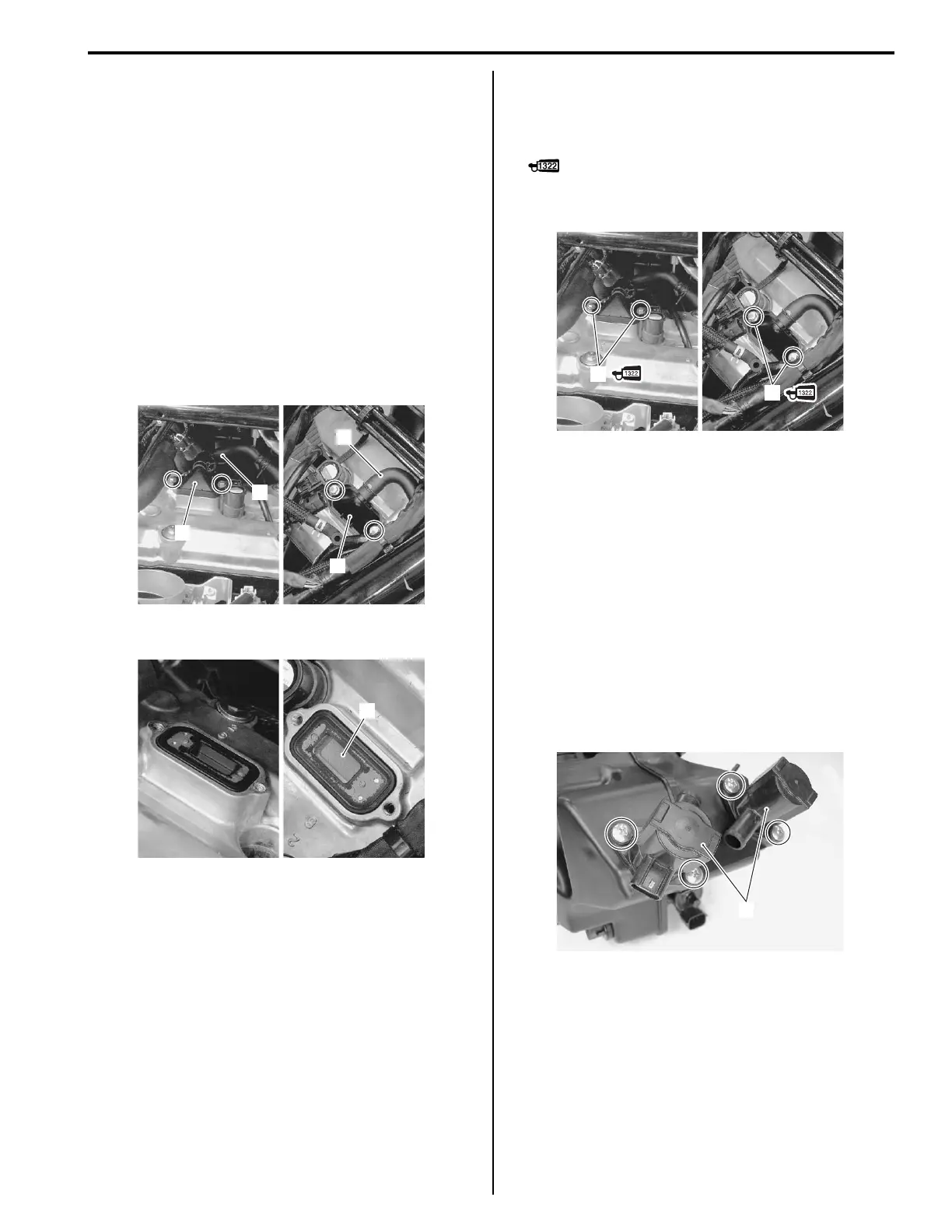

PAIR Reed Valve Removal and Installation
B822H11206003
Removal
1) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-8)”.
2) Remove the air cleaner chamber. Refer to “Air
Cleaner Chamber Removal and Installation in
Section 1D (Page 1D-6)”.
3) Disconnect the PAIR hoses (1) and remove the PAIR
reed valve covers (2).
4) Remove the PAIR reed valves (3).
Installation
Install the PAIR reed valve in the reverse order of
removal. Pay attention to the following points:
• Apply thread lock to the bolts (1) and tighten them.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
PAIR Control Solenoid Valve Removal and
Installation
B822H11206004
Removal
1) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-8)”.
2) Remove the air cleaner chamber. Refer to “Air
Cleaner Chamber Removal and Installation in
Section 1D (Page 1D-6)”.
3) Remove the PAIR control solenoid valves (1) (For E-
02, 19, 24, 33).
Remove the PAIR control solenoid valve (1) (For E-
03, 28).
1
2
1
2
I822H1120006-01
3
I822H1120007-01
1
1
I822H1120008-03
1
I822H1120009-01
