Engine Mechanical: 1D-46

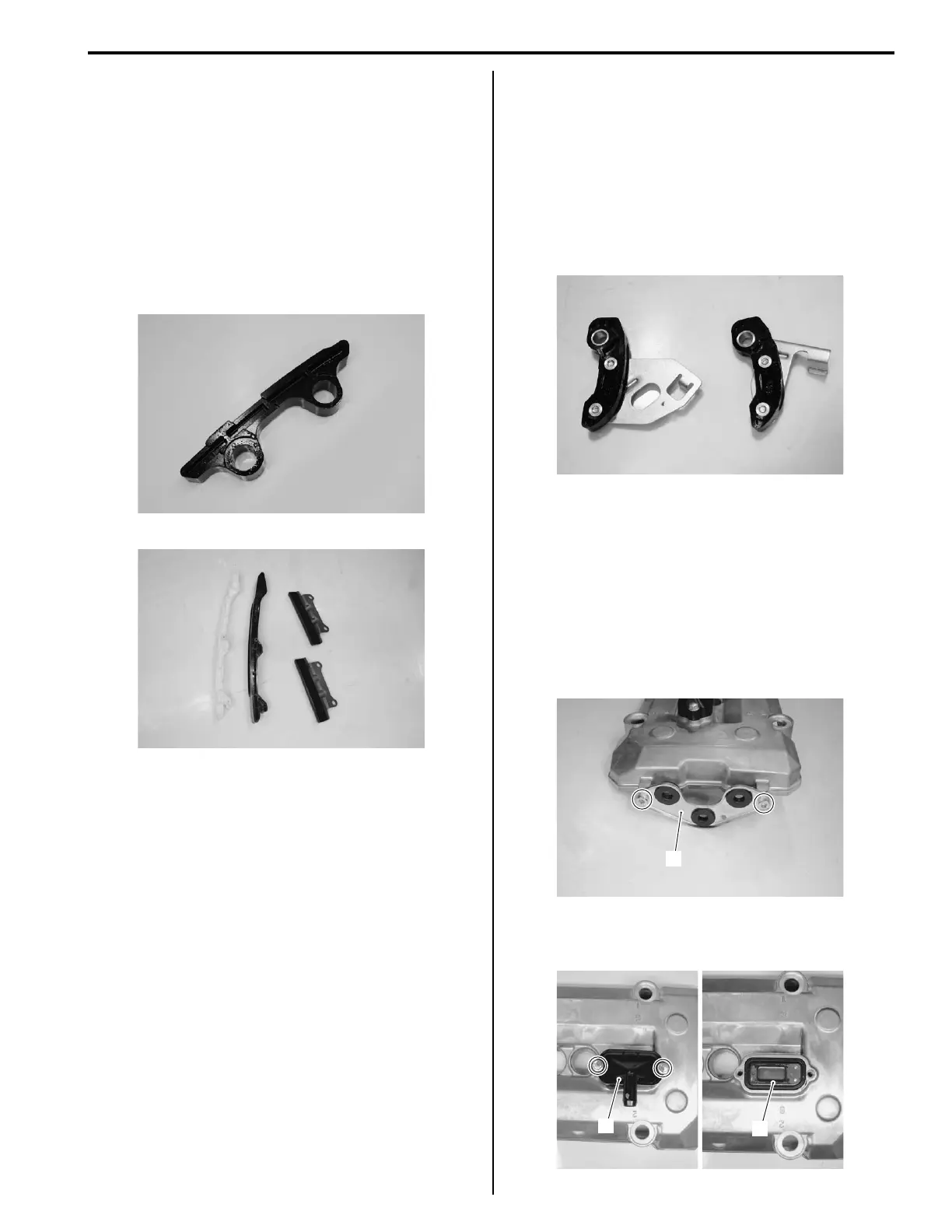

Cam Chain Guide No. 1, No. 2 and No. 3
Inspection
B822H11406014
Inspect the cam chain guides in the following
procedures:
1) Remove the cam chain guides No. 1, No. 2 and No.
3. Refer to “Engine Bottom Side Disassembly
(Page 1D-59)” and “Engine Top Side Disassembly
(Page 1D-25)”.
2) Check the contacting surface of the cam chain
guides. If it is worn or damaged, replace it with a new
one.
3) Install the cam chain guides No. 1, No. 2 and No. 3.
Refer to “Engine Bottom Side Assembly (Page 1D-
68)” and “Engine Top Side Assembly (Page 1D-30)”.
Cam Chain Tensioner No. 1 Inspection
B822H11406015
Inspect the cam chain tensioner in the following
procedures:
1) Remove the cam chain tensioner No. 1, front and
rear. Refer to “Engine Bottom Side Disassembly
(Page 1D-59)”.
2) Check the contacting surface of the cam chain
tensioner. If it is worn or damaged, replace it with a
new one.
3) Install the cam chain tensioner No. 1, front and rear.
Refer to “Engine Bottom Side Assembly (Page 1D-
68)”.
Cylinder Head Cover Disassembly and
Assembly
B822H11406048
Disassembly
1) Remove the head cover brackets (1), left and right.
2) Remove the PAIR read valve cover (2) and PAIR
read valve (3).
I822H1140327-01
I822H1140124-01
I822H1140326-01
1
I822H1140125-01
2
3
I822H1140126-01
