Clutch: 5C-6
Clutch Installation
B822H15306017

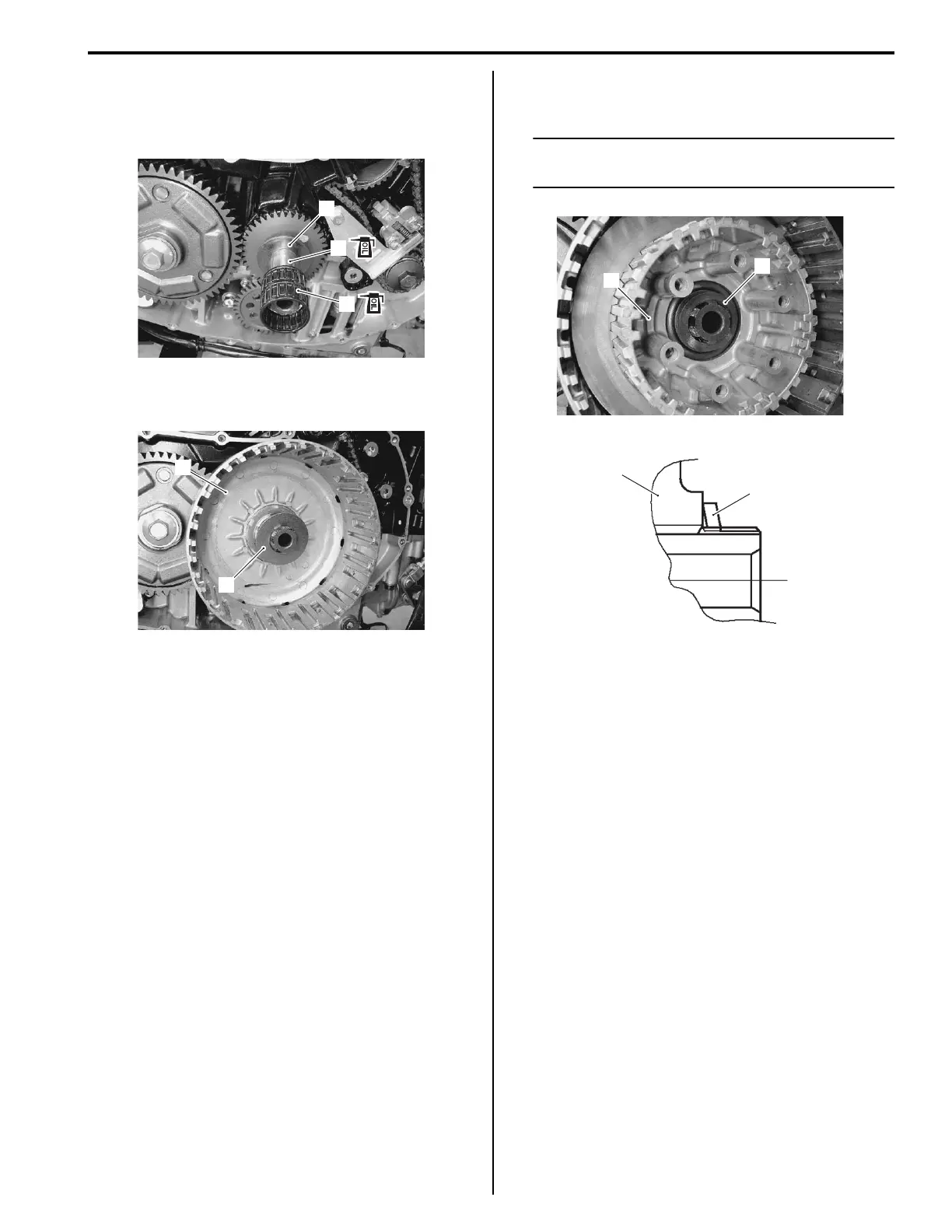

1) Install the washer (1), spacer (2) and bearing (3),
and apply engine oil to them.
2) Install the primary driven gear assembly (4) and
thrust washer (5).
3) Install the clutch sleeve hub (6) and spring washer
(7).
NOTE
The conical curve side of spring washer (7)
faces outside.
1
2
3
I822H1530016-01
5
4
I822H1530017-01
6
7
I822H1530018-01
6
7
I822H1530020-03
