Suzuki VLR1800 Service Manual

Manual Transmission: 5B-19
Gearshift Shaft Oil Seal / Bearing Removal and
Installation
B822H15206016
Removal

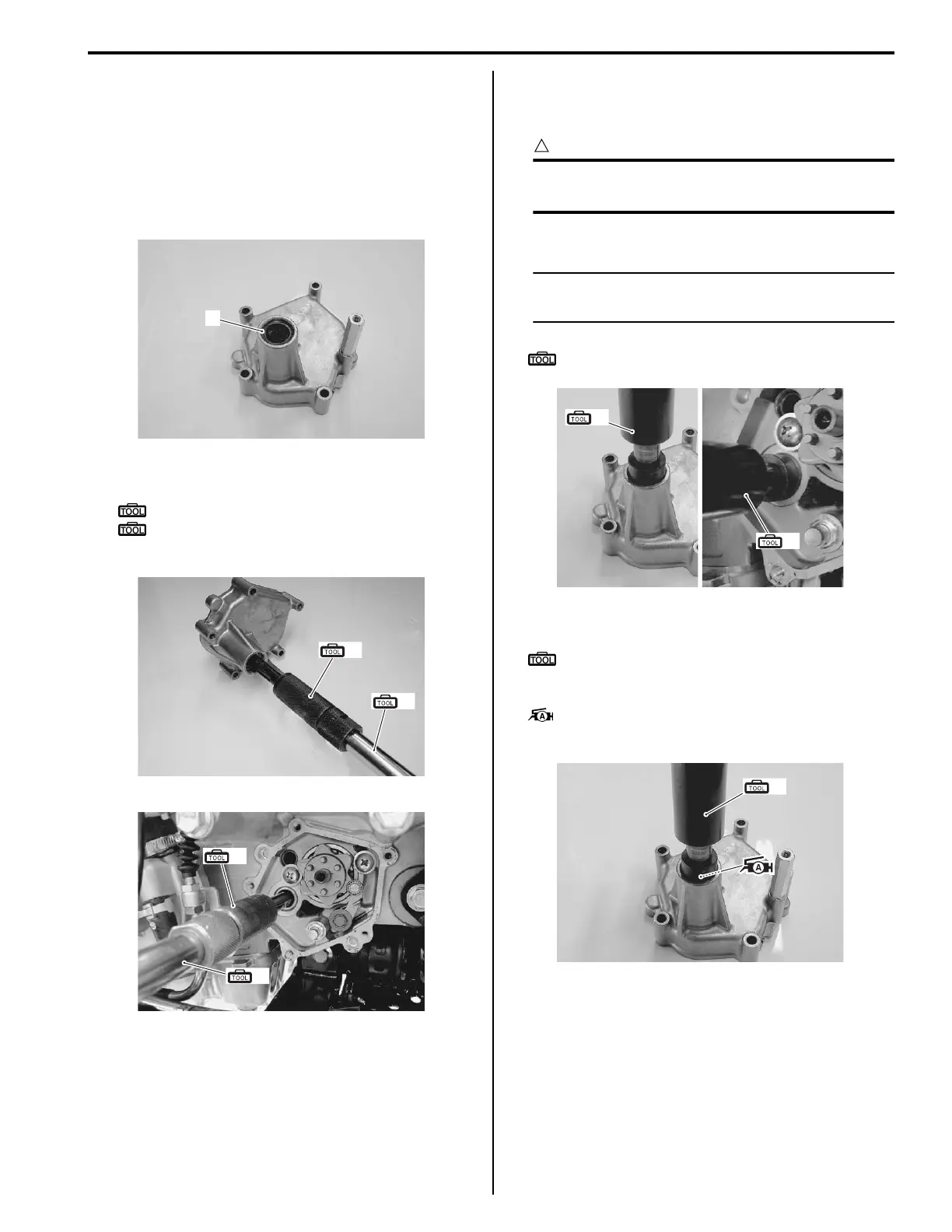

1) Remove the gearshift shaft cover. Refer to “Gearshift
Shaft / Gearshift Cam Plate Removal and Installation
(Page 5B-15)”.
2) Remove the gearshift shaft oil seal (1).
3) Remove the bearings (2) with the special tools.
Special tool
(A): 09921–20210 (Bearing remover)
(B): 09930–30104 (Rotor remover slide
shaft)
Installation
Install the oil seal and bearing in the reverse order of
removal. Pay attention to the following points:
CAUTION
!
The removed oil seal and bearings must be
replaced with new ones.
• Install the bearings with the special tool.
NOTE
The stamped mark side of the gearshift shaft
bearing faces outside.
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the oil seal with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
• Apply grease to the oil seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
1
I822H1520065-01
(A)
(B)
I822H1520069-01
(A)
(B)
I822H1520070-01
(A)
(A)
I822H1520071-01
(A)
I822H1520072-01
