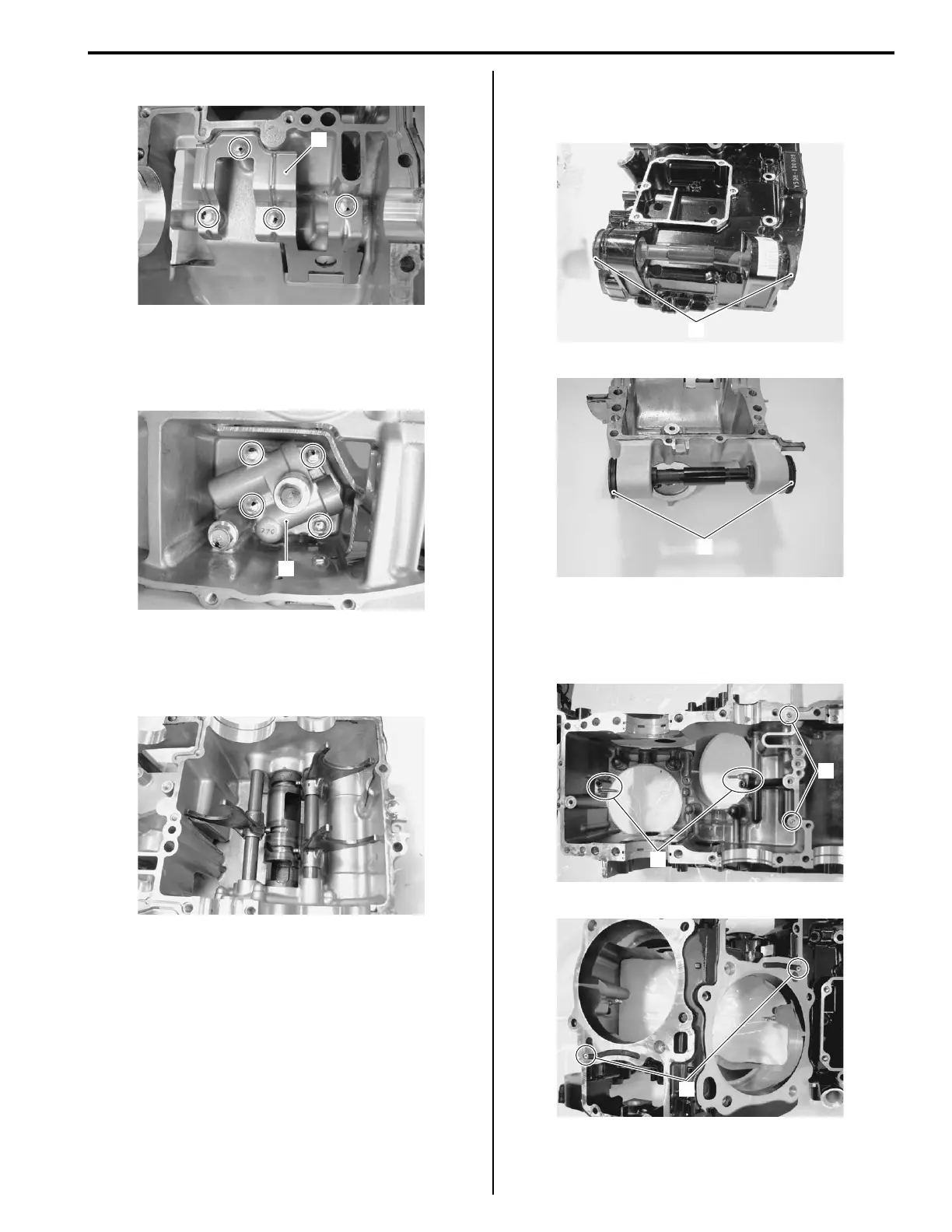

Engine Mechanical: 1D-66
4) Remove the oil separator (7).
Oil Pump
Remove the oil pump assembly (1). Refer to “Oil Pump
Removal and Installation in Section 1E (Page 1E-9)”.
Gearshift Fork / Gearshift Cam
Remove the gearshift component parts. Refer to
“Transmission Removal in Section 5B (Page 5B-3)”.
Engine Mount Bushing
Remove the upper and lower crankcase engine mount
bushings (1), if necessary.
Oil Jet
Remove the piston cooling jets (1) and oil jets (2) from
the upper crankcase.
7
I822H1140200-01
1
I822H1140201-01
I822H1140202-01
1
I822H1140203-01
1
I822H1140204-01
1
2
I822H1140205-01
2
I822H1140354-01
