Sven MS-2050 - Subwoofer Control Panel Overview

ENG
• Built-in FM radio and built-in clock
• Alphanumeric LED display
• USB flash port and SD card slot
• Two switchable inputs
• Remote control
• MUTE, SLEEP and ST-BY modes
• Wall mountable satellites
• Wooden (MDF) cabinets of the subwoofer
and satellites
Subwoofer control panels
a LED display
b MODE: shift button of timbre control modes
c /AUTO: Play/Pause (pressed short in the
Player mode);
Start/Stop auto scan (pressed short in the
Radio mode)
d INPUT/VOLUME -/+: the device switching on
(the knob rotation to any side from OFF mode);
the device switching off (the knob pressed long);
volume level control (the knob rotation to the
right/left);
switching of inputs and PC/AUX/FM/ MP3/
Bluetooth modes (the knob pressed short)
e LED backlight
f USB: port for a USB flash device* containing
МР3 and WAV audio files
g /СН+: next track (pressed short in the Player
mode);
next station** (pressed short in the Radio mode)
h /СН-: previous track (pressed short in the
Player mode);
previous station** (pressed short in the Radio mode)
i SD/MMC CARD: slot for SD/MMC cards*
containing МР3, WAV audio files
j ON/OFF: power switch
k Power cord
l RADIO ANT: radio antenna input jack

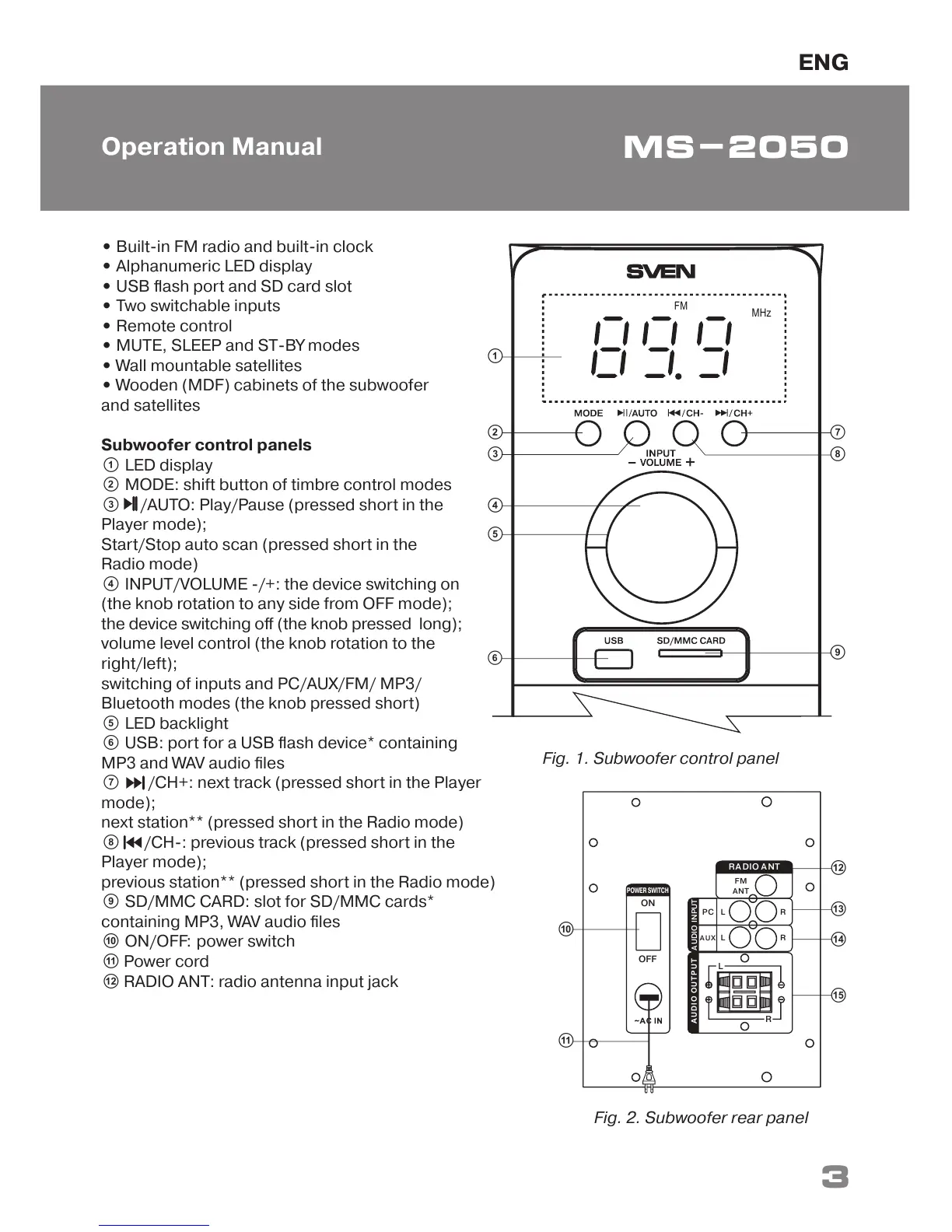

Fig. 1. Subwoofer control panel
